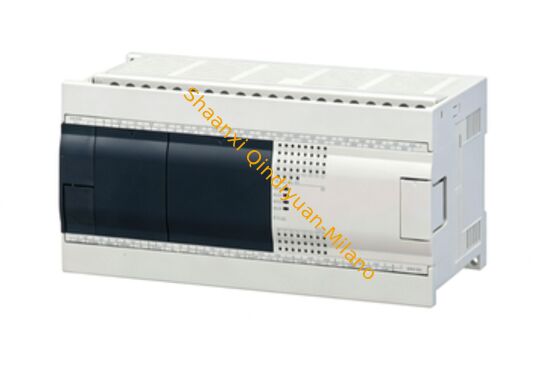

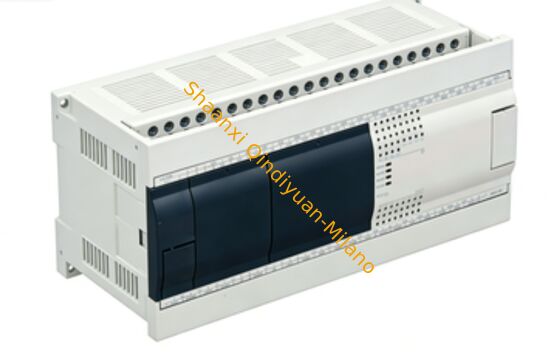

MITSUBISHI FX3U-128MR/ES-A PLC, FX3U Base Unit AC 100-240 V: 64 inputs DC 24 V; 64 relay outputs

1
MOQ
Negotiable
Price
MITSUBISHI FX3U-128MR/ES-A PLC, FX3U Base Unit AC 100-240 V: 64 inputs DC 24 V; 64 relay outputs
Features Gallery Product Description Chat Now
Features
Specifications
Powersupply: 24V DC / 110-240V AC
Programminglanguage: Ladder Logic, Function Block Diagram
Outputtype: Relay, Transistor, Analog Outputs
Communicationprotocol: Modbus, Profibus, Ethernet/IP
Operatingtemperature: -20°C To 60°C
Inputtype: Digital And Analog Inputs
Dimensions: Varies By Model, Typically Compact Size
Highlight:

Mitsubishi FX3U PLC base unit

,

FX3U-128MR/ES-A relay outputs

,

industrial PLC with 64 inputs
Basic Infomation
Place of Origin: china
Brand Name: MITSUBISHI
Model Number: FX3U-128MR/ES-A
Document: JY997D50301(E)-C.pdf
Payment & Shipping Terms
Packaging Details: pieces
Delivery Time: 5-8days
Payment Terms: T/T
Product Description

MITSUBISHI FX3U-128MR/ES-A PLC Product Introduction (ECER Standard, English Only)

1. Product Overview

FX3U-128MR/ES-A is high I/O density CPU base unit of Mitsubishi MELSEC-F FX3U PLC series, designed for medium-scale sequential automation control. It adopts AC 100–240V universal power supply, configured with 64-point DC24V opto-coupler isolated digital inputs and 64-point mechanical relay outputs, reaching total 128 built-in I/O terminals. The unit collects field sensor, proximity switch and limit signal, executes compiled logic program to control solenoid valves, contactors, indicator lights and various low-power actuators. Supporting FX3U full-series extension modules including digital I/O, analog conversion, temperature detection and special positioning modules, it expands control capacity to satisfy complicated production line and multi-station equipment control demands.

2. Core Advantages & Key Features

  • High-density I/O Layout: 128 onboard I/O reduces external expansion usage, optimizes electrical cabinet space arrangement for medium automation equipment.
  • Universal Relay Output: Mechanical relay contact supports AC/DC mixed load driving, no extra intermediate relay required for conventional switching control, wide voltage adaptability for on-site loads.
  • Powerful Operation Performance: 0.065μs per basic instruction, maximum 64K-step program memory with battery backup to preserve program and internal data after power outage.
  • Flexible Expansion Function: Max local extended I/O up to 256 points; total system I/O expands to 384 points via CC-Link remote bus, compatible with all FX3U dedicated special modules.
  • Rich Communication Expandability: Standard onboard RS422 programming port; optional RS485/RS232 communication boards to realize Modbus RTU, CC-Link and other mainstream industrial bus connection.
  • Wide-range AC Power Input: AC100~240V wide voltage design effectively resists industrial grid voltage fluctuation, equipped with built-in overcurrent and short-circuit protection.
  • International Certification & ECER Compliance: Certified with CE and UL, conforming to EN61131-2 and EN61000 EMC standards, meets EU ECER safety requirements for machinery export and whole-machine certification.
  • Standard DIN Rail Mount: 35mm DIN rail installation, detachable screw terminal block for convenient field wiring and daily maintenance.

3. Technical Specifications

表格



Item Parameter Details
Brand MITSUBISHI ELECTRIC
Model FX3U-128MR/ES-A
Category FX3U CPU Base Unit
Power Supply AC 100~240V, 50/60Hz
Rated Power Consumption Approx 65VA
Digital Input 64 Points, DC24V, Opto-isolated
Digital Output 64 Points, Mechanical Relay, Rated 2A per single contact
Total Built-in I/O 128 Points
Max Local Expandable I/O 256 Points
Max Whole-system I/O(CC-Link) 384 Points
Program Storage 64K Steps, RAM with battery data backup
Default Communication Port RS422
Optional Communication RS485 / RS232 expansion board
Dimension(W×H×D) 350mm × 90mm × 86mm
Net Weight 1.38kg
Operating Environment 0℃ ~ +55℃, 10%~90% non-condensing RH, IP10 (cabinet internal installation)
Mounting Type Standard 35mm DIN Rail

4. Application Industry & Warehouse Description

Applicable Industries & Application Scenarios

  1. Automatic Packaging Production Line: Multi-station carton forming, filling, sealing and palletizing equipment control
  2. Food & Beverage Automation: Multi-channel material batching, bottle conveying and capping assembly line
  3. Textile Machinery: Full-set loom, cloth cutting and post-processing automated equipment
  4. Environmental & Water Treatment: Multi-pump group control, chemical dosing and sewage treatment system
  5. General Heavy-duty Automation: Hydraulic pressing equipment, multi-station fixture and assembly machine

Warehouse Storage Specification

Original export carton packaging with inner anti-collision foam; products stored in constant-temperature dry warehouse on damp-proof plastic pallets, isolated from corrosive gas and humid environment. Every unit undergoes strict factory power-on inspection before delivery, in stock for spot supply and large-batch customized order.

5. ECER Compliance Statement

This FX3U-128MR/ES-A PLC satisfies EU ECER industrial control product safety and EMC regulatory requirements with complete certification documents, supporting European customs clearance and complete machine certification matching
