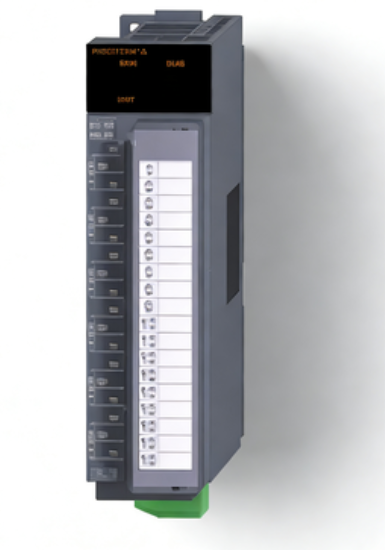

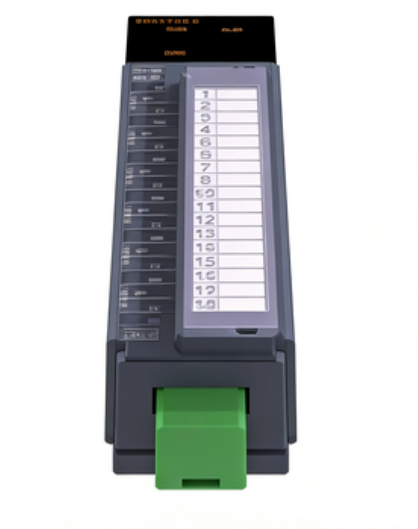

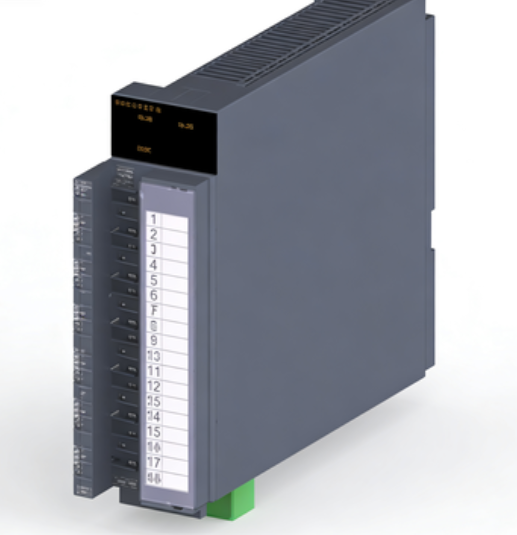

MITSUBISHI Q64AD2DA PLC Q Series Analog Module 4in- 2outputs Current

The Q64AD2DA is a combined analog input & output intelligent module for Mitsubishi MELSEC-Q Series PLC systems. It integrates 4-channel A/D conversion (Analog Input) and 2-channel D/A conversion (Analog Output) within one single module. It collects continuous analog signals (4~20mA, 0~20mA, -10~10V) from field transmitters such as temperature, pressure, flow sensors, converts analog signals into digital data for PLC processing. Meanwhile, it converts digital commands from PLC back into analog current/voltage signals to control actuators like control valves, variable drives and regulators. It simplifies system configuration for process control and reduces the total number of slots occupied on the PLC base unit.

• Combined 4 input + 2 output channels in one module, saves PLC rack space and lowers hardware cost
• Supports both current (4-20mA / 0-20mA) and voltage analog signals for flexible field wiring
• Two optional resolution modes: Normal Mode (1/4000) & High Resolution Mode (up to 1/16000) for precise measurement
• Independent signal range configuration for each channel, suitable for mixed multiple sensor types
• Built-in scaling, shift function and data logging (max.10,000 points per channel)
• Supports Online Module Change; replace module without stopping the whole control system
• Short-circuit protection for analog output circuits, stable operation under industrial noise environment
• Compatible with GX Works2 / GX Works3 configuration software for easy parameter setup and monitoring
• Certified CE, UL, meets global industrial automation standards

• Water & wastewater treatment
• HVAC & central air-conditioning
• Petrochemical machinery
• Packaging equipment
• Printing machinery
• Energy power monitoring
• Plastics injection machinery
• Food processing automation
• Intelligent warehouse
• Building automation

1. Collect temperature, pressure, flow, liquid level signals from field transmitters
2. Output analog control signals to regulating valves, frequency inverters and electric actuators
3. Closed-loop PID process control for continuous production lines
4. Environmental monitoring and energy data acquisition
5. Hydraulic & pneumatic system proportional valve control

• Condition: Brand New Original Mitsubishi
• Stock status: Please send inquiry for availability & lead time
• Warranty: 12 months
• We supply full range Mitsubishi Q series PLC CPU, power supply, I/O modules and analog modules for one-stop sourcing
