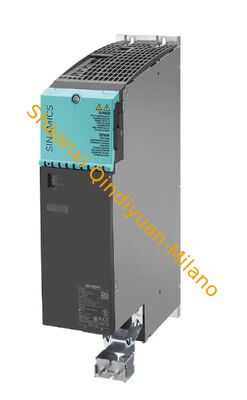

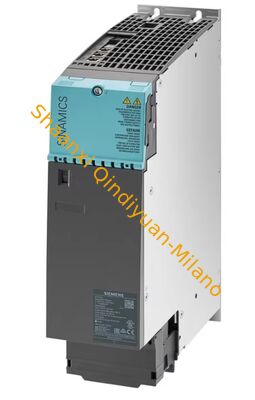

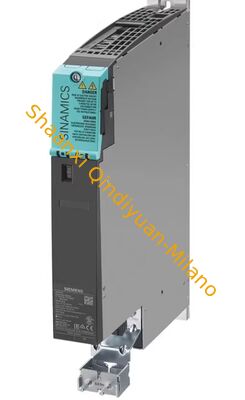

Siemens 6SL3120-1TE21-0AA4 Single Motor Module, Input: 600 V DC, Output: 3-phase 400 V AC, 9 A, Booksize, Internal Air Cooling, includes DRIVE-CLiQ cable

1pcs
MOQ
Negotiable
Price
Siemens 6SL3120-1TE21-0AA4 Single Motor Module, Input: 600 V DC, Output: 3-phase 400 V AC, 9 A, Booksize, Internal Air Cooling, includes DRIVE-CLiQ cable
Features Gallery Product Description Chat Now
Features
Specifications
Memory: 125 KB
Power Supply Voltage: 100 – 240VAC.
Manufacturer: Siemens
Power_Consumption: 5 W
Part No: 5009-421
Number_of_Inputs: 14
Model: S7-1200
Supply Voltage Type: AC
Operating_Temperature_Range: -20°C To 60°C
Color: Normal
Mpu Points: 12 (8DI + 4DO)
Part Type: Sysmac CPM2A
Output Typt: Relay
Weight: 0.3 Kg
Points: 40 (24DI+16DO)
Highlight:

Siemens booksize motor module

,

600V DC motor module

,

DRIVE-CLiQ motor module
Basic Infomation
Place of Origin: Germany
Brand Name: Siemens
Model Number: 6SL3120-1TE21-0AA4
Document: SINAMICS_G120-FW4_7-SP10_EN...1).pdf
Payment & Shipping Terms
Delivery Time: 1week
Payment Terms: T/T
Supply Ability: 20PCS 1WEEK
Product Description
Siemens 6SL3120-1TE21-0AA4 Single Motor Module
Product Overview
Input: 600 V DC | Output: 3-phase 400 V AC, 9 A
Booksize Design | Internal Air Cooling | Includes DRIVE-CLiQ Cable
Product Status: Active (Spare Part Guaranteed)
Electrical Specifications
Input Power
DC Link Voltage (Nominal)600 V DC
DC Link Voltage Range510 - 720 V DC
Electronics Supply Voltage24 V DC (20.4 - 28.8 V DC)
Electronics Supply Current0.9 A (Typical)
Output Performance
Output Current (Rated)9 A AC
Output Current (Peak)18 A AC (for 3 s)
Rated Output Power (400 V)4.8 kW
Base Load Output Power (400 V)4.1 kW
Output Frequency0 - 600 Hz (V/f), 0 - 300 Hz (Vector)
Pulse Frequency4 kHz (Standard), 16 kHz (Reduced Performance)
Physical Dimensions & Mounting
Width60 mm
Height270 mm
Depth200 mm
Weight (Net)Approx. 5 kg (11 lbs)
MountingDIN Rail or Screw Mounting
Cooling TypeInternal Air Cooling (Integrated Fan)
Environmental Conditions
Operating Temperature (No Derating)0°C to +40°C
Operating Temperature (Derated)40°C to 55°C (Derate by 1% per °C)
Storage/Transport Temperature-25°C to +70°C
Relative Humidity5% to 95% (Non-condensing)
AltitudeUp to 2000 m (No Derating); 2000 - 4000 m (Derate by 1% per 100 m)
Protection ClassIP20 (For Cabinet Installation)
Interfaces & Connections
  • DRIVE-CLiQ Interface: 1 Port (Cable Included)
  • DC Link Connections: 2 (Integrated Busbars)
  • Motor Connection: Plug-in Type
  • Temperature Sensor Input: KTY84-130 / PTC
  • Safe Standstill Input: 1
  • Safe Motor Brake Control: 1
  • Protective Earth (PE): 2
Safety & Control Features
  • Safety Integrated Functions: STO (SIL 2/PL d), SS1, SBC, SLS, SSM (Extended)
  • Control Modes: V/f Control, Vector Control, Servo Control
  • Pulse Pattern: Optimized Pulse Pattern
  • EMC Compliance: EN 55011 Class A, EN 61800-3
Standards & Approvals
  • CE Mark: Yes
  • UL/cUL Certification: Yes
  • CSA Certification: Yes
  • RoHS Compliance: Yes
  • Safety Standards: IEC 61508 (SIL 2), EN ISO 13849-1 (PL d, Cat. 3)
