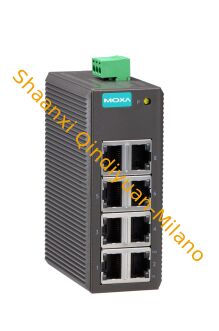

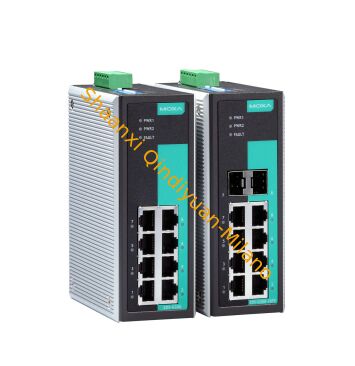

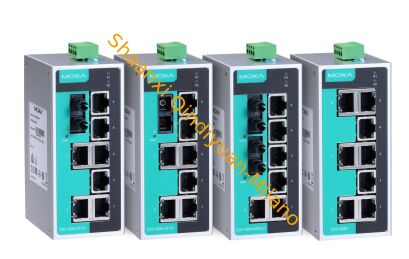

MOXA EDS-208A-S-SC 7 10/100BaseT(X) RJ45 Ports 1100BaseFX Single Mode SC Port

1pcs
MOQ
Negotiable
Price
MOXA EDS-208A-S-SC 7 10/100BaseT(X) RJ45 Ports 1100BaseFX Single Mode SC Port
Features Gallery Product Description Chat Now
Features
Specifications
Color: Normal
Input_Voltage: 24 V DC
Manufacturer: MOXA
Memory: 512 KB
Part Type: Sysmac CPM2A
Power_Consumption: 5 W
Operating_Temperature_Range: -20°C To 60°C
Mounting_Type: DIN Rail
Dimensions: 90 Mm X 60 Mm X 75 Mm
Condition: New Original With Sealed
Number_of_Outputs: 10
Output Method: Transistor
Output Typt: Relay
Actual Value: Negotiabled Price
Highlight:

MOXA EDS-208A-S-SC
Basic Infomation
Place of Origin: Taiwan
Brand Name: MOXA
Model Number: EDS-208A-S-SC
Document: EDS-208A.pdf
Payment & Shipping Terms
Delivery Time: 5-7work day
Payment Terms: T/T
Supply Ability: 20PCS 1WEEK
Product Description

General Information

Product ModelEDS-208A-S-SC
Product TypeUnmanaged Industrial Ethernet Switch
Description7 10/100BaseT(X) RJ45 ports + 1 100BaseFX single-mode SC port, standard temperature range (-10 to 60°C)
ManufacturerMOXA Technologies
Warranty Period5 years

Ethernet Interface

10/100BaseT(X) Ports7 x RJ45
100BaseFX Ports1 x single-mode SC
Standards ComplianceIEEE 802.3 (10BaseT), IEEE 802.3u (100BaseT(X)/FX), IEEE 802.3x (flow control)
RJ45 FeaturesAuto-negotiation, Full/Half duplex, Auto MDI/MDI-X
100BaseFX Wavelength1310 nm
100BaseFX TX Power Range0 to -5 dBm
100BaseFX RX Power Range-3 to -34 dBm
100BaseFX Link Budget29 dB
100BaseFX Typical Distance40 km (with G.652 fiber)

Switch Properties

Processing TypeStore and Forward
MAC Table Size2 K entries
Packet Buffer Size768 kbits
Broadcast Storm ProtectionSupported (via DIP switch)

Power Specifications

Input Voltage12/24/48 VDC (redundant dual inputs)
Operating Voltage Range9.6 to 60 VDC
Input Current0.11 A @ 24 VDC
Power Connection1 removable 4-contact terminal block
Overload ProtectionSupported
Reverse Polarity ProtectionSupported

Mechanical Specifications

Housing MaterialAluminum
IP RatingIP30
Dimensions (W x H x D)50 x 114 x 70 mm (1.96 x 4.49 x 2.76 in)
Weight275 g (0.61 lb)
Mounting OptionsDIN-rail mounting, Wall mounting (optional kit required)

Environmental Specifications

Operating Temperature-10 to 60°C (14 to 140°F)
Storage Temperature-40 to 85°C (-40 to 185°F)
Relative Humidity5 to 95% (non-condensing)
AltitudeUp to 2000 m above sea level

Standards and Certifications

SafetyUL 508, EN 62368-1 (LVD)
EMICISPR 32, FCC Part 15B Class A, EN 55032/35
EMSIEC 61000-4-2 (ESD: Contact 6 kV, Air 8 kV), IEC 61000-4-3 (RS: 10 V/m), IEC 61000-4-4 (EFT: Power 2 kV, Signal 1 kV), IEC 61000-4-5 (Surge: Power 2 kV, Signal 2 kV), IEC 61000-4-6 (CS: 10 V), IEC 61000-4-8 (PFMF)
Hazardous LocationsATEX Zone 2, Class I Division 2
MaritimeABS, DNV-GL, LR, NK
RailwayEN 50121-4
Traffic ControlNEMA TS2, e-Mark

Reliability

MTBF2,943,335 hours (per Telcordia/Bellcore standards)
Testing100% burn-in test
Physical ProtectionIP30 rated aluminum housing, reverse polarity protection, overload protection

Additional Features

DIP Switch FunctionEnables/disables broadcast storm protection
LED IndicatorsPower, Port Link/Activity, Port Speed
Installation AccessoriesDIN-rail mounting clip included, wall mounting kit optional
