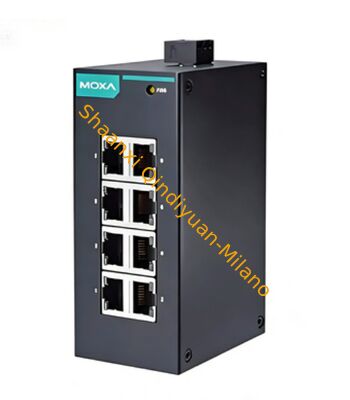

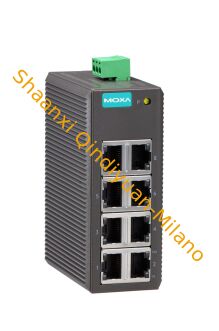

MOXA EDS-208 Entry Level Unmanaged Industrial Ethernet Switch 8 X 10/100BaseT(X) (RJ45)

2pcs
MOQ
Negotiable
Price
MOXA EDS-208 Entry Level Unmanaged Industrial Ethernet Switch 8 X 10/100BaseT(X) (RJ45)
Features Gallery Product Description Chat Now
Features
Specifications
CPU_Speed: 100 MHz
Manufacturer: Siemens
Input Points: 16DI
Number_of_Inputs: 14
Points: 40 (24DI+16DO)
Color: Normal
Actual Price: Based On Offer
Output Method: Transistor
Supply Voltage Type: AC
Part No: U-01EW
Actual Value: Negotiabled Price
Memory_Capacity: 50 KB
Total Points: 60 Points.
Weight: 0.3 Kg
Input_Voltage: 24 V DC
Highlight:

Unmanaged Industrial Ethernet Switch

,

MOXA EDS-208 Industrial Ethernet Switch
Basic Infomation
Place of Origin: Taiwan
Brand Name: MOXA
Model Number: EDS-208
Document: EDS-208.pdf
Payment & Shipping Terms
Delivery Time: 5-7work day
Payment Terms: T/T
Supply Ability: 20pcs 1week
Product Description
Parameter Category Parameter Name Value
General Information
General Information Product Series EDS-208 Series
General Information Product Type Entry-level Unmanaged Industrial Ethernet Switch
General Information Order Number EDS-208
General Information Switching Technology Store and Forward
General Information Number of Ports 8 x 10/100BaseT(X) (RJ45)
General Information Product Status Active
Ethernet Interface
Ethernet Interface IEEE Standards IEEE 802.3 (10BaseT), IEEE 802.3u (100BaseT(X)/FX), IEEE 802.3x (Flow Control)
Ethernet Interface Data Transfer Rate 10/100 Mbps (auto-sensing)
Ethernet Interface Duplex Mode Full/Half Duplex (auto-sensing)
Ethernet Interface MDI/MDIX Auto-sensing (no crossover cable needed)
Ethernet Interface Broadcast Storm Protection Supported
Ethernet Interface Max Packet Size 1536 bytes
Ethernet Interface Backplane Bandwidth 1.6 Gbps
Ethernet Interface Forwarding Rate 1.19 Mpps (wire-speed)
Electrical Specifications
Electrical Specifications Operating Voltage Range 9.6 to 60 VDC, 18 to 30 VAC (50-60 Hz)
Electrical Specifications Input Current 0.07 A @ 24 VDC
Electrical Specifications Power Consumption 1.68 W @ 24 VDC
Electrical Specifications Power Connector 1 removable 3-contact terminal block
Electrical Specifications Overload Protection 2.5 A @ 24 VDC
Electrical Specifications Reverse Polarity Protection Supported
Electrical Specifications Overvoltage Protection Supported
Physical Characteristics
Physical Characteristics Housing Material Plastic
Physical Characteristics IP Rating IP30
Physical Characteristics Dimensions (W x H x D) 40 x 100 x 86.5 mm (1.57 x 3.94 x 3.41 in)
Physical Characteristics Net Weight 159 g (0.35 lb)
Physical Characteristics Mounting Type DIN-rail (TS-35/7.5 or TS-35/15)
Physical Characteristics LED Indicators Power (PWR), Port Status (Link/Act) for each port
Environmental Conditions
Environmental Conditions Operating Temperature -10 to 60°C (14 to 140°F)
Environmental Conditions Storage Temperature -40 to 85°C (-40 to 185°F)
Environmental Conditions Relative Humidity 5 to 95% RH (non-condensing)
Environmental Conditions Altitude Up to 2000 m (6562 ft) above sea level
EMC Compliance
EMC Compliance IEC 61000-4-2 ESD Contact: 4 kV; Air: 8 kV
EMC Compliance IEC 61000-4-3 RS 80 MHz to 1 GHz: 3 V/m
EMC Compliance IEC 61000-4-4 EFT Power: 1 kV; Signal: 0.5 kV
EMC Compliance IEC 61000-4-5 Surge Power: 1 kV; Signal: 1 kV
EMC Compliance IEC 61000-4-6 CS 150 kHz to 80 MHz: 10 V (1 kHz)
Safety Certifications
Safety Certifications UL 61010-1 UL 61010-1, CE, FCC Part 15B Class A, IEC 61010-1
MTBF
MTBF Mean Time Between Failures 368,353 hours (at 40°C)
Warranty
Warranty Standard Warranty 5 years
Special Features
Special Features Plug-and-Play Operation Yes (no configuration needed)
Special Features Auto-negotiation Yes (speed and duplex)
Special Features Shock Resistance IEC 60068-2-27: 15 g, 11 ms
Special Features Vibration Resistance IEC 60068-2-6: 5 g, 10 to 500 Hz
