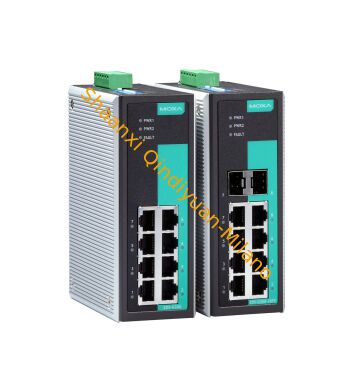

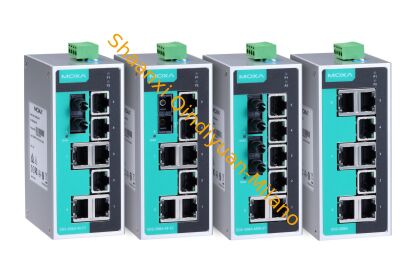

MOXA EDS-208A 8 Port Unmanaged Industrial Ethernet Switch Industrial Automation

1pcs
MOQ
Negotiable
Price
MOXA EDS-208A 8 Port Unmanaged Industrial Ethernet Switch Industrial Automation
Features Gallery Product Description Chat Now
Features
Specifications
Supply Voltage Type: AC
Condition: New Original With Sealed
Input_Voltage: 24 V DC
Output Points: 24 Points.
Color: Normal
Part No: 750-530
Points: 40 (24DI+16DO)
Input Points: 28
Mounting_Type: DIN Rail
Number_of_Inputs: 14
Part Type: Sysmac CPM2A
Output Typt: Relay
Number_of_Outputs: 10
Dimensions: 90 Mm X 60 Mm X 75 Mm
Power_Consumption: 5 W
Highlight:

MOXA EDS-208A

,

8 Port Industrial Ethernet Switch

,

MOXA Industrial Ethernet Switch
Basic Infomation
Place of Origin: Taiwan
Brand Name: MOXA
Model Number: EDS-208A
Document: EDS-208A.pdf
Payment & Shipping Terms
Delivery Time: 5-7work day
Payment Terms: T/T
Supply Ability: 50PCS 1WEEK
Product Description
Product Specifications
Parameter Name Value
General Information
Product Series EDS-208A Series
Product Type 8-port Unmanaged Industrial Ethernet Switch
Manufacturer Moxa Inc.
Order Number EDS-208A
Switch Type Compact Unmanaged
Main Application Industrial Automation, Harsh Environments, Hazardous Locations
Product Status Active
Ethernet Interface
10/100BaseT(X) Ports 8 x RJ45 connectors
100BaseFX Ports 0 (copper-only model)
Auto Negotiation Speed (10/100 Mbps) and Duplex (Full/Half)
Auto MDI/MDI-X Yes, built-in
Standards Compliance IEEE 802.3 (10BaseT), IEEE 802.3u (100BaseT(X)/FX), IEEE 802.3x (Flow Control)
Switching Capacity 1.6 Gbps
Packet Buffer 768 Kbits
Forwarding Rate 1.19 Mpps (wire-speed)
MAC Address Table 1K entries
Broadcast Storm Protection Yes, via DIP switch (configurable)
Power Specifications
Input Voltage Range 9.6 to 60 VDC (redundant dual inputs)
Input Voltage Options 12/24/48 VDC
Input Current 0.11 A @ 24 VDC
Power Connector 1 removable 4-contact terminal block
Redundant Power Inputs Yes, dual inputs (can be connected simultaneously)
Overload Protection Yes
Reverse Polarity Protection Yes
Power Consumption 2.64 W @ 24 VDC
Mechanical Specifications
Dimensions (W x H x D) 50 x 114 x 70 mm (1.96 x 4.49 x 2.76 in)
Net Weight 275 g (0.61 lb)
Mounting Options DIN-rail mounting (standard), Wall mounting (optional kit)
Housing Material IP30-rated Aluminum
Conductor Cross-section (Power) 0.5 to 2.5 mm² (AWG 20 to AWG 14)
Environmental Specifications
Operating Temperature (Standard) -10 to 60°C (14 to 140°F)
Operating Temperature (-T models) -40 to 75°C (-40 to 167°F)
Storage Temperature -40 to 85°C (-40 to 185°F)
Relative Humidity 5% to 95% (non-condensing)
Altitude Up to 2000 m (6562 ft) above sea level
Shock Resistance IEC 60068-2-27: 15 g, 11 ms, 3 axes
Vibration Resistance IEC 60068-2-6: 5 g, 10 to 500 Hz, 3 axes
EMC & Safety Certifications
EMC Compliance IEC 61000-4-2 (ESD): Contact 4 kV, Air 8 kV; IEC 61000-4-3 (RS): 10 V/m; IEC 61000-4-4 (EFT): Power 2 kV, Signal 1 kV; IEC 61000-4-5 (Surge): Power 2 kV, Signal 2 kV; IEC 61000-4-6 (CS): 10 V; IEC 61000-4-8 (PFMF)
EMI Emission FCC Part 15, Class A; EN 55032, Class A
Safety Certifications
UL 508 Yes
ATEX / IECEx Yes (Zone 2, Class I Div. 2)
Maritime ABS, DNV-GL, LR, NK
Railway EN 50121-4, NEMA TS2, e-Mark
IP Rating IP30
CE Mark Yes
FCC Compliance Yes
Additional Features
LED Indicators Power (PWR1, PWR2), Port Activity/Link (1-8)
Operating Temperature Range -10 to 60°C (standard), -40 to 75°C (-T models)
MTBF > 1,000,000 hours (at 25°C per Telcordia SR-332)
100% Burn-in Test Yes
Warranty 5 years
