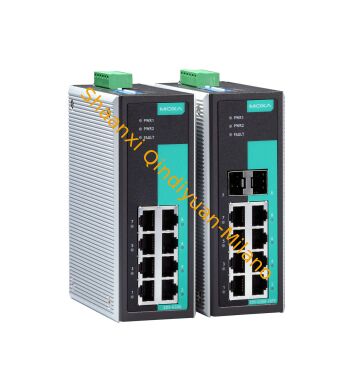

MOXA EDS-G308-2SFP Unmanaged Full Gigabit Industrial Ethernet Switch Overvoltage Protection

1pcs
MOQ
Negotiable
Price
MOXA EDS-G308-2SFP Unmanaged Full Gigabit Industrial Ethernet Switch Overvoltage Protection
Features Gallery Product Description Chat Now
Features
Specifications
Point: 14 (8DI+6DO)
Part No: U-05N
Mounting_Type: DIN Rail
Number_of_Outputs: 10
Application: Oil And Gas Factory
Power_Consumption: 5 W
Actual Price: Based On Offer
Color: Normal
Power Supply Voltage: AC240-360V.
Output Typt: Relay
CPU_Type: CPU 1214C
Points: 40 (24DI+16DO)
Actual Value: Negotiabled Price
Output Points: 24 Points.
Condition: New Original With Sealed
Highlight:

Unmanaged Industrial Ethernet Switch

,

Full Gigabit Industrial Ethernet Switch

,

MOXA EDS-G308-2SFP
Basic Infomation
Place of Origin: Taiwan
Brand Name: MOXA
Model Number: EDS-G308-2SFP
Document: EDS-G308-2SFP.pdf
Payment & Shipping Terms
Delivery Time: 5-7work day
Payment Terms: T/T
Supply Ability: 10PCS 1week
Product Description
Parameter Category Parameter Name Value
General Information

Product Model EDS-G308-2SFP

Product Type Unmanaged Full Gigabit Industrial Ethernet Switch

Product Description 6 x 10/100/1000BaseT(X) ports + 2 x combo 10/100/1000BaseT(X) or 100/1000BaseSFP slots

Management Type Unmanaged

Processing Type Store and Forward

Product Status Active
Ethernet Interface

RJ45 Ports (10/100/1000BaseT(X)) 6 ports (auto-sensing, auto-negotiation, auto-MDI/MDIX)

Combo SFP Ports 2 ports (100/1000BaseSFP or 10/100/1000BaseT(X))

SFP Slot Compatibility SFP-1G/1FE Series Gigabit/Fast Ethernet modules

Cable Type for RJ45 Category 5e or higher (for 1000BaseT)
Network Specifications

Supported Standards IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3az (Energy Efficient Ethernet)

MAC Address Table Size 8 K entries

Packet Buffer Size 4 Mbits

Jumbo Frame Support Up to 9.6 KB

Broadcast Storm Protection Supported (configurable via DIP switch)

Forwarding Rate 11.9 Mpps (wire-speed)
Power Parameters

Power Input Redundant dual 12/24/48 VDC inputs

Operating Voltage Range 9.6 to 60 VDC

Power Connection 1 removable 6-contact terminal block

Input Current 0.9 A @ 12-48 VDC; 0.31 A @ 24 VDC typical

Reverse Polarity Protection Supported

Overvoltage Protection Supported

Power Consumption Approx. 22.5 W (max)
Alarm & Indicators

Relay Output 1 relay output (1 A @ 24 VDC) for power failure and port break alarm

LED Indicators Power (PWR1, PWR2), Status (STS), Port Activity/Link/Speed (per port)
Physical Characteristics

Housing Material Metal

IP Rating IP30

Dimensions (W x H x D) 53 x 135 x 105 mm (2.08 x 5.31 x 4.13 in)

Weight 880 g (1.94 lb)

Mounting Options DIN-Rail mounting (EN 50022) or wall mounting
Environmental Conditions

Operating Temperature Range 0 to 60°C (32 to 140°F)

Storage Temperature Range -40 to 85°C (-40 to 185°F)

Ambient Relative Humidity 5 to 95% (non-condensing)

Altitude Up to 2000 m (6562 ft) above sea level

Operating Temperature Range (-T model) -40 to 75°C (-40 to 167°F)
Mechanical & Electrical Protection

Surge Protection 2 kV (power port); 1 kV (Ethernet port)

EFT Protection 2 kV (power port); 1 kV (Ethernet port)

ESD Protection 6 kV (contact); 15 kV (air)
Certifications

Safety Certifications UL 508, EN 62368-1 (LVD)

EMC Certifications EN 55032/35, EN 61000-6-2/-6-4, FCC Part 15B Class A, ICES-003 Class A

Hazardous Location Certifications Class I, Division 2, Groups
