| General Information |
|
Product Name |

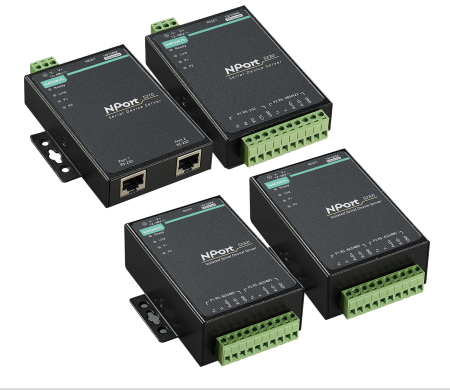

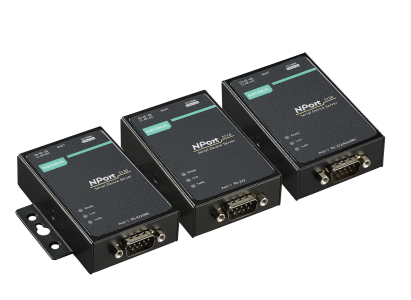

MOXA NPort 5232 |
|
Product Series |
NPort 5200 Series |
|
Product Type |
2-port RS-422/485 Serial Device Server |
|
Description |
Compact industrial serial-to-Ethernet device server for connecting RS-422/485 devices to IP networks |
|
Operating Temperature Range |
0 to 55°C (32 to 131°F) |
|
Warranty Period |
5 years |
|
MTBF |
309,383 hours (per Telcordia Standard TR/SR) |
| Serial Interface |
|
Number of Ports |
2 |
|
Connector Type |
Terminal block |
|
Supported Standards |
RS-422, RS-485 (2-wire and 4-wire) |
|
Baudrate |
110, 134, 150, 300, 600, 1200, 1800, 2400, 4800, 7200, 9600, 19200, 38400, 57600, 115200, 230400 bps |
|
Data Bits |
5, 6, 7, 8 |
|
Stop Bits |
1, 1.5, 2 |
|
Parity |
None, Even, Odd, Space, Mark |
|
Flow Control |
XON/XOFF |
|
RS-485 Data Direction Control |
ADDC (Automatic Data Direction Control) |
|
RS-485 Pull Resistor |
1 kilo-ohms (fixed value) |
|
RS-422 Signals |
Tx+, Tx-, Rx+, Rx-, GND |
|
RS-485-4w Signals |
Tx+, Tx-, Rx+, Rx-, GND |
|
RS-485-2w Signals |
Data+, Data-, GND |
| Ethernet Interface |
|
Number of Ports |
1 |
|
Connector Type |
RJ45 |
|
Standard |
10/100BaseT(X), auto-sensing |
|
Magnetic Isolation Protection |
1.5 kV (built-in) |
|
Supported Protocols |
TCP/IP, UDP, ARP, ICMP, DHCP, BOOTP, DNS, HTTP, Telnet, SNMPv1, SMTP, SNTP, ICMP |
| Software Features |
|
Operation Modes |
Disabled, Ethernet Modem, Pair Connection, Real COM, Reverse Telnet, TCP Client, TCP Server, UDP |
|
Windows Real COM Drivers |
Windows 11, 10, 8.1, 8, 7, Vista, XP, ME, 98; Windows Server 2022, 2019, 2016, 2012 R2, 2012, 2008 R2, 2008, 2003, 2000, NT; Windows Embedded CE 6.0, 5.0; Windows XP Embedded |
|
Linux Real TTY Drivers |
Kernel versions: 6.x, 5.x, 4.x, 3.x, 2.6.x, 2.4.x |
|
Other OS Drivers |
macOS 14, 13, 12, 11, 10.1x; SCO UNIX, SCO OpenServer, UnixWare 7; QNX 4.25, QNX 6; Solaris 10; FreeBSD; AIX 5.x; HP-UX 11i |
|
Arm-based Platform Support |
Windows 11; Linux Kernel 6.x, 5.x, 4.x; macOS 14, 13, 12, 11 |
|
Virtual Machine Support |
VMWare ESXi (Windows 11/10); VMware Fusion (Windows on macOS); Parallels Desktop (Windows on macOS) |
|
Android API Support |
Android 3.1.x and later |
|
MIB Support |
RFC1213 (MIB-II), RFC1317 |
|
Security Functions |
Local database (password only) |
| Power Parameters |
|
Input Voltage Range |
12 to 48 VDC |
|
Input Current |
280 mA @ 12 VDC |
|
Power Connector |
1 removable 3-contact terminal block |
|
Number of Power Inputs |
1 |
| Physical Characteristics |
|
Housing Material |
Metal |
|
Dimensions (without ears) |
67 x 100.4 x 22 mm (2.64 x 3.95 x 0.87 in) |
|
Dimensions (with ears) |
90 x 100.4 x 22 mm (3.54 x 3.95 x 0.87 in) |
|
Weight |
360 g (0.79 lb) |
|
Installation Options |
Desktop, DIN-rail mounting (optional kit), Wall mounting |
| Environmental Limits |
|
Storage Temperature |
-40 to 75°C (-40 to 167°F) |
|
Ambient Relative Humidity |
5 to 95% (non-condensing) |
| Standards and Certifications |
|
EMC |
EN 55032/35 |
|
EMI |
CISPR 32, FCC Part 15B Class A |
|
EMS |
IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV; IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m; IEC 61000-4-4 EFT: Power: 1 kV; Signal: 0.5 kV; IEC 61000-4-5 Surge: Power: 1 kV; IEC 61000-4-6 CS: 150 kHz to 80 MHz: 3 V/m; Signal: 3 V/m; IEC 61000-4-8 PFMF; IEC 61000-4-11 |
|
Safety |
UL 60950-1 |
|
Maritime |
DNV |
|
Green Product Compliance |
RoHS, CRoHS, WEEE |
| Reliability Features |
|
Automatic Reboot Trigger |
Built-in WDT (Watchdog Timer) |
|
Alert Tools |
Built-in buzzer and RTC (Real-Time Clock) |
