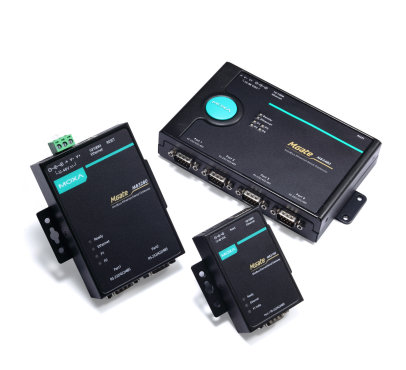

Name: MOXA MGate MB3480 4 Port Standard Serial To Ethernet Modbus Gateway
Brand: Shaanxi Qindiyuan Environmental Protection Equipment Co., Ltd.
SKU: MGate MB3480
Availability: InStock

Features Gallery Product Description Chat Now

Features

Specifications

Responsetime: Typically Less Than 10 Ms

Environmentalprotection: IP54 To IP65

Mountingtype: Panel-mounted, DIN Rail, Wall-mounted

Relaytype: Electromechanical, Solid-state, Digital

Componentsincluded: Relays, Circuit Breakers, Sensors, Control Panels

Standardscompliance: IEC 60255, IEEE C37 Series

Diagnosticfeatures: Self-test, Event Recording, Fault Analysis

Application: Power Generation, Transmission, And Distribution Systems

Powersupply: AC/DC 24 V, 48 V, 110 V, 220 V

Currentrating: Up To 6300 A

Productname: Protection And Control Components

Communicationprotocols: IEC 61850, Modbus, DNP3

Function: Protect Electrical Equipment And Control Electrical Power Systems

Operatingvoltagerange: Up To 36 KV

Operatingtemperaturerange: -20°C To +60°C

Highlight:

Serial To Ethernet Modbus Gateway

MOXA MGate MB3480

4 Port Ethernet Modbus Gateway

Basic Infomation

Place of Origin: Taiwan

Brand Name: MOXA

Model Number: MGate MB3480

Document: MOXA MGate MB3480.pdf

Payment & Shipping Terms

Delivery Time: 5-7work day

Payment Terms: T/T

Supply Ability: 10pcs 1week

Gallery

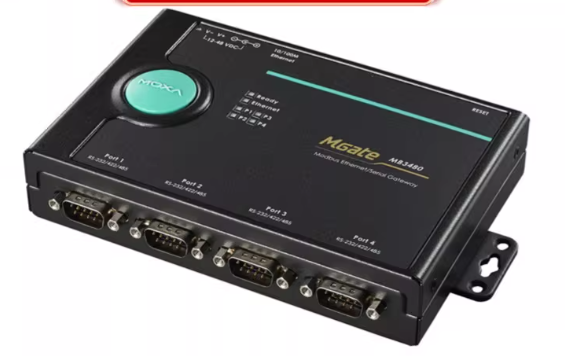

MOXA MGate MB3480 4 Port Standard Serial To Ethernet Modbus Gateway

Product Description

Parameter Category	Parameter Name	Value
General Information
	Product Model	MGate MB3480
	Product Description	4-port standard serial-to-Ethernet Modbus gateway, converts between Modbus TCP and Modbus RTU/ASCII protocols
	Max Serial Slave Nodes	124 (31 per serial port)
	Simultaneous TCP Masters	16
	Max Requests per TCP Master	32
	Auto Device Routing	Supported
	Route Control Methods	IP address, TCP port number, ID mapping
	Manufacturer	MOXA Inc.
	Product Status	Active
Ethernet Interface
	Port Type	1 x 10/100BaseT(X) (RJ45 connector)
	Auto MDI/MDI-X	Supported
	Magnetic Isolation Protection	1.5 kV (built-in)
	Industrial Protocols	Modbus TCP Client (Master), Modbus TCP Server (Slave)
	Configuration Options	Web Console (HTTP/HTTPS), Device Search Utility (DSU), MGate Manager, MCC Tool, Telnet Console
Serial Interface
	Number of Ports	4
	Connector Type	DB9 male (each port)
	Serial Standards	RS-232/422/485 (software-selectable per port)
	Baudrate Range	50 bps to 921.6 kbps
	Data Bits	7, 8
	Parity Options	None, Even, Odd, Space, Mark
	Stop Bits	1, 2
	Flow Control Options	DTR/DSR, RTS Toggle (RS-232 only), RTS/CTS
	RS-485 Data Direction Control	ADDC (Automatic Data Direction Control)
	RS-485 Pull Resistors	1 kΩ, 150 kΩ
	RS-485 Terminator	120 ohms (built-in)
	RS-232 Signals	TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
	RS-422 Signals	Tx+, Tx-, Rx+, Rx-, GND
	RS-485-2w Signals	Data+, Data-, GND
	RS-485-4w Signals	Tx+, Tx-, Rx+, Rx-, GND
	Industrial Protocols	Modbus RTU/ASCII Master, Modbus RTU/ASCII Slave
Modbus Specifications
	Max TCP Client Connections	16
	Max TCP Server Connections	32
	Transparent Mode	Supported
Power Parameters
	Input Voltage Range	12 to 48 VDC
	Input Current	365 mA @ 12 VDC
	Power Connector	Power jack and terminal block
Physical Characteristics
	Housing Material	Metal
	IP Rating	IP30
	Dimensions (with ears)	35.5 x 102.7 x 181.3 mm (1.40 x 4.04 x 7.14 in)
	Dimensions (without ears)	35.5 x 102.7 x 157.2 mm (1.40 x 4.04 x 6.19 in)
	Net Weight	740 g (1.63 lb)
	Mounting Options	DIN-rail mounting (with DK35A kit), Wall-mounting (with WK-35-01 kit)
Environmental Limits
	Operating Temperature	0 to 55°C (32 to 131°F)
	Storage Temperature (package included)	-40 to 85°C (-40 to 185°F)
	Ambient Relative Humidity	5 to 95% RH (non-condensing)
	Altitude	Up to 2000 m (6562 ft)
Standards and Certifications
	EMC Standards	EN 55032/35
	EMI Standards	CISPR 32, FCC Part 15B Class A
	EMS Standards	IEC 61000-4-2 ESD: Contact 4 kV, Air 8 kV; IEC 61000-4-3 RS: 80 MHz to 1 GHz, 3 V/m; IEC 61000-4-4 EFT: Power 1 kV, Signal 0.5 kV; IEC 61000-4-5 Surge: Power 1 kV, Signal 2 kV; IEC 61000-4-6 CS: 3 V; IEC 61000-4-8 PFMF; IEC 61000-4-11
	Safety Standards	IEC/UL 62368-1, IEC 60950-1
	MTBF	1,213,993 hours (per Telcordia Standard SR-332)
	Warranty Period	5 years
Security Functions
	Authentication	Local database
	Encryption	HTTPS, AES-128, AES-256, SHA-256
	Security Protocols	HTTPS (TLS 1.2), SNMPv3
Management Features
	Network Protocols	ARP, DHCP Client, DNS, HTTP, HTTPS, SNMPv1/v2c/v3, TCP/IP, Telnet, UDP, ICMP, SMTP, SNMP Trap, NTP Client
	MIB Support	RFC1213, RFC1317
	Time Management	NTP Client
	Diagnostic Tools	Built-in web-based diagnostics, LED indicators
Serial Signal Configurations
	RS-232 Signals	TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
	RS-422 Signals	Tx+, Tx-, Rx+, Rx-, GND
	RS-485-2w Signals	Data+, Data-, GND
	RS-485-4w Signals	Tx+, Tx-, Rx+, Rx-, GND
RS-485 Special Features
	Automatic Data Direction Control (ADDC)	Supported
	Pull High/Low Resistor	1 kΩ, 150 kΩ
	Terminator	120 ohms (selectable)
Accessories
	Recommended Cables	CBL-F9M9-150 (1.5 m DB9 female to DB9 male), CBL-F9M9-20 (20 cm DB9 female to DB9 male)
	Mounting Kits	DK35A (DIN-rail), WK-35-01 (Wall-mounting)
