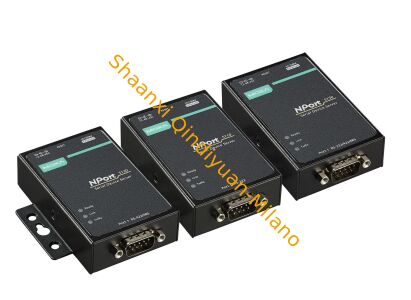

MOXA NPORT 5110 1 Port RS-232 Serial Device Server Serial To Ethernet Converter

2PCS
MOQ
Negotiable
Price
MOXA NPORT 5110 1 Port RS-232 Serial Device Server Serial To Ethernet Converter
Features Gallery Product Description Chat Now
Features
Specifications
Output Typt: Relay
Memory_Capacity: 50 KB
Weight: 0.5 Kg
Condition: New Original With Sealed
Input Points: 28
Actual Price: Negotiabled
Supply Voltage Type: AC
Dimensions: 100 X 75 X 60 Mm
Power_Consumption: 5 W
Mpu Points: 12 (8DI + 4DO)
Output Method: Relay
Number_of_Outputs: 10
Points: 40 (24DI+16DO)
CPU_Speed: 100 MHz
Input_Voltage: 24 V DC
Highlight:

MOXA NPORT 5110

,

MOXA Serial Device Server

,

MOXA Serial To Ethernet Converter
Basic Infomation
Place of Origin: Taiwan
Brand Name: Moxa
Model Number: NPORT 5110
Document: NPORT 5110.pdf
Payment & Shipping Terms
Delivery Time: 5-7work day
Payment Terms: T/T
Supply Ability: 50pcs 1week
Product Description
General Information
Parameter Name Value
Product Model NPort 5110
Product Series NPort 5100 Series
Product Type 1-port RS-232 Serial Device Server (Serial to Ethernet Converter)
Manufacturer MOXA Technologies
Warranty 5 years
Status Active Product
Ethernet Interface
Parameter Name Value
Number of Ports 1
Standard 10/100BaseT(X) (auto-sensing)
Connector 8-pin RJ45 (auto MDI/MDIX)
Magnetic Isolation Protection 1.5 kV (built-in)
LED Indicators Link/Act, Speed (10/100 Mbps)
Serial Interface
Parameter Name Value
Number of Ports 1
Standard RS-232 (DB9 male connector)
Signal Pins TXD, RXD, RTS, CTS, DTR, DSR, DCD, GND
Baud Rate 110 bps to 230.4 kbps
Data Bits 5, 6, 7, 8
Parity None, Even, Odd, Space, Mark
Stop Bits 1, 1.5, 2
Flow Control RTS/CTS, DTR/DSR (hardware), XON/XOFF (software)
ESD Protection 15 kV (all serial signals)
Power Specifications
Parameter Name Value
Input Voltage 12-48 VDC (dual polarity protection)
Input Current 12 VDC: 150 mA max; 48 VDC: 40 mA max
Power Consumption 1.8 W max
Power Connector 2-pin terminal block (screw type)
Included Power Adapter Yes (100-240 VAC to 12 VDC)
Mechanical Specifications
Parameter Name Value
Dimensions (with mounting ears) 75.2 x 80 x 22 mm (2.96 x 3.15 x 0.87 in)
Dimensions (without mounting ears) 52 x 80 x 22 mm (2.05 x 3.15 x 0.87 in)
Weight 340 g (0.75 lb)
Mounting Options Desktop, Wall mounting, DIN-rail mounting (with optional DK35A kit)
Case Material Metal
Environmental Specifications
Parameter Name Value
Operating Temperature 0 to 55°C (32 to 131°F)
Storage Temperature -20 to 85°C (-4 to 185°F)
Relative Humidity 5 to 95% RH (non-condensing)
Altitude Up to 2000 m (6562 ft) above sea level
Protection Class IP30 (front panel)
Software Features
Parameter Name Value
Operation Modes TCP Server, TCP Client, UDP, Real COM, Pair Connection, Reverse Telnet
Configuration Methods Web Browser, Serial Console (RS-232), Telnet Console, Windows Utility
Supported Protocols TCP/IP, UDP, ICMP, ARP, DHCP Client, BOOTP, DNS, HTTP, Telnet, SNMPv1 (MIB-II), SMTP, SNTP
Drivers Support Windows (95/98/ME/NT/2000/XP/2003/Vista/7/8/8.1/10 x86/x64), Windows Server (2008 R2/2012/2012 R2 x64), Windows Embedded CE 5.0/6.0, Linux, macOS
Management Tools MXview Industrial Network Management Software (via MXview Plug-in)
Certifications
Parameter Name Value
EMC FCC Class A, CE Class A
Safety UL, CUL, TÜV
Other RoHS Compliant
