| General Information |
Product Series |
NPort 5600 Series |
| General Information |
Order Number |
NPort 5650-16 |
| General Information |
Product Description |

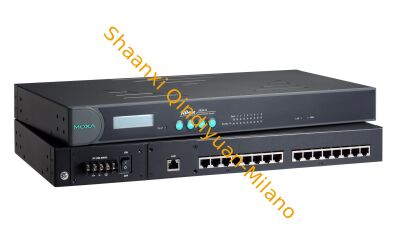

16-port RS-232/422/485 rackmount device server with RJ45 connectors and 100-240 VAC power input |
| General Information |
Product Type |
Rackmount Serial Device Server |
| General Information |
Serial Standards Supported |
RS-232, RS-422, RS-485 |
| General Information |
Installation Type |
19-inch rack mounting |
| General Information |
Status |
Active Product |
| Ethernet Interface |
Port Count |
1 x 10/100BaseT(X) (RJ45 connector) |
| Ethernet Interface |
Magnetic Isolation Protection |
1.5 kV (built-in) |
| Ethernet Interface |
Auto-sensing |
Yes (10/100 Mbps, half/full duplex) |
| Ethernet Interface |
LED Indicators |
Link/Activity (on RJ45 connector) |
| Serial Interface |
Port Count |
16 ports |
| Serial Interface |
Connector Type |
8-pin RJ45 |
| Serial Interface |
Baudrate Range |
50 bps to 921.6 kbps (standard baudrates supported) |
| Serial Interface |
Data Bits |
5, 6, 7, 8 |
| Serial Interface |
Stop Bits |
1, 1.5, 2 |
| Serial Interface |
Parity Options |
None, Even, Odd, Space, Mark |
| Serial Interface |
Flow Control Options |
None, RTS/CTS (RS-232 only), DTR/DSR (RS-232 only), XON/XOFF |
| Serial Interface |
RS-485 Pull High/Low Resistors |
1 kilo-ohm, 150 kilo-ohms (adjustable via DIP switches) |
| Serial Interface |
RS-485 Termination Resistor |
120 ohms (adjustable via DIP switches) |
| Serial Interface |
ESD Protection |
15 kV (built-in for all serial signals) |
| Serial Interface |
LED Indicators |
Tx/Rx per port (front panel) |
| Power Specifications |
Input Voltage Range |
100 to 240 VAC, 47 to 63 Hz |
| Power Specifications |
Input Current |
158 mA @ 100 VAC |
| Power Specifications |
Power Consumption |
TBD |
| Power Specifications |
Power Supply Type |
Internal AC Power Supply |
| Physical Characteristics |
Dimensions (with ears) |
480 x 45 x 198 mm (18.90 x 1.77 x 7.80 in) |
| Physical Characteristics |
Dimensions (without ears) |
440 x 45 x 198 mm (17.32 x 1.77 x 7.80 in) |
| Physical Characteristics |
Net Weight |
2,510 g (5.53 lb) |
| Physical Characteristics |

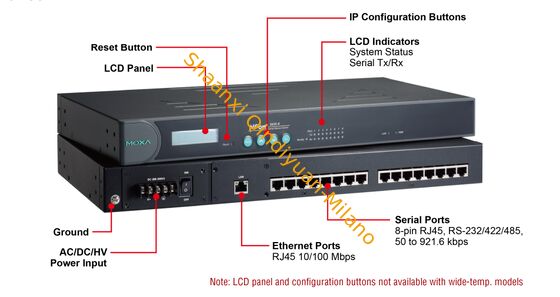

Front Panel Features |
System LED, 16 x Tx/Rx LEDs, LCD panel with configuration buttons |
| Physical Characteristics |
Rear Panel Features |
16 x RJ45 serial ports, 1 x RJ45 Ethernet port, AC power inlet, grounding terminal |
| Environmental Specifications |
Operating Temperature |
0 to 60°C (32 to 140°F) |
| Environmental Specifications |
Storage Temperature |
-20 to 70°C (-4 to 158°F) |
| Environmental Specifications |
Relative Humidity |
5% to 95% (non-condensing) |
| Environmental Specifications |
Altitude |
Up to 2,000 m (6,562 ft) |
| Environmental Specifications |
Shock Resistance |
50 g, 11 ms (half sine wave) |
| Environmental Specifications |
Vibration Resistance |
5 g, 10 to 2000 Hz (random) |
| Software Features |
Configuration Options |
Telnet Console, Web Console (HTTP/HTTPS), Windows Utility |
| Software Features |
Supported Network Protocols |
ICMP, IPv4, TCP, UDP, DHCP, BOOTP, ARP, DNS, HTTP, HTTPS, SNMPv1/v2c, Telnet, RTelnet, PPP, SLIP, SMTP, LLDP, RFC2217, IGMP v1/v2c |
| Software Features |
Socket Modes |
TCP Server, TCP Client, UDP, Real COM, Reverse Telnet, RFC2217, Ethernet Modem, Pair Connection |
| Software Features |
Driver Support |
Windows Real COM Drivers (Windows 11/10/8.1/8/7/Vista/XP/ME/98/95, Windows Server 2022/2019/2016/2012 R2/2012/2008 R2/2008/2003, Windows Embedded CE 6.0/5.0, Windows XP Embedded) |
| Software Features |
Driver Support |
Linux Real TTY Drivers (Kernel versions 6.x, 5.x, 4.x, 3.x, 2.6.x, 2.4.x) |
| Software Features |
Driver Support |
Fixed TTY Drivers (macOS 11.x, 10.12 to 10.15; SCO Unix, SCO OpenServer, UnixWare 7, QNX 4.25, QNX 6, Solaris 10, FreeBSD, AIX 5.x, HP-UX 11i) |
| Software Features |
Virtual Machine Support |
VMWare ESXi (Windows 11/10), VMware Fusion (Windows on macOS), Parallels Desktop (Windows on macOS) |
| Software Features |
Android API Support |
Android 3.1.x and later |
| Software Features |
Time Management |
SNTP |
| Software Features |
Security Functions |
Local database authentication, HTTPS (TLS 1.2), AES-128, RSA-1024, SHA-1, SHA-256, SNMPv3 |
| Certifications & Compliance |
EMC Compliance |
EN 61000-4-2 ESD: contact 4 kV; air 8 kV; EN 61000-4-3 RS: 3 V/m (80 MHz to 1 GHz); EN 61000-4-4 EFT: Power 4 kV; Signal 2 kV; EN 61000-4-5 Surge: Power 2 kV; Signal 1 kV; EN 61000-4-6 EFT: 3 V/m (140 to 2000 MHz) |
| Certifications & Compliance |
Safety Certifications |
UL 60950-1, CSA C22.2 No. 60950-1, IEC 60950-1 |
| Certifications & Compliance |
EMI Standards |
FCC Part 15B Class A, CE Class A, VCCI Class A |
| Certifications & Compliance |
MTBF |
525,107 hours |
| Additional Features |
LCD Panel & Buttons |
Yes (for easy IP configuration) |
| Additional Features |
LED Indicators |
System LED, serial Tx/Rx LEDs (front panel), Ethernet LEDs (RJ45 connector) |
| Additional Features |
Adjustable Resistors |
DIP switches on bottom panel for RS-485 termination and pull high/low resistors |
| Additional Features |
Management |
SNMP MIB-II for network management |
