M12 Circular Connector Waterproof Overmolded Cable Assembly M12-D4-LP-K

Contact Gender

female

Wiring Method

PCB pins

Mounting Method

panel/PCB mounting

shielded

shielded

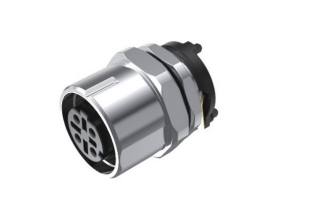

The M12 circular sealed connector uses D-coding for mating-error prevention. This configuration is a femalestraight male connector with latch, providing excellent mechanical stability and electrical continuity for durable, reliable connections in harsh industrial environments.

• Rated voltage: 250V
• Rated current: 4A
• Degree of protection: IP67, when mated
• Operating temperature: Connector: -45℃ ~ +115℃
• Contact resistance: ≤ 3 mΩ
• Insulation resistance: ≥ 100 MΩ
• Mechanical endurance: ≥ 500 mating cycles
• Rated impulse voltage: 500V / 800V / 1500V / 2500V
• Shell material: nickel-plated brass / nickel-plated zinc alloy
• Insulator material: PA66 (UL 94-V0)
• Contact material: gold-plated brass

• Standard M12 threaded coupling mechanism, compliant with IEC 61076-2-101
• Available in shielded versions, 360° all-metal shieldedhousing, excellent electromagneticinterference immunity (EMI) performance
• High-grade flame-retardant PA66 Insulator material, rated UL 94 V-0
• Heavy gold plating on contact surfaces, ensures low Contact resistance (≤3mΩ) and extended mating life
