M12 Circular Connector Waterproof Overmolded Cable Assembly M12-X8-BX

1 pcs
MOQ
Negotiable
Price
M12 Circular Connector Waterproof Overmolded Cable Assembly M12-X8-BX
Features Gallery Product Description Chat Now
Features
Specifications
Installationtype: Panel Mounted, Rack Mounted
Inputtypes: Digital Input, Analog Input
Control Mode: Closed-Loop Control
Basic Infomation
Model Number: M12-X8-BX
Payment & Shipping Terms
Delivery Time: 1week
Payment Terms: T/T
Supply Ability: 10000 PCS
Product Description
Product Image
Contact Gender
female
Wiring Method
Solder
Mounting Method
panel/PCB mounting
shielded
shielded
Key Features
Product Overview

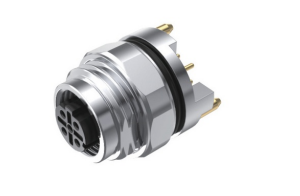

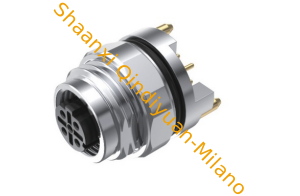

The M12 circular sealed connector uses X-coding for mating-error prevention. This configuration is a femalepanel-mount plug, providing excellent mechanical stability and electrical continuity for durable, reliable connections in harsh industrial environments.

Key Technical specifications
Rated voltage 50V AC / 60V DC
Rated current 0.5A
Degree of protection IP67, when mated
Operating temperature Connector: -45℃ ~ +115℃
Contact resistance ≤ 3 mΩ
Insulation resistance ≥ 100 MΩ
Mechanical endurance ≥ 500 mating cycles
Rated impulse voltage 500V / 800V / 1500V / 2500V
Shell material nickel-plated brass / nickel-plated zinc alloy
Insulator material PA66 (UL 94-V0)
Contact material gold-plated brass
Dimensional drawing
Product Part-number designationBreakdown
M12

Product type: M12 circular connector

X8

XCoding / 8 contacts (Number of contacts)

BX

panel-mount plug

Ordering information
Model Product type Coding Number of contacts Wiring Method
M12-X8-BX front-mounted flange receptacle, female contacts, shielded, solder termination X 08 contacts Solder


  • Standard M12 threaded coupling mechanism, compliant with IEC 61076-2-101
  • Available in shielded versions, 360° all-metal shieldedhousing, excellent electromagneticinterference immunity (EMI) performance
  • High-grade flame-retardant PA66 Insulator material, rated UL 94 V-0
  • Heavy gold plating on contact surfaces, ensures low Contact resistance (≤3mΩ) and extended mating life
