M12 Circular Connector Waterproof Overmolded Cable Assembly M12-D4-BP-F

1 pcs
MOQ
Negotiable
Price
M12 Circular Connector Waterproof Overmolded Cable Assembly M12-D4-BP-F
Features Gallery Product Description Chat Now
Features
Specifications
Controltype: Programmable Logic Controller (PLC), Distributed Control System (DCS), SCADA
Certifications: CE, UL, RoHS
Service: 24 Hours Online Service
Basic Infomation
Model Number: M12-D4-BP-F
Payment & Shipping Terms
Packaging Details: pieces
Delivery Time: 1week
Payment Terms: T/T
Supply Ability: 1000 pcs
Product Description
Product Image
Contact Gender
female
Wiring Method
PCB pins
Mounting Method
panel/PCB mounting
shielded
shielded
Key Features
Product Overview

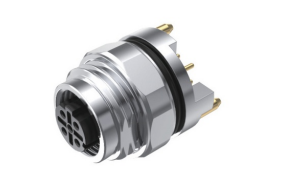

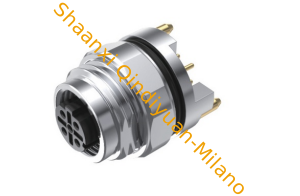

The M12 circular sealed connector uses D-coding for mating-error prevention. This configuration is a femalesealed snap-in panel-mount plug, providing excellent mechanical stability and electrical continuity for durable, reliable connections in harsh industrial environments.

Key Technical specifications
Rated voltage
250V
Rated current
4A
Degree of protection
IP67, when mated
Operating temperature
Connector: -45℃ ~ +115℃
Contact resistance
≤ 3 mΩ
Insulation resistance
≥ 100 MΩ
Mechanical endurance
≥ 500 mating cycles
Rated impulse voltage
500V / 800V / 1500V / 2500V
Shell material
nickel-plated brass / nickel-plated zinc alloy
Insulator material
PA66 (UL 94-V0)
Contact material
gold-plated brass
Dimensional drawing
Product Part-number designationBreakdown
M12
Product type: M12 circular connector
D4
DCoding / 4 contacts (Number of contacts)
BP-F
sealed snap-in panel-mount plug
Ordering information
Model Product type Coding Number of contacts Wiring Method
M12-D4-BP-F front-mounted flange receptacle, female contacts, shielded, PCB termination D 04 contacts PCB pins
M12-D5-BP-F Same as above D 05 contacts PCB pins
Technical specifications are subject to final engineering confirmation.
Page 24
  • Standard M12 threaded coupling mechanism, compliant with IEC 61076-2-101
  • Available in shielded versions, 360° all-metal shieldedhousing, excellent electromagneticinterference immunity (EMI) performance
  • High-grade flame-retardant PA66 Insulator material, rated UL 94 V-0
  • Heavy gold plating on contact surfaces, ensures low Contact resistance (≤3mΩ) and extended mating life
