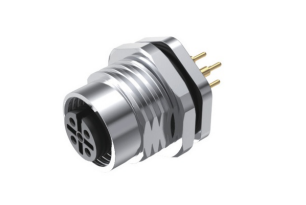

M12 Circular Connector Waterproof Overmolded Cable Assembly M12-A05-CP-Q

1 pcs
MOQ
Negotiable
Price
M12 Circular Connector Waterproof Overmolded Cable Assembly M12-A05-CP-Q
Features Gallery Product Description Chat Now
Features
Specifications
Programminglanguage: Ladder Logic, Function Block Diagram
Material: Industrial Grade Plastic And Metal
Mountingtype: DIN Rail / Panel Mount
Basic Infomation
Model Number: M12-A05-CP-Q
Payment & Shipping Terms
Packaging Details: pieces
Delivery Time: 1week
Payment Terms: T/T
Supply Ability: 10000 PCS
Product Description
Product Image

Contact Gender

female

Wiring Method

PCB pins

Mounting Method

panel/PCB mounting

shielded

unshielded

Key Features
Product Overview

The M12 circular sealed connector uses A-coding for mating-error prevention. This configuration is a femalecompact straight male connector, providing excellent mechanical stability and electrical continuity for durable, reliable connections in harsh industrial environments.

Key Technical specifications

Rated voltage

250V / 60V / 30V

Rated current

4A / 2A / 1.5A

Degree of protection

IP67, when mated

Operating temperature

Connector: -45℃ ~ +115℃

Contact resistance

≤ 3 mΩ

Insulation resistance

≥ 100 MΩ

Mechanical endurance

≥ 500 mating cycles

Rated impulse voltage

500V / 800V / 1500V / 2500V

Shell material

nickel-plated brass / nickel-plated zinc alloy

Insulator material

PA66 (UL 94-V0)

Contact material

gold-plated brass

Dimensional drawing
Product Part-number designationBreakdown

M12

Product type: M12 circular connector

A05

ACoding / 05 contacts (Number of contacts)

CP-Q

compact straight male connector

Ordering information
Model Product type Coding Number of contacts Wiring Method
M12-A05-CP-Q front-mounted flange receptacle, female contacts, PCB termination A 05 contacts PCB pins
M12-A08-CP-Q Same as above A 08 contacts PCB pins
