M12 Circular Connector Waterproof Overmolded Cable Assembly M12-A17-CP-D

1 pcs
MOQ
Negotiable
Price
M12 Circular Connector Waterproof Overmolded Cable Assembly M12-A17-CP-D
Features Gallery Product Description Chat Now
Features
Specifications
Payment Term: Paypal\TT\Western Union\ Trade Assurance
Power Supply: 24V DC / 110V AC / 220V AC
Ip Level: IP65
Compliancestandards: CE, UL, RoHS
Basic Infomation
Model Number: M12-A17-CP-D
Payment & Shipping Terms
Packaging Details: pieces
Delivery Time: 1week
Payment Terms: T/T
Supply Ability: 10000 pcs
Product Description

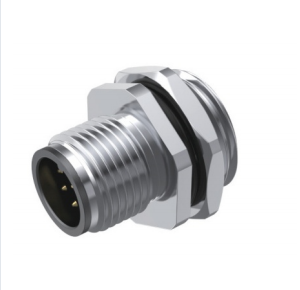

Product Image

Contact Gender

male

Wiring Method

PCB pins

Mounting Method

panel/PCB mounting

shielded

unshielded

Key Features
Product Overview

The M12 circular sealed connector uses A-coding for mating-error prevention. This configuration is a malestraight male connector with latch, providing excellent mechanical stability and electrical continuity for durable, reliable connections in harsh industrial environments.

Key Technical specifications

Rated voltage

250V / 60V / 30V

Rated current

4A / 2A / 1.5A

Degree of protection

IP67, when mated

Operating temperature

Connector: -45℃ ~ +115℃

Contact resistance

≤ 3 mΩ

Insulation resistance

≥ 100 MΩ

Mechanical endurance

≥ 500 mating cycles

Rated impulse voltage

500V / 800V / 1500V / 2500V

Shell material

nickel-plated brass / nickel-plated zinc alloy

Insulator material

PA66 (UL 94-V0)

Contact material

gold-plated brass

Dimensional drawing
Product Part-number designationBreakdown

M12

Product type: M12 circular connector

A17

ACoding / 17 contacts (Number of contacts)

CP-D

straight male connector with latch

Ordering information
Model Product type Coding Number of contacts Wiring Method
M12-A17-CP-D front-mounted flange receptacle, male contacts, PCB termination A 17 contacts PCB pins


  • Standard M12 threaded coupling mechanism, compliant with IEC 61076-2-101
  • Available in unshielded versions, high-strength all-plastic or metal housing, lightweight and durable
  • High-grade flame-retardant PA66 Insulator material, rated UL 94 V-0
  • Heavy gold plating on contact surfaces, ensures low Contact resistance (≤3mΩ) and extended mating life
