M12 Circular Connector Waterproof Overmolded Cable Assembly M12-A3-PP

1 pcs
MOQ
Negotiable
Price
M12 Circular Connector Waterproof Overmolded Cable Assembly M12-A3-PP
Features Gallery Product Description Chat Now
Features
Specifications
Warrantyperiod: 1 To 3 Years
Integrationcapability: SCADA, HMI, MES Systems
Safetyfeatures: Emergency Stop, Overload Protection
Basic Infomation
Model Number: M12-A3-PP
Payment & Shipping Terms
Packaging Details: pieces
Delivery Time: 1week
Payment Terms: T/T
Supply Ability: 1000 pcs
Product Description

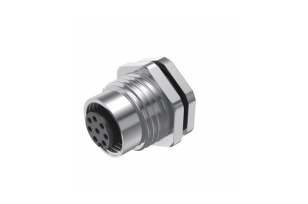

Product Image

Key Features

  • Standard M12 threaded coupling mechanism, compliant with IEC 61076-2-101
  • Available in unshielded versions, high-strength all-plastic or metal housing, lightweight and durable
  • High-grade flame-retardant PA66 Insulator material, rated UL 94 V-0
  • Heavy gold plating on contact surfaces, ensures low Contact resistance (≤3mΩ) and extended mating life

Product Overview

The M12 circular sealed connector uses A-coding for mating-error prevention. This configuration is a male panel-mount plug, providing excellent mechanical stability and electrical continuity for durable, reliable connections in harsh industrial environments.

Key Technical Specifications

Contact Gendermale
Wiring MethodPCB pins
Mounting Methodpanel/PCB mounting
Shieldingshielded / unshielded
Rated voltage250V / 60V / 30V
Rated current4A / 2A / 1.5A
Degree of protectionIP67, when mated
Operating temperatureConnector: -45℃ ~ +115℃
Contact resistance≤ 3 mΩ
Insulation resistance≥ 100 MΩ
Mechanical endurance≥ 500 mating cycles
Rated impulse voltage500V / 800V / 1500V / 2500V
Shell materialnickel-plated brass / nickel-plated zinc alloy
Insulator materialPA66 (UL 94-V0)
Contact materialgold-plated brass

Dimensional Drawing

Product Part-number Designation Breakdown

M12Product type: M12 circular connector
A3A Coding / 3 contacts (Number of contacts)
PPpanel-mount plug

Ordering Information

Model Product type Coding Number of contacts Wiring Method
M12-A3-PP front-mounted flange receptacle, female contacts, unshielded, solder termination rear-mounted flange receptacle, male contacts, unshielded, PCB termination A 03 contacts PCB pins
M12-A4-PP Same as above A 04 contacts PCB pins
M12-A5-PP Same as above A 05 contacts PCB pins
M12-A8-PP Same as above A 08 contacts PCB pins
