M12 Circular Connector Waterproof Overmolded Cable Assembly M12-A4-ES

1 pcs
MOQ
Negotiable
Price
M12 Circular Connector Waterproof Overmolded Cable Assembly M12-A4-ES
Features Gallery Product Description Chat Now
Features
Specifications
Pixel Size: 2.2 M * 2.2 M
Contact Rating: 6A (24V DC/240V AC)
Inputvoltage: 24V DC / 110V AC / 220V AC
Basic Infomation
Model Number: M12-A4-ES
Payment & Shipping Terms
Packaging Details: pieces
Delivery Time: 1week
Payment Terms: T/T
Supply Ability: 10000 PCS
Product Description

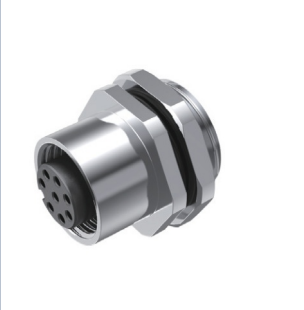

M12 ACoding female straight female connector

M12-A4-ES

M12 Connector Technical Manual

Key Features

  • Standard M12 threaded coupling mechanism, compliant with IEC 61076-2-101
  • Available in unshielded versions, high-strength all-plastic or metal housing, lightweight and durable
  • High-grade flame-retardant PA66 Insulator material, rated UL 94 V-0
  • Heavy gold plating on contact surfaces, ensures low Contact resistance (≤3mΩ) and extended mating life

Product Overview

The M12 circular sealed connector uses A-coding for mating-error prevention. This configuration is a femalestraight female connector, providing excellent mechanical stability and electrical continuity for durable, reliable connections in harsh industrial environments.

Product Specifications

Series M12
Coding A
Number of contacts 4 contacts
Configuration straight female connector
Contact Gender female
Wiring Method Solder
Mounting Method panel/PCB mounting
Shielded unshielded

Key Technical specifications

Parameter Value
Rated voltage 250V / 60V / 30V
Rated current 4A / 2A / 1.5A
Degree of protection IP67, when mated
Operating temperature Connector: -45℃ ~ +115℃
Contact resistance ≤ 3 mΩ
Insulation resistance ≥ 100 MΩ
Mechanical endurance ≥ 500 mating cycles
Rated impulse voltage 500V / 800V / 1500V / 2500V
Shell material nickel-plated brass / nickel-plated zinc alloy
Insulator material PA66 (UL 94-V0)
Contact material gold-plated brass

Product Part-number designation Breakdown

Part Description
M12 Product type: M12 circular connector
A4 ACoding / 4 contacts (Number of contacts)
ES straight female connector

Ordering information

Model Product type Coding Number of contacts Wiring Method
M12-A4-ES rear-mounted flange receptacle, female contacts, unshielded, solder termination A 04 contacts Solder
M12-A4-WS-T Same as above A 04 contacts Solder
M12-A5-ES Same as above A 05 contacts Solder
M12-A5-WS-T Same as above A 05 contacts Solder
M12-A8-WS-N Same as above A 08 contacts Solder
M12-A8-WS-T Same as above A 08 contacts Solder
M12-A8-WS-T Same as above A 08 contacts Solder
M12-A12-WS-T Same as above A 12 contacts Solder
M12-A17-WS-N Same as above A 17 contacts Solder
M12-A17-WS-T Same as above A 17 contacts Solder
