M12 Circular Connector Waterproof Overmolded Cable Assembly M12-A3-WP-1

1 pcs
MOQ
Negotiable
Price
M12 Circular Connector Waterproof Overmolded Cable Assembly M12-A3-WP-1
Features Gallery Product Description Chat Now
Features
Specifications
Width: 22.5 Mm
Weight: 0.5 To 1.5 Kg
Humidityrange: 5% To 95% Non-condensing
Basic Infomation
Model Number: M12-A3-WP-1
Payment & Shipping Terms
Packaging Details: pieces
Delivery Time: 5-7days
Payment Terms: T/T
Supply Ability: 1000 pcs
Product Description

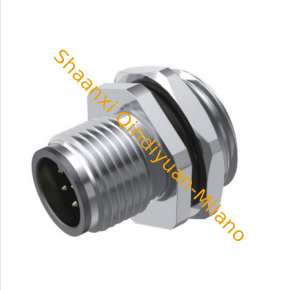

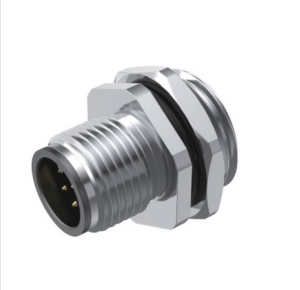

M12 A Coding double-ended right-angle male connector

M12-A3-WP-1 | Shaanxi Qindiyuan

M12 Connector Technical Manual

Series: M12
Coding: A
Number of contacts: 3 contacts
Configuration: right-angle male connector
Contact Gender: double-ended
Wiring Method: Solder
Mounting Method: cable-mounted
Shielding: unshielded

Product Overview

The M12 circular sealed connector uses A-coding for mating-error prevention. This configuration is a double-ended right-angle male connector, providing excellent mechanical stability and electrical continuity for durable, reliable connections in harsh industrial environments.

Key Features

  • Standard M12 threaded coupling mechanism, compliant with IEC 61076-2-101
  • Available in unshielded versions, high-strength all-plastic or metal housing, lightweight and durable
  • High-grade flame-retardant PA66 Insulator material, rated UL 94 V-0
  • Heavy gold plating on contact surfaces, ensures low Contact resistance (≤3mΩ) and extended mating life

Key Technical specifications

Specification Value
Rated voltage 250V / 60V / 30V
Rated current 4A / 2A / 1.5A
Degree of protection IP67, when mated
Operating temperature Connector: -45℃ ~ +115℃
Contact resistance ≤ 3 mΩ
Insulation resistance ≥ 100 MΩ
Mechanical endurance ≥ 500 mating cycles
Rated impulse voltage 500V / 800V / 1500V / 2500V
Shell material nickel-plated brass / nickel-plated zinc alloy
Insulator material PA66 (UL 94-V0)
Contact material gold-plated brass

Product Part-number designation Breakdown

Part Description
M12 Product type: M12 circular connector
A3 A Coding / 3 contacts (Number of contacts)
WP-1 right-angle male connector

Ordering information

Model Product type Coding Number of contacts Wiring Method
M12-A3-WP-1 M12 circular sealed connector A 03 contacts Solder
M12-A3-WP Same as above A 03 contacts Solder
M12-A4-EP Same as above A 04 contacts Solder
M12-A4-WP Same as above A 04 contacts Solder
M12-A5-EP Same as above A 05 contacts Solder
M12-A5-WP Same as above A 05 contacts Solder
M12-A8-EP Same as above A 08 contacts Solder
M12-A8-WP Same as above A 08 contacts Solder
