FANUC A20B‑1003‑0890 Power Supply Board, CNC PCB Circuit Board

1. Product Overview

The FANUC A20B‑1003‑0890 is an original‑equipment‑manufacturer internal power‑distribution printed‑circuit‑board for FANUC legacy CNC control cabinets. It converts input supply voltage into multiple stable low‑voltage DC power rails (+5V, ±15V) to feed the CNC main CPU board, memory modules, I/O interface boards, display panel and other internal control components. As the energy‑supply core inside the CNC system, it undertakes power filtering, distribution and basic circuit protection. This spare‑part is widely used for on‑site maintenance, fault‑board replacement and machine‑tool retrofitting, solving typical failures such as CNC no‑boot‑up, unexpected system shutdown, unstable power output, flickering screen and power‑related CNC alarm codes.

2. Core Advantages & Key Features

✅ Multi‑Channel Stable DC Power Distribution Precision‑engineered voltage‑regulation circuits deliver low‑ripple, steady DC output for every functional board, preventing system crashes caused by voltage fluctuation during heavy‑load machining.

✅ Built‑in Electrical Safety Protection Circuits Integrated over‑current, over‑voltage and short‑circuit protection hardware, automatically cuts off power supply once an electrical anomaly occurs, protecting high‑cost CPU, servo and memory boards from permanent burnout damage.

✅ Industrial‑Grade FR‑4 Flame‑Retardant PCB Substrate High‑temperature‑resistant circuit‑board base material, designed for the enclosed, heat‑generating environment of CNC electrical cabinets, guarantees reliable continuous long‑time operation.

✅ Gold‑Plated Plug‑in Connector Terminals Oxidation‑resistant gold‑plated pins reduce contact resistance; maintains stable power transmission under long‑term workshop vibration and repeated temperature cycling.

✅ Direct Plug‑and‑Play Replacement, Zero‑Rewiring Needed Standard mechanical dimensions and factory‑fixed pin‑out definition, supports fast swap‑out installation during maintenance, drastically cuts CNC machine‑tool downtime and production‑loss costs.

✅ EMC‑Optimized Circuit Layout, ECE‑R10 Compliant Carefully separated power‑trace and signal‑trace routing suppresses internal electromagnetic crosstalk noise; fully satisfies ECE R10 electromagnetic‑compatibility regulations and EU CE export safety requirements.

✅ On‑Board Diagnostic LED Indicator Lights Visible power‑status LED lamps allow maintenance technicians to quickly judge power‑board working status without complex diagnostic software.

3. Technical Parameters

表格

4. Application Industries & Scenarios

Applicable Industries

‑ Precision Mold Manufacturing: Power‑board overhaul for vertical machining‑centers and high‑speed milling equipment ‑ General‑Purpose CNC Machining: Maintenance of CNC lathes, tapping‑milling composite machine‑tools and grinding machines ‑ Automotive Component Production: Spare‑part replacement for CNC production‑line control cabinets on mass‑production workshop floors ‑ Aerospace Precision Hardware: Retrofit and repair of multi‑axis legacy CNC processing equipment ‑ Industrial Automation Maintenance: Fault‑swap service for damaged power‑supply PCBs of FANUC CNC control systems

Text‑Icon‑Image Combined Layout Guidance

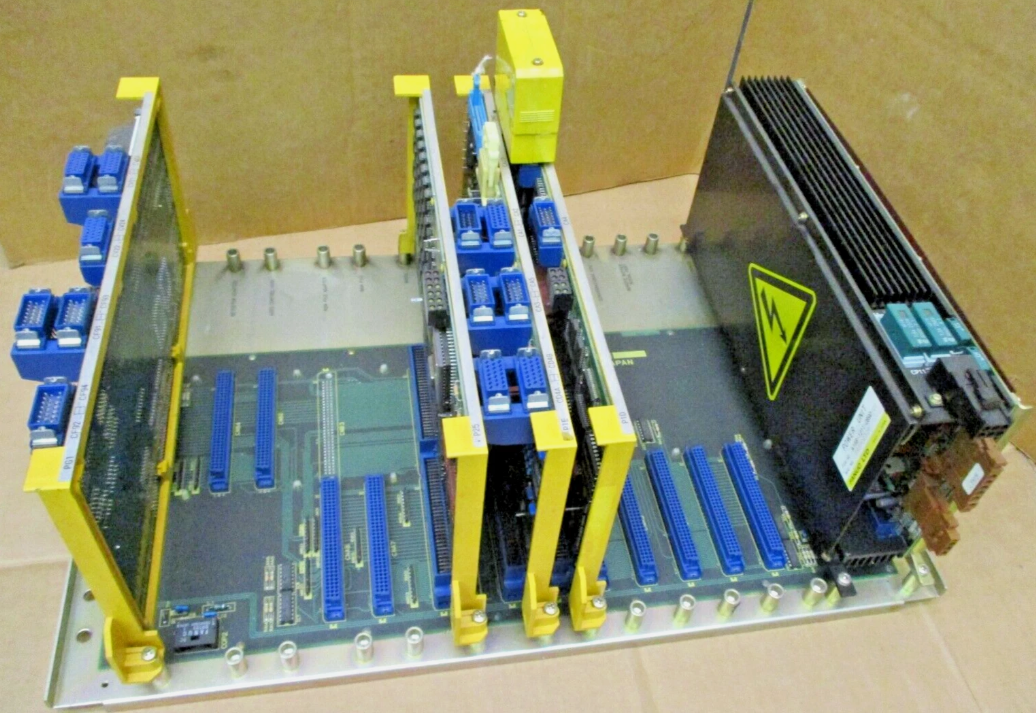

✅ Application‑Scene Reference Image Photograph showing A20B‑1003‑0890 power‑supply PCB slotted inside the CNC electrical cabinet back‑plane rack, connected to the main CPU board and bus cables, displaying its real‑world installation environment.

✅ Warehouse‑Storage Reference Image Original FANUC circuit‑board sealed inside anti‑static shielding bag, packed within shock‑resistant export carton, stored in a dust‑free, constant‑temperature industrial spare‑parts warehouse.

5. ECE Compliance Statement

The FANUC A20B‑1003‑0890 Power Supply Board strictly complies with ECE R10 electromagnetic‑compatibility regulations and EU CE safety directives. Factory‑quality inspection fully verifies insulation strength, output‑voltage stability, surge‑resistance and anti‑interference electromagnetic‑performance indicators. Permanent laser‑etched model marking printed on the PCB surface guarantees complete product traceability, meets global industrial‑safety standards and supports cross‑border international shipment, commodity inspection and customs‑clearance procedures.
