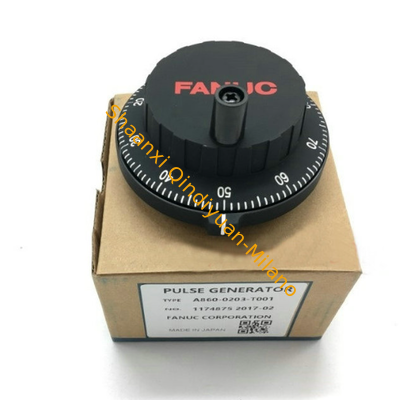

FANUC A860-0203-T001 Manual Pulse Generator CNC Handwheel with 100 PPR Quadrature A/B-phase Signal and IP54 Protection

The FANUC A860‑0203‑T001 is a panel‑mount Manual Pulse Generator (MPG, CNC electronic handwheel) designed for FANUC CNC control systems. This precision instrument converts manual rotary‑knob rotation into quadrature A/B phase digital pulse signals and transmits them to the CNC controller.

Operators utilize this handwheel for manual jog operations, precise axis positioning, tool setting, and fine‑tuning workpiece offsets during machine‑tool debugging, workpiece alignment, and mold finishing applications. It is widely used for new‑machine panel assembly, replacement of defective handwheels, and CNC equipment retrofitting on machining centers and CNC lathes.

The unit effectively resolves common operational faults including missing pulse output, coordinate jitter, handwheel no‑response, and signal‑loss alarms.

• High‑resolution Incremental Pulse Output: 100 pulses per full rotation with quadrature A/B‑phase signal output, supporting multi‑gear feed‑magnification adjustment for ultra‑fine manual positioning accuracy in tool‑setting and finishing‑process debugging.
• Clear Rotary Tactile Feedback & Compact Panel‑mount Structure: Light‑weight thin‑body design with 72 mm panel cut‑out dimension, featuring crisp rotation click‑feeling and integrated scale dial for intuitive rotation reading. Easy panel installation without extra modification.
• Strong Anti‑interference Long‑distance Signal Transmission: TTL‑differential pulse‑signal output with built‑in signal filtering circuit ensures stable pulse transmission over long wiring distances and resists electromagnetic noise inside electrical cabinets.
• IP54 Industrial‑grade Protection Rating: Effectively blocks workshop dust, coolant splashes, and oil mist, adapting to harsh shop‑floor operating conditions for long‑term continuous usage.
• ECE R10 Compliant EMC Performance: Optimized internal circuit shielding design provides stable signal output under complex industrial electromagnetic environments. Fully complies with ECE R10 electromagnetic‑compatibility regulation and EU CE export standards.
• Seamless System Matching & Convenient Maintenance: Standard pin‑definition and connector compatibility with FANUC 0i‑MD / 0i‑MF / 31i‑B series CNC systems enables direct plug‑and‑play replacement, shortening equipment debugging and maintenance downtime.

• Precision Mold Manufacturing: Vertical machining centers and high‑speed milling equipment for manual tool‑setting and fine‑positioning operations
• General CNC Machining: CNC lathes, tapping‑milling centers, and automatic‑tool‑change machine‑tool operation panels
• Automotive Parts Manufacturing: CNC production‑line equipment commissioning and workpiece alignment procedures
• Aerospace Precision Hardware: Multi‑axis CNC machine‑tool manual fine‑tuning applications
• Equipment Maintenance & Retrofit: Faulty MPG handwheel replacement for existing FANUC CNC machine‑tools
