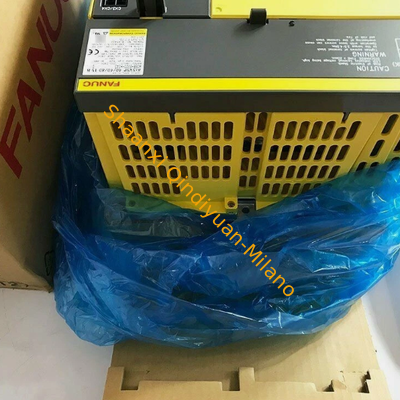

FANUC βiSVSP 3-Axis Integrated Servo Amplifier with 80A Rated Output and FSSB Interface

1
MOQ
200$
Price
FANUC βiSVSP 3-Axis Integrated Servo Amplifier with 80A Rated Output and FSSB Interface
Features Gallery Product Description Chat Now
Features
Specifications
Communication Interface: Analog I/O Interfaces
Numberofinputs: 16 Digital Inputs
Softwarecompatibility: Supports SCADA And HMI Software
Integration: SCADA, MES Systems
Protocolsupport: Ethernet/IP, Modbus TCP, PROFINET
Sensing Range: -
Conductor Material: Copper
Safetystandardscompliance: IEC 61508, ISO 13849
Power Consumption: 3.5 VA (AC) / 2.0 W (DC)
Power Phase Number: Three Phase
Controltype: Programmable Logic Controller (PLC)
Shipping Term: TNT DHL FEDEX EMS UPS
Programminglanguage: Ladder Logic, Function Block, Structured Text
Numberofoutputs: 16 Digital Outputs
Memory: ROM
Highlight:

FANUC βiSVSP 3-axis servo amplifier

,

80A rated servo amplifier

,

FSSB interface servo amplifier
Basic Infomation
Place of Origin: China
Brand Name: FANUC
Certification: CO
Model Number: A06B-6320-H364
Payment & Shipping Terms
Packaging Details: Orijinal
Delivery Time: 3-5 days
Payment Terms: T/T
Product Description
FANUC A06B-6320-H364 ORIGINAL SERVO DRIVE AMPLIFIERS
Based on available information, the FANUC A06B-6320-H364 is a high-performance, integrated multi-axis servo amplifier. Its official model designation is βiSVSP 80/80/80-18-B, indicating a compact, all-in-one unit that combines three powerful servo axes and a spindle drive in a single module.
This model is part of FANUC's βi-B (Beta i-B) series, which uses a 200VAC power supply and communicates with the CNC controller via the high-speed FSSB (FANUC Serial Servo Bus) interface.
⚙️Technical Specifications
Parameter Specification
Official Model βiSVSP 80/80/80-18-B
Type Integrated 3-Axis Servo + Spindle Amplifier Module
Rated Output Current 80A / 80A / 80A (for L/M/N axes)
Rated Output Power 8 kW / 8 kW / 8 kW (for L/M/N axes)
Spindle Section Drives a spindle motor with a rating of up to 91A
Main Input Voltage 3-Phase AC 200-240V (-15%, +10%)
Auxiliary Power 24V DC ±10%
Power Capacity (Main Circuit) 29 kVA
Cooling Forced-air cooling with internal fan
Communication FSSB (FANUC Serial Servo Bus) Interface
💡Features & Applications
  • Integrated Design: The "all-in-one" design provides a space-saving solution by combining the power supply and drive functions for up to three servo axes and one spindle axis into a single unit, simplifying wiring and cabinet layout.
  • High Power & Precision: With 80A per axis, this unit is designed for demanding multi-axis CNC machines such as machining centers and lathes that require high-power servo motors and synchronized, high-precision motion control.
  • Maintenance: The module is designed for easy maintenance. Replacement plastic housings are available, allowing technicians to restore units with physically damaged exteriors without needing a full replacement.
⚠️Important Information Sources
The detailed specifications and descriptions in this summary are compiled from industrial parts suppliers and repair service providers, not from an official FANUC technical data sheet. For definitive engineering specifications, wiring diagrams, and commissioning details, you must consult the official FANUC technical documentation for the βiSVSP 80/80/80-18-B (A06B-6320-H364).
