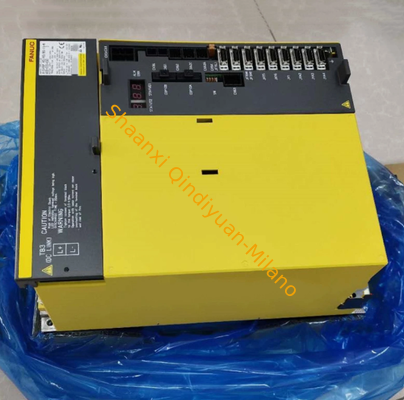

FANUC A06B-6320-H344 3-Axis Control Servo Drive Amplifier with 29 kVA Power Capacity and FSSB Interface

1
MOQ
200$
Price
FANUC A06B-6320-H344 3-Axis Control Servo Drive Amplifier with 29 kVA Power Capacity and FSSB Interface
Features Gallery Product Description Chat Now
Features
Specifications
Max Switching Current: 6 A
Sensor Type: CMOS
Scalability: Modular Expansion Supported
Programminglanguage: Ladder Logic, Function Block Diagram
Operatingvoltage: Up To 36 KV
Communication Interface: PROFINET + PROFIBUS DP
Width: 22.5 Mm
Resolution: 1024*768
Category: Automation & Control Systems
Operatingtemperature: -20°C To 60°C
Communicationprotocol: Modbus, Ethernet/IP, Profibus
Output Voltage: 24V DC
Dynamic Range: 69.2 DB
Mfg Date Code: /
Safetystandardscompliance: IEC 61508, ISO 13849
Highlight:

FANUC servo drive amplifier 3-axis

,

FANUC A06B-6320-H344 FSSB interface

,

servo drive amplifier 29 kVA power
Basic Infomation
Place of Origin: China
Brand Name: FANUC
Certification: CO
Model Number: A06B-6320-H344
Payment & Shipping Terms
Packaging Details: Orijinal
Delivery Time: 3-5 days
Payment Terms: T/T
Product Description
FANUC A06B-6320-H344 ORIGINAL SERVO DRIVE AMPLIFIERS
The FANUC A06B-6320-H344 is a multi-axis servo/spindle amplifier. Its official model name is β iSVSP P40/40/80-18-B, indicating an integrated, all-in-one drive unit that combines three axes of control in a single module.
Core Identification
  • Part Number: A06B-6320-H344
  • Official Model: βiSVSP-B 40/40/80-18-B
  • Product Series: FANUC βi-B (Beta i-B) Series
Key Specifications & Features
The following technical details are compiled from multiple third-party sources and should be verified against official FANUC documentation for engineering use.
Parameter Specification
Type Integrated 3-Axis Servo/Spindle Amplifier Module
Configuration Two 40A Servo Axes + One 80A/91A Spindle Axis
Rated Output Power 4 kW / 4 kW / 8 kW (for Servo/Spindle axes)
Main Input Voltage 3-Phase AC 200-240V (-15%, +10%)
Auxiliary Power 24V DC ±10%
Power Capacity 29 kVA
Communication FSSB (FANUC Serial Servo Bus) Interface
Cooling Forced-air cooling with internal fan
Features & Applications
  • Integrated Design: The "all-in-one" design provides a compact, space-saving solution by combining the power supply and drive functions for up to three servo axes and one spindle axis into a single unit.
  • Applications: Primarily designed for high-performance CNC machine tools, such as compact machining centers and lathes, where cost-effectiveness and precision are key.
  • Precision & Efficiency: Supports FANUC's advanced servo control (HRV) for high-speed, high-precision operation, and is designed with low power loss for improved energy efficiency.
  • Maintenance: Designed for easy maintenance with features like slide-in board and fan replacement.
