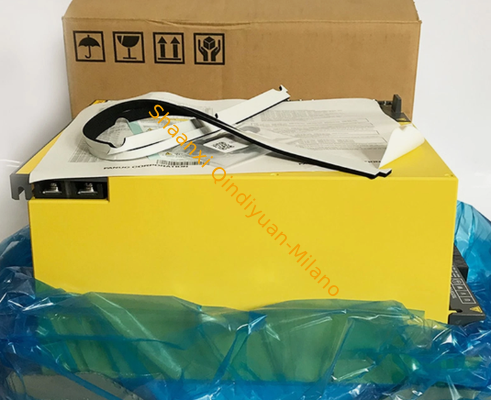

FANUC A06B-6320-H343 3-Axis Control Servo Drive Amplifier with 40A/80A/80A Output and Fiber Optic Communication

1
MOQ
200$
Price
FANUC A06B-6320-H343 3-Axis Control Servo Drive Amplifier with 40A/80A/80A Output and Fiber Optic Communication
Features Gallery Product Description Chat Now
Features
Specifications
Communicationprotocols: Modbus, Profibus, Ethernet/IP, OPC UA
Material: Industrial Grade Plastic And Metal
Mounting: DIN Rail / Panel Mount
Installationtype: DIN Rail Mounting
Mpu Points: 12 (8DI + 4DO)
Mountingtype: DIN Rail / Panel Mount
Humidityrange: 5% To 95% Non-condensing
Packing: Carton
Chip Model: EV76C560
Weight: 500 Grams
Width: 22.5 Mm
Operating Voltage: 24V DC
Softwarecompatibility: Supports SCADA And HMI Software
Highlight:

FANUC 3-axis servo drive amplifier

,

40A 80A servo drive with fiber optic

,

industrial servo amplifier with fiber communication
Basic Infomation
Place of Origin: China
Brand Name: FANUC
Certification: CO
Model Number: A06B-6320-H343
Payment & Shipping Terms
Packaging Details: Orijinal
Delivery Time: 3-5 days
Payment Terms: T/T
Product Description
FANUC A06B-6320-H343 ORIGINAL SERVO DRIVE AMPLIFIERS

The FANUC A06B-6320-H343 is a multi-axis servo/spindle amplifier. The official FANUC model name is βiSVS P40/40/80-15-B, indicating it integrates drive functions for three axes within a single unit.

Core Identification
  • Model Number: A06B-6320-H343
  • Official Type: βiSVS P40/40/80-15-B
  • Product Series: Belongs to the FANUC βi-B (Beta i-B) Series of servo amplifiers
Key Specifications

The amplifier's output is configured to drive two servo axes and one spindle axis. Please note that one source describes the current distribution as 40A / 80A / 80A, while another identifies it as a configuration of two 40A servo axes and one 80A spindle axis.

Parameter Specification
Type 3-Axis Servo/Spindle Amplifier Module
Rated Output Current 40A / 80A / 80A (or 2 x 40A Servo + 1 x 80A Spindle)
Rated Output Power 4 kW / 8 kW / 8 kW
Main Input Voltage 3-Phase 200–240 VAC
Auxiliary Power 24 VDC
Power Capacity (Main Circuit) 22 kVA
Cooling Forced-air cooling with built-in fan
Approx. Weight 10.0 kg - 19 kg
Features & Applications
  • Integrated Design: Combines control for multiple axes in one module, saving cabinet space and simplifying wiring compared to multiple single-axis units
  • Applications: Designed for high-precision CNC machine tools and industrial automation requiring multi-axis control. Uses a FANUC CNC bus (fiber optic) interface for communication with the controller
  • Protection: Built-in regenerative braking, overload, and overheat protection
Important Note on Information Sources

The detailed technical information (specifications, dimensions, exact current ratings) in the search results comes from third-party industrial parts suppliers, not from an official FANUC technical data sheet. For definitive engineering data, commissioning, and maintenance, it is critical to consult the official FANUC documentation for the βiSVS P40/40/80-15-B (A06B-6320-H343).
