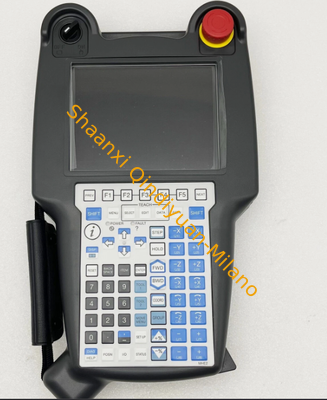

FANUC A05B-2255-C102 Teach Pendant with 7-inch color LCD, Deadman safety switches, and Ethernet/IP communication

The FANUC A05B-2255-C102 is a portable teach pendant used for robot programming and control in the FANUC R-30iB series. It provides an intuitive human-machine interface for creating and editing robot programs through manual robot guidance.

• Safety Components: Critical for operation, including yellow Deadman safety switches that require precise three-position functionality
• Display & Touch Interface: 7-inch color LCD with 800 x 480 resolution requiring panel replacement and backlight driver circuit repair
• Keypad & Controls: QWERTY keyboard, 6-axis joystick, and function keys requiring membrane replacement and calibration
• Mainboard & Power Circuit: 24V DC input with Ethernet/IP, USB, RS-232 interfaces requiring power regulation diagnosis
• Communication Cable: Subject to wear from repeated flexing, requiring continuity testing and connector inspection

1. Quote & Order: Instant price selection with secure online checkout
2. Ship Unit: Free prepaid shipping label provided for non-freight repairs
3. Diagnosis & Repair: Component-level troubleshooting and replacement
4. Testing: 100% tested with state-of-the-art equipment
5. Return: Track repair status online from start to finish

• Keep the pendant in a clean, dry environment when not in use
• Use a protective holster to prevent drops and impact
• Regularly inspect the cable for wear, kinks, or exposed wires
• Clean connectors periodically to prevent oxidation
• Replace worn keypad membranes proactively

Several vendors offer repair, refurbishment, and exchange services for the A05B-2255-C102, including ICR Services, CNC Tools LLC, and various specialized repair centers.
