FANUC A05B-2256-C100 Robot Teach Pendant with 6.4-inch to 10.4-inch Color TFT LCD Touchscreen IP54 or IP65 Protection and Deadman Switch

1
MOQ
100$
Price
FANUC A05B-2256-C100 Robot Teach Pendant with 6.4-inch to 10.4-inch Color TFT LCD Touchscreen IP54 or IP65 Protection and Deadman Switch
Features Gallery Product Description Chat Now
Features
Specifications
Operatingtemperature: -20°C To 60°C
Power Supply: 24V DC / 110V AC / 220V AC
Industry: Manufacturing
Compatibility: Compatible With SCADA And HMI Systems
Inputtype: Digital And Analog Inputs
Safetystandardscompliance: IEC 61508, ISO 13849
Operating Voltage: 24 V AC/DC
Powerconsumption: 10 W
Category: Automation And Control Systems
Outputvoltage: 24V DC
Productname: Industrial Control Automation
Applicationindustry: Manufacturing, Process Control, Robotics
Installationtype: Panel Mount / DIN Rail
Control Type: Programmable Logic Controller (PLC)
Output Points: 16DO
Basic Infomation
Place of Origin: China
Brand Name: FANUC
Certification: CO
Model Number: A05B-2256-C100
Payment & Shipping Terms
Packaging Details: Orijinal
Delivery Time: 3-5 days
Payment Terms: T/T
Product Description

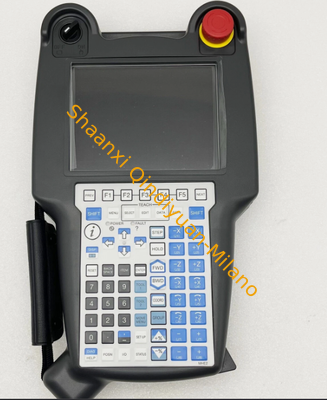

FANUC A05B-2256-C100 ROBOT HANDHELD CONTROLLER
The FANUC A05B-2256-C100 is an iPendant series robot teach pendant, which serves as the primary handheld controller for FANUC industrial robots. It's a sophisticated human-machine interface (HMI) used for programming, manual operation, and system monitoring.
Technical Specifications
Product Type Teach Pendant (Robot Handheld Controller)
Series FANUC iPendant
Display 6.4-inch to 10.4-inch color TFT LCD touchscreen (specifications vary by source)
Input Methods Touchscreen & physical buttons, including a deadman switch, emergency stop, and axis operation keys
Compatibility FANUC R-30iB and R-30iB Plus robot controllers
Protection Class IP54 or IP65 (dustproof and water-resistant)
Weight Approx. 1.2 kg
Model Suffixes Comes with various suffixes like #EMH, #ESW, #EAW; these generally indicate different firmware, key labels, or specific option packages but are functionally identical
Key Features and Functionality
  • Robot Teaching and Programming: Primary device for manually controlling the robot's movements and creating, editing, and debugging programs.
  • Safety-Critical Design: Includes essential safety features, most notably a Deadman (Enable) switch which must be held in the middle position for the robot to move, and a prominent Emergency Stop button that halts all motion when pressed.
  • Robustness for Industry: Designed for challenging factory environments with rugged build that is resistant to dust, moisture, and temperature variations.
  • Versatile Operation: Allows operators to control the robot in different coordinate systems (e.g., Joint, World, User, Tool), which is crucial for precise positioning and movement.
This model is a core component for manual interaction with many FANUC robot systems. Because it's a primary interface, its reliability is essential; various repair services are available for common issues like screen damage, unresponsiveness, or button failure.
