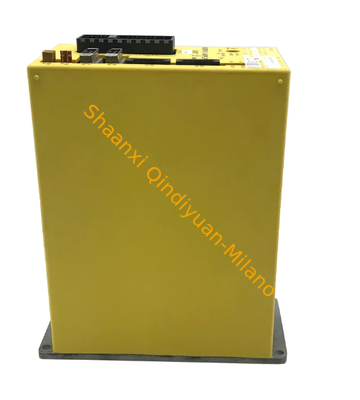

FANUC Beta Series SVU-12 Servo Amplifier with Single-Axis Control and FSSB Optical Interface

1
MOQ
300$
Price
FANUC Beta Series SVU-12 Servo Amplifier with Single-Axis Control and FSSB Optical Interface
Features Gallery Product Description Chat Now
Features
Specifications
Applicationindustry: Manufacturing, Process Control, Robotics
Numberofinputs: 16 To 64
Scalability: Modular Design For Easy Expansion
Operating Voltage: 24 V AC/DC
Output Points: 16DO
Communicationprotocols: Modbus, Profibus, Ethernet/IP, OPC UA
Connectivityoptions: Ethernet, RS-485, Wireless
Protectionrating: IP65
Humidity Range: 5% To 95% Non-condensing
Max Switching Current: 6 A
Memory: 1
Safetystandardscompliance: IEC 61508, ISO 13849
Power Consumption: 3.5 VA (AC) / 2.0 W (DC)
Inputtypes: Digital Input, Analog Input
Material: Industrial-grade Plastic And Metal
Basic Infomation
Place of Origin: China
Brand Name: FANUC
Certification: CO
Model Number: A06B-6093-H111
Payment & Shipping Terms
Packaging Details: Orijinal
Delivery Time: 3-5 days
Payment Terms: T/T
Product Description
FANUC A06B-6093-H111 SERVO ORIGINAL DRIVER AMPLIFIER
The FANUC A06B-6093-H111 is a single-axis Beta Series servo amplifier, also known as the SVU-12, used to drive and control a servo motor in CNC machines and industrial automation systems. It is designed for FANUC's FSSB high-speed serial communication, using an optical interface for connecting to the CNC controller.
Key Specifications
Specification Details
Product Type Servo Amplifier (Servo Drive)
FANUC Series Beta Series, Model SVU-12
Number of Axes Single-Axis
Interface FSSB (FANUC Serial Servo Bus) optical interface
Rated Input 3-phase: 200-240VAC, 3.2A; Single-phase: 220-240VAC, 5.1A
Rated Output 240 VAC, 3.2A
Compatible Motors β1/3000, β2/3000, and some αi series servo motors
Typical Application Precision feed axis control in CNC systems and general automation
Physical Data Approx. 7" x 7" x 9" and weighs around 5 lbs. Other sources list a shipping weight of 2 kg.
Communication and Troubleshooting
This unit uses the FSSB optical interface for high-speed communication with the CNC. If you encounter an alarm, the display can help identify the issue. The table below lists common alarm codes and their meanings.
Alarm Type Code Example Possible Cause
Communication 460, 5134 FSSB disconnection or communication timeout
Amplifier 431, 432, 439 Amplifier overheat, low voltage, or overvoltage
Motor/Pulsecoder 360, 365, 368 Feedback device checksum error, broken LED, or serial data error
This is a specific model that is no longer in production but remains common in industrial applications and is available through the surplus market.
