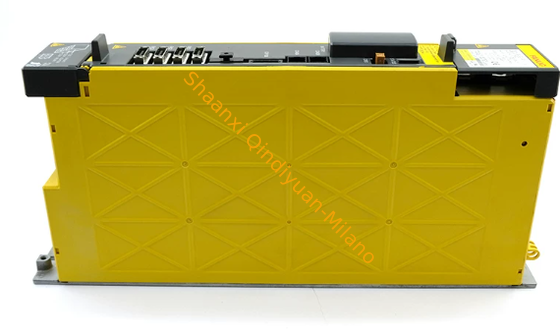

FANUC A06B-6114-H303 3-Axis Servo Amplifier Module with 7.5 kW Power and FSSB Protocol

1
MOQ
200$
Price
FANUC A06B-6114-H303 3-Axis Servo Amplifier Module with 7.5 kW Power and FSSB Protocol
Features Gallery Product Description Chat Now
Features
Specifications
Scalability: Modular Expansion Supported
Numberofoutputs: 16 Digital Outputs
Operatingtemperaturerange: -20°C To 60°C
Numberofi/Ochannels: 16 To 128
Material: Industrial-grade Plastic And Metal
Communication Protocol: Modbus, Ethernet/IP, Profibus
Mpu Points: 12 (8DI + 4DO)
Compatibility: SCADA Systems, HMI Panels
Outputtypes: Digital Output, Analog Output
Max Switching Current: 6 A
Power Supply Voltage: 100 – 240VAC.
Supply Voltage: 24 V DC
Ethernet Ports: 8 To 24 Ports
Dimensions: P
Highlight:

FANUC 3-axis servo amplifier module

,

7.5 kW servo amplifier module

,

FSSB protocol servo amplifier
Basic Infomation
Place of Origin: China
Brand Name: FANUC
Certification: CO
Model Number: A06B-6114-H303
Payment & Shipping Terms
Packaging Details: Orijinal
Delivery Time: 3-5 days
Payment Terms: T/T
Product Description
FANUC A06B-6114-H303 DRIVES ARE IN STOCK
This module is designed for precise, multi-axis motion control in demanding applications like CNC machining and robotics.
Technical Specifications
Specification Detail
Product Type 3-Axis Servo Amplifier Module (AiSV-20/20/20)
Input Voltage 283-339 VDC
Output Voltage 200-240 VAC
Rated Output Current 6.5A per axis (L, M, N axes)
Peak Output Current 20A
Output Frequency Range 0.1 - 800 Hz
Rated Input Power 7.5 kW
Dimensions (WxHxD) 195mm x 300mm x 220mm
Weight Approximately 6.8 kg (15.0 lbs)
Ambient Temp. Range 0°C to 55°C
Ambient Humidity Up to 90% RH (non-condensing)
Key Features & Applications
  • Multi-Axis Control: This drive integrates control for three axes into a single unit, which is ideal for space-saving designs in complex automation systems.
  • High-Power Output: With a 7.5 kW power capacity and a peak output of 30 kW, it is well-suited for medium-to-heavy automation loads that require dynamic acceleration.
  • Advanced Communication: It uses FANUC's high-speed FSSB (Fiber Serial Servo Bus) protocol for rapid and precise communication with the CNC controller.
  • Durable Construction: Engineered to withstand harsh industrial environments, it includes features for effective heat dissipation and stable operation even under continuous duty cycles.
Typical applications include use in CNC machining centers, lathes, industrial robots, and other automated production lines where precise, synchronized motion is critical.
To purchase, you can contact the suppliers listed in the search results. They often offer various purchase options, including outright purchase, service exchange, and repair services.
