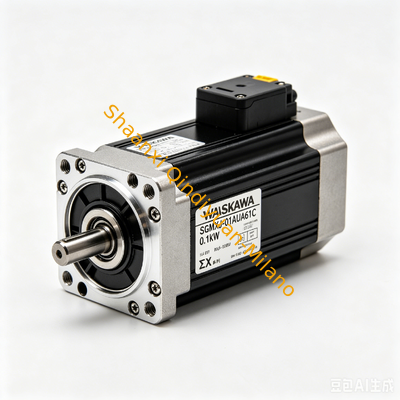

YASKAWA SGMXJ-01AUA61C 0.1kW Σ-X Series Medium Inertia Rotary Servo Motor with 26-bit Battery-less Absolute Encoder

1pcs
MOQ
510-620$
Price
YASKAWA SGMXJ-01AUA61C 0.1kW Σ-X Series Medium Inertia Rotary Servo Motor with 26-bit Battery-less Absolute Encoder
Features Gallery Product Description Chat Now
Features
Specifications
Power Supply: 24V DC / 110V AC / 220V AC
Warrantyperiod: 1 To 3 Years
Protection: I
Powersupply: 24V DC, 110V AC, 220V AC
Compliancestandards: CE, UL, RoHS
Numberofinputs: 16 Digital Inputs
Connectivityoptions: Ethernet, RS-485, Wireless
Outputtype: Relay, Transistor, Analog Output
Touch Panel: A
Humidity Range: 5% To 95% Non-condensing
Ambient Temperature: -35°C To 55°C
Connectivity: Wired, Wireless Options
Manufacturer: Siemens
Power: 2
Width: 22.5 Mm
Basic Infomation
Place of Origin: Japan
Brand Name: YASKAWA
Certification: CO
Model Number: SGMXJ-01AUA61C
Payment & Shipping Terms
Packaging Details: pieces
Delivery Time: 5-8days
Payment Terms: T/T
Supply Ability: 96PCS 1-2weeks
Product Description
Electrical Specifications
Rated input voltage (V) Three-phase 200V AC
Rated power (kW) 0.1kW
Rated torque (N·m) 0.318N·m
Instantaneous maximum torque (N·m) 1.11N·m
Rated current (A) 0.85A
Instantaneous maximum current (A) 3.1A
Rated speed (rpm) 3000rpm
Maximum speed (rpm) 7000rpm
Mechanical Specifications
Moment of inertia (kg·m²) 0.017*10⁻⁴kg·m²
Allowable radial load (N) 30N
Allowable axial load (N) 10N
Shaft configuration Straight shaft with key
Mounting method Flange-mounted (IEC 60034-7 B5)
Encoder type 26-bit battery-less absolute encoder (67,108,864 pulses/rev)
Brake No built-in brake (brake version: SGMXJ-01AUA61S)
Performance Specifications
Speed control range 1:5000
Speed control accuracy ±0.01%
Positioning accuracy ±1 pulse
Response frequency 2.5kHz
Overload capacity 300% rated torque for 3 seconds
Environmental Specifications
Operating temperature -10 to +40 degrees Celsius
Storage temperature -20 to +85 degrees Celsius
Operating humidity 20% to 80% RH (non-condensing)
Altitude Below 1000 meters, no derating required
Protection level IP67 (shaft seal included)
Insulation class UL Class B, CE Class B
Safety standards CE, UL, cUL, RoHS, SIL3 (IEC 61508)
Cooling method Natural air cooling
Dimensions (W*H*D) 40mm * 40mm * 85mm
Weight Approximately 0.35kg
