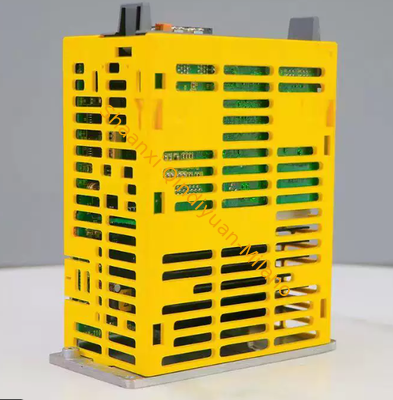

FANUC A03B-0824-C001 I/O Module with 24 Digital Inputs 16 Digital Outputs and Relay Output for CNC Controllers

1
MOQ
100$
Price
FANUC A03B-0824-C001 I/O Module with 24 Digital Inputs 16 Digital Outputs and Relay Output for CNC Controllers
Features Gallery Product Description Chat Now
Features
Specifications
Mounting Type: DIN Rail / Panel Mount
Actual Price: Based On Offer
Communication Protocol: Modbus, Ethernet/IP, Profibus
Output Voltage: 24V DC
Inputtypes: Digital Input, Analog Input
Productname: Industrial Control Automation
Networkinterface: 10/100/1000 Mbps Ethernet Ports
Safetystandardscompliance: IEC 61508, ISO 13849
Ip Rating: IP30 To IP67
Output Typt: Relay
Protection: I
Connectivity: Wi-Fi, Ethernet
Integration: SCADA, MES Systems
Ethernet Ports: 8 To 24 Ports
Outputtype: Relay, Transistor, Analog Output
Highlight:

FANUC I/O module with 24 inputs

,

CNC controller relay output module

,

Industrial automation digital I/O module
Basic Infomation
Place of Origin: China
Brand Name: FANUC
Certification: 100$
Model Number: A03B-0824-C001
Payment & Shipping Terms
Packaging Details: pieces
Delivery Time: 3-5 days
Payment Terms: T/T
Product Description
FANUC I/O BOARD A03B-0824-C001

The FANUC A03B-0824-C001 is a Wiring Board I/O Basic Module, commonly referred to as a digital I/O module or junction box I/O module. It is designed for industrial automation systems, particularly as a fundamental component within FANUC CNC controllers and robotic applications. This module serves as the communication backbone, handling precise input and output signal transmission between the CNC controller and external devices like sensors and switches.

Key Specifications
Specification Detail
Product Type I/O (Input/Output) Module / Basic Unit
I/O Configuration 24 Digital Inputs & 16 Digital Outputs (Total 40 points)
Input Voltage 24 VDC
Input Current 7.3 mA per point (Total 1A max)
Output Voltage 24 VDC
Output Current 0.2 A per point (1.3A max total source current)
Output Type Relay Output
Fuse Rating 1A
Mounting Type Rack-mounted / Flange mount
⚠️ Important Considerations
  • Identification as a Basic Module: This model (A03B-0824-C001) is the basic unit with both inputs and outputs. Other similar-looking modules in the same series, such as the A03B-0824-C004, function as expansion units that only have outputs, lacking input points.
  • Product Status and Replacements: The A03B-0824-C001 is considered an outdated product. FANUC no longer produces it, and it is recommended to consider newer alternative models like the A03B-0825-C001 or A03B-0826-C001 for new projects or replacements.
  • Discrepancies in Specifications: There are minor discrepancies in I/O points across different sources. While most state 24/16 I/O points, one source lists it as 48 inputs and 32 outputs. The 24/16 configuration is widely cited and considered the primary specification. Always verify critical specifications with official FANUC documentation for your specific revision.
  • Typical Applications: This module is fully compatible with FANUC Series 0i, 16i, 18i, and 31i systems and is used in various CNC machining centers, milling, turning, grinding machines, and robotic systems.
