PILZ PNOZ-MO4P-4N/O Safety Relay Expansion Module with 4 Normally Open Relay Outputs and Category 4 PL e Safety Level in 22.5 mm Slim Housing

1
MOQ
50$
Price
PILZ PNOZ-MO4P-4N/O Safety Relay Expansion Module with 4 Normally Open Relay Outputs and Category 4 PL e Safety Level in 22.5 mm Slim Housing
Features Gallery Product Description Chat Now
Features
Specifications
Operatingtemperature: -20°C To 60°C
Safetystandardscompliance: IEC 61508, ISO 13849
Powersupply: 24V DC / 110V AC / 220V AC
Max Switching Current: 6 A
Installationtype: Panel Mount / DIN Rail
Warrantyperiod: 1 To 3 Years
Output Type: Digital And Analog Outputs
Memory: 1
Ip Rating: IP30 To IP67
Responsetime: Less Than 10 Ms
Display: 7
Part No: 200-595-072-122 VM600 CPUM
Mounting Type: DIN Rail / Panel Mount
Shockresistance: 30g, 11ms
Basic Infomation
Place of Origin: China
Brand Name: PILZ
Certification: 50$
Model Number: MO4P-4N/O (773536)
Payment & Shipping Terms
Packaging Details: pieces
Delivery Time: 3-5 days
Payment Terms: T/T
Product Description

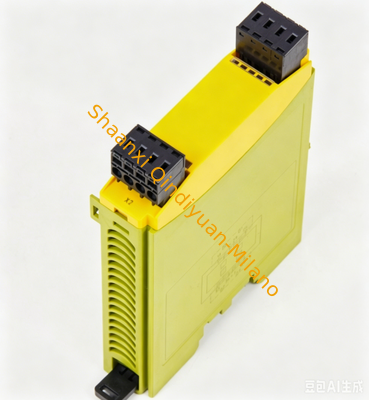

PILZ PNOZ-MO4P-4N/O (773536), SAFETY RELAY, EXPANSION MODULE

This PILZ safety expansion module PNOZ mo4p 4n/o (Order Number: 773536) is a failsafe expansion module from the PNOZmulti Classic configurable safety system. Designed to work exclusively with a PNOZmulti base unit (e.g., PNOZ m0p or PNOZ m1p), it expands the system's capabilities by adding 4 safety relay outputs.

The module provides 4 normally open (N/O), positive-guided relay contacts that are potential-free. It features a 22.5 mm slim housing for efficient control cabinet space usage and connects to the base unit via a backplane bus using jumpers.

Important Lifecycle Notice
This product (773536) is at the end of its product lifecycle and will no longer be available in the foreseeable future. For new designs or replacements, please contact PILZ technical support for information on successor products or alternatives.
Technical Specifications
Order Number 773536
Series PNOZmulti Classic
Module Type Expansion module (failsafe)
Number of Outputs 4 relay outputs
Output Contact Type N/O (normally open), positive-guided
Max. Current AC1 (240 V AC) 6 A
Max. Current DC1 (24 V DC) 6 A
Max. Current AC15 (230 V AC) 3 A
Contact Material AgCuNi + 0.2 µm Au
Terminal Type Screw terminal or Spring-loaded terminal (selectable)
Conductor Cross Section 0.25 - 2.5 mm², 24 - 12 AWG
Mounting Horizontal on 35 x 7.5 mm DIN rail (EN 50022)
Protection Rating IP20 (housing/terminals)
Ambient Temperature 0°C to 60°C
Storage Temperature -25°C to 70°C
Dimensions (H x W x D) 94 mm x 22.5 mm x 121 mm
Net Weight 204 g
Key Features & Safety Data
High Safety Level: Can be used in safety functions up to Category 4, PL e (EN ISO 13849-1) and SIL CL 3 (EN IEC 62061).
Failsafe Operation: Features positively driven (force-guided) relay contacts, ensuring reliable switching in safety circuits.
Module Supply: Powered directly by the connected PNOZmulti base unit (via the backplane).
System Integration: Up to 8 expansion modules can be connected to a single PNOZmulti base unit. Please note, a maximum of 6 semiconductor safe output modules per base unit is recommended.
Safety Characteristic Data (2-channel operation):
PFH (Probability of dangerous failure per hour): 3.00E-10
TM (Mission time): 20 years
