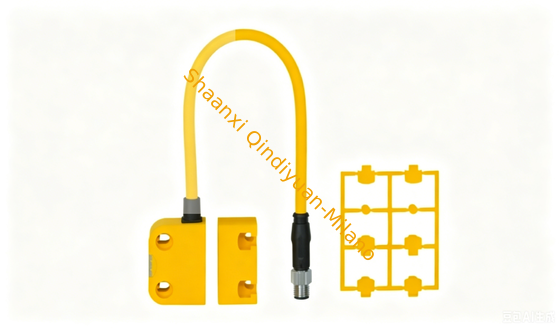

PILZ PSEN MA1.4P-50 Non-Contact Magnetic Safety Switch with IP67 / IP6K9K Protection and Compact 18mm Height

1
MOQ
50$
Price
PILZ PSEN MA1.4P-50 Non-Contact Magnetic Safety Switch with IP67 / IP6K9K Protection and Compact 18mm Height
Features Gallery Product Description Chat Now
Features
Specifications
Communication Protocol: Modbus, Ethernet/IP, Profibus
Protocolsupport: Ethernet/IP, Modbus TCP, PROFINET
Power Supply Voltage: 100 – 240VAC.
Dimensions: 100mm X 75mm X 50mm
Numberofoutputs: 16 Digital Outputs
Color: Normal
Installationtype: DIN Rail Mounting
Output Type: Digital And Analog Outputs
Control Type: Programmable Logic Controller (PLC)
Category: Automation Equipment
Part No: 200-595-072-122 VM600 CPUM
Responsetime: 5 Ms
Softwarecompatibility: Supports SCADA And HMI Software
Memory: 1
Basic Infomation
Place of Origin: China
Brand Name: PILZ
Certification: 50$
Model Number: 506334 PSEN MA1.4P-50
Payment & Shipping Terms
Packaging Details: pieces
Delivery Time: 3-5 days
Payment Terms: T/T
Product Description
PILZ 506334 PSEN MA1.4P-50 MAGNETIC SAFETY SWITCH

Detailed description for the PILZ magnetic safety switch PSEN ma1.4p-50 (Order Number: 506334). This model is a non-contact magnetic safety switch from the PSENmag family, designed for applications where hygiene, heavy soiling, or vibration are concerns. It features a compact, square design with a 4-pin M8 male connector and an 18mm low-profile height for space-saving installations.

The switch has 2 normally open (N/O) contacts and operates with a 10 mm assured switching distance. The package includes both the sensor and the actuator, making it ready for immediate installation.

Technical Specifications
Order Number 506334
Sensor Principle Magnetic
Supply Voltage 24 V DC
Contact Configuration 2 N/O (DPST-NO)
Assured Switching Distance (ON) 10 mm
Assured Switching Distance (OFF) 22 mm
Connection Type 4-pin M8 male connector
Protection Rating IP67 / IP6K9K
Ambient Temperature -10°C to +55°C
Dimensions (H x W x D) 37 mm x 26.4 mm x 18 mm
Housing Material PBT (upper part)
Coding Level (ISO 14119) Low
Suitable for Series Connection No
Key Features
  • Non-Contact Magnetic Operation: Ensures a mechanically non-wearing, long service life and is insensitive to shock and vibration.
  • Complete Unit: Supplied as a "1 unit" containing both the sensor and the actuator (PSEN ma1.4-10mm).
  • Flush Mountable: The sensor can be flush-mounted into metal, following the specific installation guide.
  • High Environmental Protection: Rated IP67 and IP6K9K, making it suitable for harsh environments, including high-pressure, high-temperature washdowns.
  • Compact Design: The 18 mm height design saves valuable installation space.
Important Notes
  • 24V DC Only: The switching voltage is rated at max. 24V DC. Do not use with higher voltages.
  • No Series Connection: This specific model is not suitable for series connection. Each unit requires a separate evaluation device.
  • Connection Cable: The unit features an M8 male connector. M8 connection cables are available as optional accessories in various lengths (e.g., 533111 for 2m straight cable).
