Home /Products/Industrial Control Automation/FANUC Alpha i Series Servo Drive with 58A RMS Output 32 kW Power and Three-phase 400-480VAC Supply

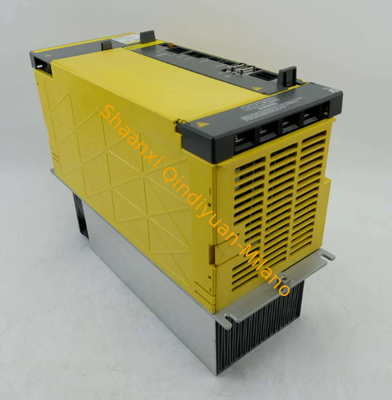

FANUC Alpha i Series Servo Drive with 58A RMS Output 32 kW Power and Three-phase 400-480VAC Supply

1
MOQ
100$
Price
FANUC Alpha i Series Servo Drive with 58A RMS Output 32 kW Power and Three-phase 400-480VAC Supply
Features Gallery Product Description Chat Now
Features
Specifications
Mounting Type: DIN Rail
Mounting: DIN Rail / Panel Mount
Warranty: 1-3 Years Manufacturer Warranty
Output Points: 20
Certifications: CE, UL, RoHS
Part No: 200-595-072-122 VM600 CPUM
Applicationindustry: Manufacturing, Process Control, Robotics
Operatingtemperature: -20°C To 60°C
Control Type: Programmable Logic Controller (PLC)
Memory: 1
Function: Automates Industrial Processes And Machinery
Powerconsumption: Less Than 10W
Connectivity: Wired And Wireless Options
Installation: Panel Mount / DIN Rail
Safetyfeatures: Emergency Stop, Overload Protection
Basic Infomation
Place of Origin: China
Brand Name: FANUC
Certification: 100$
Model Number: A06B-6127-H106
Payment & Shipping Terms
Packaging Details: pieces
Delivery Time: 3-5 days
Payment Terms: T/T
Product Description
FANUC A06B-6127-H106 SERVO DRIVES
High-performance servo amplifier designed for demanding industrial applications in large CNC machinery.
Technical Specifications
Specification Value Details
Product Type Servo Amplifier / Servo Drive Single-axis control
Series Alpha i Series (αi) Next-generation after Alpha series
Number of Axes 1 axis Controls one servo motor
Rated Output Current 58 A (rms) For continuous operation
Peak Current Limit 180 A (peak) For demanding load requirements
Power Rating 32 kW
Main Power Supply Three-phase 400 VAC to 480 VAC High-voltage class
Control Power Supply Single-phase 200 VAC to 240 VAC
Voltage Tolerance -15% to +10% Including variation due to load
Power Frequency 50/60 Hz, ±1 Hz
Max Output Voltage 480 V
Instantaneous Power Failure Guarantee 3 ms Ensures operational continuity during interruptions
Operating Temperature 0°C to 55°C (32°F to 131°F)
Storage Temperature -20°C to 60°C (-4°F to 140°F)
Humidity 90% RH or below, non-condensing
Vibration Resistance Below 0.5G
Weight 8.16 kg to 8.6 kg (approx. 18 lbs)
Cooling Method Air-cooled (fan)
Protection Rating IP20 For installation in a control cabinet
Key Features & Technology
  • High Power Output: With a rated output current of 58A RMS (180A peak) and a power rating of 32 kW, this amplifier is designed for the most demanding axes on large CNC machines.
  • Wide Voltage Range: The wide voltage tolerance of -15% to +10% accounts for fluctuations that may occur in industrial power grids due to heavy load changes on other equipment.
  • Robust Environmental Protection: The unit is built to withstand harsh industrial environments, with an IP20 protection rating suitable for control cabinet installation. It can handle temperatures up to 55°C (131°F) and humidity levels of 90% RH without condensation.
  • Reliability Features: The module includes an instantaneous power failure guarantee of just 3 milliseconds, helping to maintain system integrity during brief power interruptions.
  • Advanced Control: Employs High Response Vector (HRV) control technology for high-precision servo performance in position, speed, and torque control.
