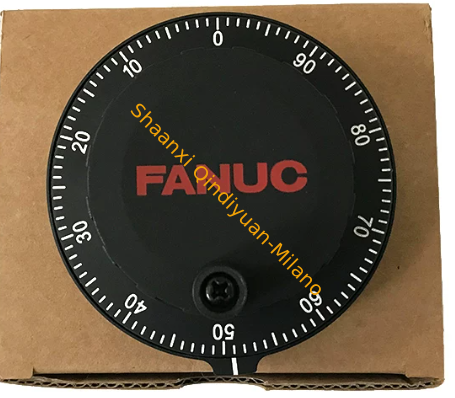

FANUC A860-0203-T001 Manual Pulse Generator with 100 PPR Quadrature Output for CNC Control

1
MOQ
34$
Price
FANUC A860-0203-T001 Manual Pulse Generator with 100 PPR Quadrature Output for CNC Control
Features Gallery Product Description Chat Now
Features
Specifications
Certifications: CE, UL, RoHS
Powerconsumption: 5W To 20W
Productname: Industrial Control Automation
Scalability: Modular Expansion Supported
Operatingtemperaturerange: -20°C To 60°C
Inputtype: Digital And Analog Inputs
Model: S7-1200
Numberofinputs: 16 Digital Inputs
Safety Outputs: 3 N/O, 1 N/C
Mpu Points: 12 (8DI + 4DO)
Dimensions: Varies By Model, Typically 100x75x50 Mm
Power Supply Voltage: 100 – 240VAC.
Ambient Temperature: -35°C To 55°C
Compatibility: SCADA Systems, HMI Panels
Responsetime: Milliseconds Range
Basic Infomation
Place of Origin: JAPANESE
Brand Name: FANUC
Certification: 34$
Model Number: A860-0203-T001
Payment & Shipping Terms
Packaging Details: pieces
Delivery Time: 3-5 days
Payment Terms: T/T
Product Description
FANUC A860-0203-T001 MANUAL PULSE GENERATOR
Technical Specifications
Specification Value Details
Product Type Manual Pulse Generator (MPG) / Handwheel Encoder Manual axis movement control
Part Number A860-0203-T001
Series Series 800
Diameter Approx. 80 mm (3.15 inches)
Pulse Rate (Resolution) 100 pulses per revolution (PPR) 100 pulses/rev
Output Signals A & B (Quadrature Output) 90-degree phase difference for direction sensing
Power Supply Voltage 5 VDC Typically 5V
Maximum Input Voltage 7V
Output Current (Max) 30 mA
Consumption Current 95 mA
Operating Temperature -5°C to 60°C (23°F to 140°F)
Weight Approx. 0.44 lbs (0.20 kg)
Function & Operation
  • Precision Control: When the operator rotates the handwheel, the generator emits a specific number of electrical pulses. The CNC control interprets these pulses to move the machine axis precisely by a proportional increment.
  • Signal Generation: The device produces two-phase square wave signals (A and B). The 90-degree phase difference between these signals allows the CNC to determine both the distance and direction of the rotation.
  • Compatibility: This unit is designed to be fully compatible with FANUC CNC controllers, making it a standard replacement part for many FANUC operator panels and MPG units.
