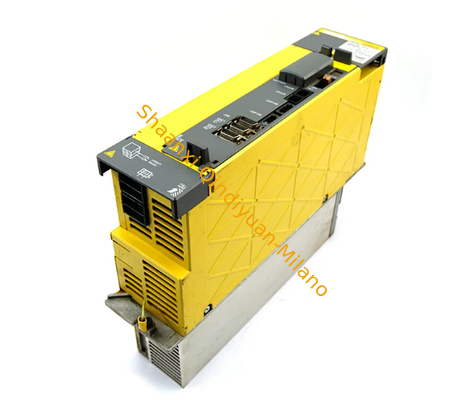

FANUC A06B-6110-H011 Power Supply Module with 13.2 kW Output Power and Regenerative Energy Management for 283-339 VDC Applications

1
MOQ
1350$
Price
FANUC A06B-6110-H011 Power Supply Module with 13.2 kW Output Power and Regenerative Energy Management for 283-339 VDC Applications
Features Gallery Product Description Chat Now
Features
Specifications
Applicationindustry: Manufacturing, Energy, Utilities
Operatingtemperature: -20°C To 60°C
Connectivityoptions: Ethernet, RS-485, Wireless
Type: Automation System
Output Points: 16DO
Weight: Approx. 0.5 To 1.5 Kg
Responsetime: Less Than 10 Ms
Color: Normal
Networkinterface: 10/100/1000 Mbps Ethernet Ports
Programminglanguage: Ladder Logic, Structured Text
Output Typt: Relay
Model: S7-1200
Warrantyperiod: 1 To 3 Years
Inputvoltage: 24V DC / 110V AC / 220V AC
Ethernet Ports: 8 To 24 Ports
Basic Infomation
Place of Origin: China
Brand Name: FANUC
Certification: 1350$
Model Number: A06B-6110-H011
Payment & Shipping Terms
Packaging Details: pieces
Delivery Time: 3-5 days
Payment Terms: T/T
Product Description
FANUC A06B-6110-H011 DRIVER AMPLIFIERS

The FANUC A06B-6110-H011 is a high-performance power supply module from FANUC's Alpha i (αi) series, designed to serve as the robust "front end" for 200V-class FANUC servo and spindle amplifier systems. This unit converts three-phase AC input power into regulated DC voltage, providing a stable and reliable DC link bus for connected servo and spindle amplifiers in CNC machine tools, industrial robots, and automated manufacturing systems.

As a core component of FANUC's αi drive system, the A06B-6110-H011 (commonly referred to as PSM-11) delivers clean, regulated power while managing regenerative energy from braking operations. Its modular, panel-mounted design allows seamless integration with FANUC αi servo and spindle amplifiers, making it an ideal choice for both new OEM machine builds and retrofit projects upgrading older α-series power supplies.

Key Specifications
Part Number A06B-6110-H011
Series FANUC Alpha i (αi)
Model Type Power Supply Module (PSM-11)
Input Voltage 200-240 VAC, 3-phase, 50/60 Hz
Output Voltage (DC Link) 283-339 VDC
Output Power 13.2 kW
Output Current 49 Amps at 200V input
Operating Temperature 0°C to 40°C (standard) / -10°C to 55°C (extended range)
Maximum Vibration 5G
Maximum Altitude 1000 meters above sea level
Protection Class IP20
Weight Approx. 5.44 kg (12.00 lbs)
Efficiency ≥92%
Features & Benefits
  • Stable DC Link Power: Provides clean, regulated DC bus voltage (283-339V) for multi-axis servo and spindle systems, ensuring smooth motion control and reducing nuisance trips.
  • Regenerative Energy Management: Built-in regenerative control handles braking energy; supports external regenerative resistor connection for high-duty-cycle applications.
  • High Power Density: Delivers 13.2 kW of continuous output power in a compact form factor, maximizing cabinet space efficiency.
  • Comprehensive Protection: Integrated over-voltage, over-current, over-temperature, and short-circuit protection with LED status/alarm indicators for rapid troubleshooting.
  • Dual Output Architecture: Provides DC300V main circuit (for servo/spindle drives) and isolated DC24V control circuit, with voltage fluctuation suppressed to ≤±0.5%.
  • Fast Dynamic Response: Response time <20ms under dynamic load conditions; input current THDi ≤5%.
  • Drop-in Replacement Compatibility: Direct replacement for older α-series power supplies in many 200V-class FANUC control cabinets, minimizing retrofit downtime.
Compatible Systems
  • CNC Controllers: FANUC Series 0i, 30i, 31i, 32i, 35i
  • Servo Amplifiers: FANUC αi Servo Amplifier Modules (A06B-6114 series)
  • Spindle Amplifiers: FANUC αi Spindle Amplifier Modules (A06B-6120 series)
  • Applications: CNC machining centers, CNC lathes, drilling/tapping machines, grinding machines, industrial robots (200V-class systems)
Typical Applications
  • CNC machining centers and milling machines
  • CNC lathes and turning centers
  • High-speed drilling and tapping lines
  • Precision grinding machines
  • Industrial robot control cabinets
  • Multi-axis CNC production systems
  • Machine tool retrofit and upgrade projects
Installation & Maintenance

Mounting: Panel-mounted inside control cabinet (vertical orientation); ensure adequate ventilation clearance for cooling.

Wiring: Connect 3-phase AC input (200-240V), route high-power DC output to servo/spindle amplifier modules; ensure all connections are torqued to ≥1.2 N·m.

Cooling: Integrated fan cooling; clean散热片 quarterly to prevent overheating.

Routine Checks: Monitor CX4 interface DC300V output (deviation ≤±1.5V); inspect electrolytic capacitors (recommended replacement every 5 years).

Important Notes
⚠️ Product Status:

The A06B-6110-H011 is a discontinued/legacy product. FANUC no longer manufactures this module as new. Alternative or replacement models (such as A06B-6210-H011 or A06B-6220-H011) may be recommended for new system designs.

⚠️ Sourcing:

Available through industrial automation parts suppliers as new-old-stock, refurbished, or tested used units. Verify vendor testing and warranty before purchase.

⚠️ Professional Installation:

Installation should be performed by trained FANUC service personnel. Improper DC bus connection or configuration can cause equipment damage.

⚠️ Firmware/Compatibility:

While the power supply module itself does not carry axis-specific firmware, ensure compatibility with your specific αi servo/spindle amplifier modules and CNC controller version.
