Yaskawa SGM7J-O1AFC6S Servo Motor 100W 200V AC Sigma-7 24-bit Encoder

The Yaskawa SGM7J-01AFC6S belongs to Yaskawa Sigma 7 series small capacity AC servo motor with rated power of 100W and rated voltage of AC 200V. This servo motor is equipped with a 24 bit high resolution absolute encoder which can accurately collect real time position speed and torque feedback signals during equipment operation. It needs to be matched with the supporting servo drive to form a closed loop motion control system. The product can realize precise positioning constant speed operation torque adjustment and high frequency forward reverse start stop control of mechanical moving parts. It can effectively solve the problems of low positioning accuracy slow response speed and poor anti interference ability of traditional stepping motors. It is widely used in various automation equipment that requires high precision high stability and high dynamic response motion control to complete linear rotation indexing and repeated positioning actions of automated production equipment.

1. High precision positioning performance with built in 24 bit high resolution encoder. It can achieve ultra fine position feedback greatly reducing positioning error and improving repeated positioning accuracy of automated equipment suitable for high precision processing and assembling working conditions
2. Excellent dynamic response characteristic with low rotor inertia design. The servo motor can complete rapid acceleration deceleration and frequent start stop actions within a short time effectively improving the running efficiency and production beat of automated production lines
3. Stable continuous operation performance with optimized internal winding structure and high efficiency heat dissipation design. The motor can keep stable torque output under long time continuous operation and effectively avoid performance attenuation caused by temperature rise
4. Strong environmental adaptability with standard industrial protection grade. The motor shell adopts high strength alloy material which can resist slight dust and moisture interference and run stably in conventional factory workshop environments
5. Compact miniaturized structural design saves installation space inside equipment control cabinets and mechanical frames. It supports flexible installation methods and is convenient for wiring debugging and later maintenance replacement
6. Strong anti interference capability conforming to international electromagnetic compatibility standards. It can operate normally in complex industrial electrical environments with multiple frequency converters servo devices and strong electromagnetic interference equipment
7. Complete global safety certifications complying with international industrial electrical standards. It can be exported to most regions around the world with smooth customs clearance and on site engineering acceptance

• Precision Automation Processing Equipment

  Used for motion control of small CNC equipment drilling machines dispensing machines laser marking machines and cutting machines to realize high precision positioning and feeding processing actions

  Packaging Machinery Industry

  Applied to labeling machines sealing machines filling machines small coding equipment and blister packaging machines for material conveying positioning and reciprocating driving control

  Electronic Semiconductor Equipment

  Used for driving transmission mechanisms of automatic assembly machines testing equipment sorting machines and patch equipment in electronic workshops to complete precise grabbing transferring and positioning of small electronic components

  Logistics Warehousing Automation Equipment

  Matched with small conveyor lines sorting equipment and automatic stacking auxiliary mechanisms to realize stable speed regulation and accurate stop positioning of transmission equipment

  Medical Automation Equipment

  Applied to medical detection instruments automatic test equipment and small medical processing equipment to meet the requirements of stable low noise and high precision motion control

  Textile Printing Equipment

  Used for small textile machinery printing equipment and label processing equipment to realize constant speed conveying and precise indexing control of fabrics and printing materials

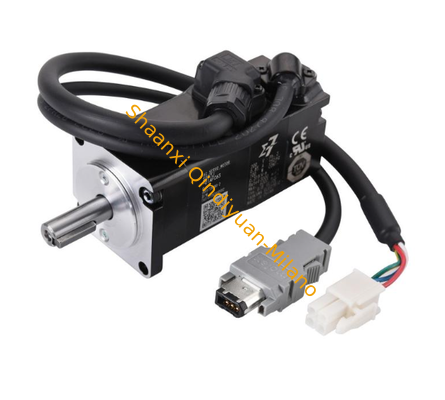

• Product Main Display Picture

  Content Front and side overall  of Yaskawa SGM7J 01AFC6S servo motor showing motor flange shaft end nameplate and wiring connector structure

  Picture Caption Yaskawa Sigma7 Series 100W Servo Motor Product Appearance Display

  Product Detail Close Up Picture

  Content Close up  of motor encoder connector nameplate and output shaft to display model information and structural details

  Picture Caption Servo Motor Nameplate and Structural Detail Display

  On Site Equipment Application Picture

  Content Servo motor installed on automated mechanical equipment matched with transmission module for actual production operation

  Picture Caption Servo Motor Practical Application in Automated Production Equipment
