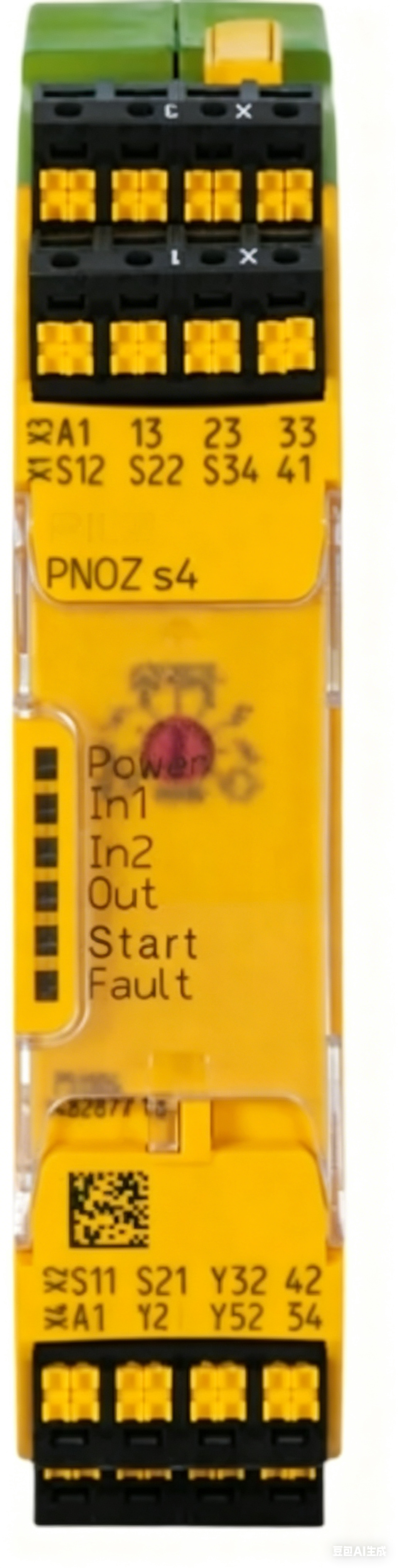

PILZ Safety Relay PNOZ S4 C 24VDC

The PNOZ s4 C 24VDC (part number 751104 or similar, e.g., 751124) is a Pilz PNOZsigma safety relay providing safety-related interruption of circuits, specifically for E-STOP, safety gates, and light beam devices. It features 3 N/O safety contacts, 1 N/C auxiliary contact, and 1 semiconductor output, operated via 24V DC with plug-in spring-loaded terminals (751104/751124) or screw terminals (750104).

• Operating Voltage: 24V DC
• Safety Outputs: 3 Normally Open (3 N/O), 1 Normally Closed (1 N/C)
• Width: 22.5 mm slim design
• Connections: Plug-in spring-loaded terminals for faster installation
• Inputs: 1 or 2-channel wiring with optional detection of shorts across contacts
• Safety Functions: Automatic or manual/monitored reset
• Safety Level: Up to PL e (Cat. 4) according to EN ISO 13849-1
• Monitoring: E-STOP, safety gates, light curtains
• Dimensions: 100mm x 22.5mm x 120mm

• Emergency Stop (E-STOP) pushbuttons
• Safety gates and guard monitoring
• Light beam devices and light curtains
• Furnaces in accordance with EN 50156-1

The unit offers high reliability, featuring a diagnostic LED display for status and fault analysis. It is designed to meet strict safety standards including EN 60947-5-1 and EN 60204-1
