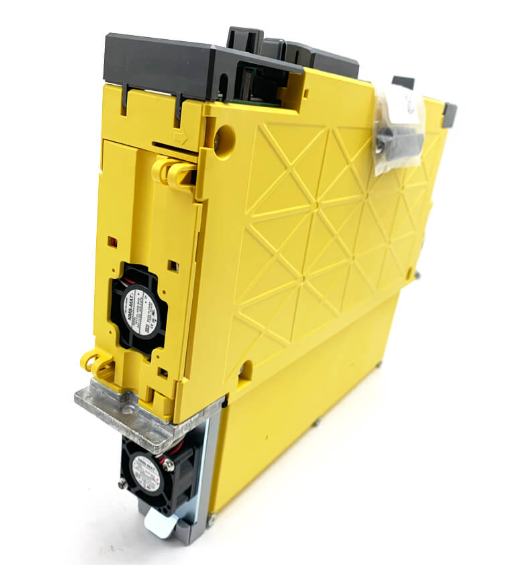

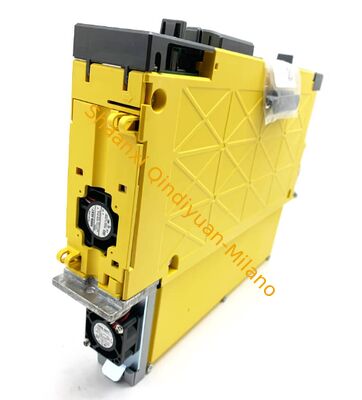

FANUC A06B-6240-H207 Servo Amplifier Module

The A06B-6240-H207 is a Fanuc Servo Amplifier Module from the αi-B series, specifically identified as the aiSV 40/40-B. It is a high-performance, dual-axis amplifier designed to control two servo motors simultaneously in CNC systems.

• Series: αi SV 40/40-B (200V Input Series)
• Type: Dual Axis Servo Amplifier
• Rated Output Current: 13A per axis
• Maximum Current Limit: 40A per axis
• Input Voltage: 283–339 VAC (Power Supply 200–240 VAC 3-phase)
• Power Output: 9 kW
• Compatibility: Designed for use with Fanuc 0i-D/F or 3x-B controllers
• Compatible Motors: Commonly powers αiF8/4000 or α12/3000i S series AC servo motors
• Cooling: Internal and external cooling fans

The A06B-6240-H207 is part of the newer 62xx generation of 200VAC αi amplifiers, which offer improved energy savings and a more compact design than older models.

• Modular Structure: Thinner, space-saving design with lower heat output.
• Easy Maintenance: Features connectors for power lines instead of terminal blocks for faster replacement.
• Diagnostics: Includes a leakage detection function to identify insulation degradation in motors or power lines.
• Performance: Provides precise motion control, suitable for demanding industrial applications.

The "-B" variants (such as this one) are generally not interchangeable with earlier, non-B versions of the αi servo drives (e.g., A06B-61xx series) due to software compatibility differences with the CNC control.
