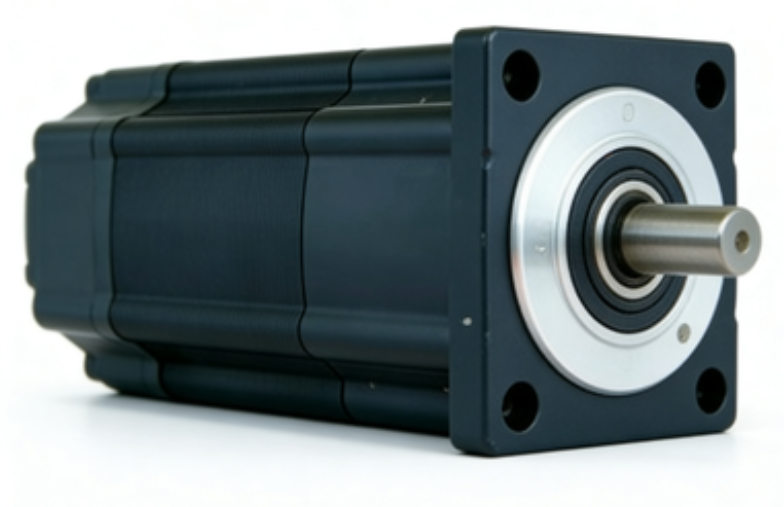

Lenze M85AS190L306SPDLC synchronous servo motors

1
MOQ
1500$
Price
Lenze M85AS190L306SPDLC synchronous servo motors
Features Gallery Product Description Chat Now
Features
Specifications
Mountingtype: Foot-mounted, Flange-mounted
Output Typt: Relay
Numberofoutputchannels: 16
Output Points: 16DO
Safetyfeatures: Emergency Stop, Overload Protection
Safetystandards: CE, UL, RoHS Compliant
Highlight:

Lenze synchronous servo motors

,

industrial servo motors with warranty

,

M85AS190L306SPDLC servo motor
Basic Infomation
Place of Origin: china
Brand Name: Lenze
Model Number: M85AS190L306SPDLC
Payment & Shipping Terms
Packaging Details: pieces
Delivery Time: 5-8days
Payment Terms: T/T
Product Description

Lenze M85AS190L306SPDLC Synchronous Servo Motor | ECER Standard English Product Datasheet

M850 Series Servo Motor
Motor Side View
Flange End View

1. Product Overview

Full Model Name: Lenze M85AS190L306SPDLC Permanent Magnet Synchronous Servo Motor (M850 190 Flange Frame Series, German Original)

This medium-dynamics compact permanent magnet synchronous servo motor belongs to Lenze classic M850 platform, designed to match Lenze EVS93xx, i700, i950, 9400 series servo inverters to form complete closed-loop motion control systemLenze. It converts electric energy into precise torque output to execute accurate positioning, constant tension control, synchronous transmission and frequent start-stop cyclic movement for automated production equipment; built with modular configurable structure to realize flexible customization of encoder feedback, electromagnetic brake and connector types, fully compliant with ECER EU electrical safety certification for global industrial equipment export & cabinet installation.

Code parsing reference:
  • 190 = FF215 standard mounting flange; L = long motor core; 306 = rated speed 3000rpm specification; SPDLC = Single Cable Digital Absolute Encoder + Standard solid shaft + Plug-in aviation connector + IP54 protection layout

2. Core Product Advantages (Icon Tagged Key Features)

✅ Optimized Inertia Matching Design: Precisely matched motor-load inertia ratio, greatly shortens servo commissioning period, suppresses mechanical vibration during high-speed acceleration/deceleration, stable dynamic positioning performance

✅ One-Cable OCT Digital Feedback: SPDLC coded single-cable technology integrates power & encoder signal inside one cable, cuts on-site wiring workload by 50%, reduces wiring failure risk; equipped multi-turn digital absolute encoder without zero-point homing after power failureLenze

✅ Smooth Sealed Aluminum Housing: Smooth non-ribbed outer casing meets food-grade sanitation requirement, anti-dust & easy washdown; IP54 standard protection, adapts dusty, humid and splash-prone harsh workshop environment

✅ Modular Expandable Configuration: Optional spring-applied 24VDC electromagnetic holding brake for vertical axis anti-drop; interchangeable resolver/incremental encoder as alternative feedback per application demandLenze

✅ Wide Drive Compatibility: Natively compatible with full range Lenze servo drives (9300/EVS93xx, i700, i950, 8400 Topline), supports CANopen, Profinet fieldbus networking for centralized PLC automation controlLenze

✅ Low Vibration Smooth Running: High-precision rotor dynamic balance & optimized magnetic circuit design, ultra-low torque ripple, guarantees micron-level repetitive positioning accuracy for precision machining equipment

3. Detailed Technical Parameter Table (ECER Certified Standard Specs)

表格



Parameter Item Technical Specification Supplementary Note
Model M85AS190L306SPDLC M850 190 flange long core variant
Rated Power 7.5kW Nominal continuous output power
Rated Speed 3000 rpm Base rated rotational speed
Rated Continuous Torque 24 N·m Continuous stall torque
Peak Overload Torque 71 N·m 300% short-time overload capacity
Rated Input Voltage 3×AC320~528V Matches Lenze 400V class servo inverter
Rated Working Current 26.8A Nominal operating input current
Feedback Type Digital Multi-turn Absolute Encoder Single Cable OCT technology (SPDLC definition)
Brake Configuration Non-standard built-in brake (optional add-on 24VDC spring brake) Customizable brake version available
Mounting Flange FF215 (190 frame size) Standard IEC industrial servo mounting dimension
Shaft Specification Solid smooth shaft, M10 inner thread at shaft end Shaft diameter Φ28mm
Protection Grade IP54 Motor main body protection standard
Cooling Mode Natural Self-Cooling No external cooling fan required
Operating Ambient Temp 0℃~+45℃ Operation; -25℃~+70℃ Storage Non-condensation environment required
Net Weight ~37kg Single bare motor weight
Compliance Standard CE, UL, ECER, RoHS EU import customs approval passed

4. Application Industries & Scene/Warehouse Image Description

Main Applicable Industrial Fields

  1. Packaging Machinery: Carton folding & sealing line, filling equipment, rotary cutter positioning, film winding constant tension control
  2. Textile & Printing Industry: Gravure printing register correction, textile warp winding, roll-to-roll fabric conveying speed synchronization
  3. Automated Handling & Robotics: Palletizing robot joint drive, automatic warehouse shuttle axis, assembly line material transfer mechanism
  4. Food & Beverage Equipment: Automated sorting conveyor, bottle cap tightening machine, food slicer precision feed axis (smooth housing fits food sanitation norms)Lenze
  5. Rubber & Plastic Machinery: Extruder traction control, injection molding auxiliary servo axis, blow molding mold positioning drive
  6. CNC Automation Equipment: Small automatic feeder, customized non-standard CNC auxiliary feed spindle

Image Annotation Description

  • Application Scene Image: Motor fixed inside equipment cabinet, coupled with reducer/mechanical spindle and matched Lenze EVS93xx servo drive on production running line
  • Warehouse Storage Image: Original carton packed NEW unit / tested USED stock neatly stacked inside automated industrial spare parts warehouse

5. Product Supply Grade & ECER Compliance Statement

  • Supply Status: Available in NEW Original / Used Tested / Refurbished Overhauled three grades; all motors pass full-load aging test and encoder precision calibration before delivery, 12-month global warranty available.
  • ECER Compliance: This M85AS190L306SPDLC servo motor strictly complies EN60034 low-voltage motor standard & ECER EU industrial regulation, all certification documents complete for cross-border export customs clearance.
