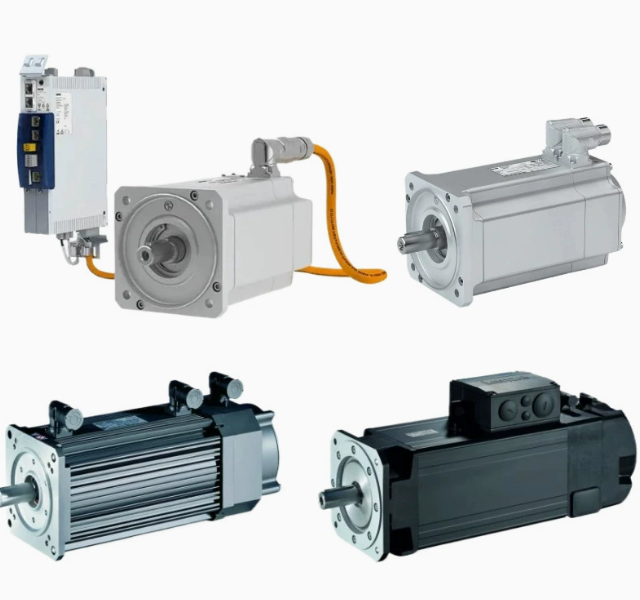

Lenze M85AS190S326S0DLC Permanent Magnet Synchronous Servo Motor (ECER Standard | English Only)

1. Product Overview

• 190: Frame size 190 flange dimension; S: Short stator stack; 32: Rated speed specification 3000rpm class
• 6S0: Hiperface DSL single-cable digital absolute encoder feedback; D: Built-in spring-powered fail-safe holding brake; LC: CE+cULUs certified, plug-in quick connector layout


  Fully compliant with EU ECER machinery safety & EN61800 EMC industrial standards, original Germany-manufactured high-efficiency rare-earth magnet servo unitLenze.

2. Core Advantages & Key Features

• Compact High-Torque Frame Structure: Optimized stator winding lowers cogging torque for ultra-smooth low-speed operation, full-load efficiency ≥92%, ideal for heavy-inertia load drivingLenze.
• Hiperface DSL Single-Cable Encoder (6S0 Spec): Integrated power+feedback single-cable wiring, drastically reduce field wiring workload; multi-turn absolute position without battery backup, high precision positioning for high-end automation.
• Built-in Spring-Applied Power-off Brake (D Code): 24VDC electromagnetic holding brake locks shaft when power fails, anti-drop protection for vertical lifting axes.
• Plug-type Rapid Connection Terminal: Standard LC coded integrated aviation plug, cancel traditional terminal box, shorten maintenance downtime on production lineLenze.
• Optimized Load-Motor Inertia Matching: Moderate rotor inertia improves servo responsiveness, stable acceleration/deceleration under fluctuating load conditionsLenze.
• Full global certification: CE, UL, cULus, RoHS, compliant with EN60034, complete documents available for EU customs clearance per ECER regulation.
• Electronic nameplate pre-stored inside motor core, auto parameter identification with Lenze servo drives for fast commissioning without manual parameter inputLenze.

3. Detailed Technical Specification

4. Application Industry & Warehouse Management

Core Application Fields

1. Packaging Automation: Carton forming, filling, labeling, cutting & high-speed stacking axis control
2. Automated Material Handling: Palletizer, sorting conveyor, vertical lifting mechanism drive
3. Special CNC Machine Tools: Feed axis & auxiliary spindle precision servo driving
4. Printing & Paper Processing: Slitter winding/unwinding, rotary printing register control
5. Robotic Assembly Equipment: Multi-axis indexing, precision pressing & positioning
6. Textile High-speed Loom: Winding & weft insertion motion control

Warehouse Storage Rule

5. ECER Compliance Statement
