AB 5069-OF4 Compact 5000 4-Ch Analog Output Module

1 pcs
MOQ
Negotiation
Price
AB 5069-OF4 Compact 5000 4-Ch Analog Output Module
Features Gallery Product Description Chat Now
Features
Specifications
OutputType: Digital And Analog Outputs
Application: Industrial Automation, Process Control, Machinery Control
Certifications: CE, UL, RoHS
Output Points: 24 Points.
Mpu Points: 12 (8DI + 4DO)
Manufacturer: Siemens
Safetyfeatures: Watchdog Timer, Fault Diagnostics
Highlight:

Allen-Bradley 5069-OF4 analog output module

,

Compact 5000 16-bit V/I module

,

PLC 4-20mA output module with warranty
Basic Infomation
Brand Name: Allen-Bradley
Model Number: 5069-OF4
Payment & Shipping Terms
Delivery Time: 5-7 days
Payment Terms: T/T
Supply Ability: 10000 pcs
Product Description

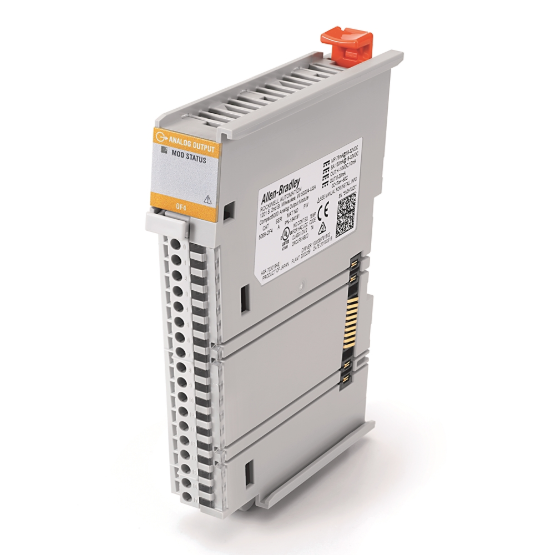

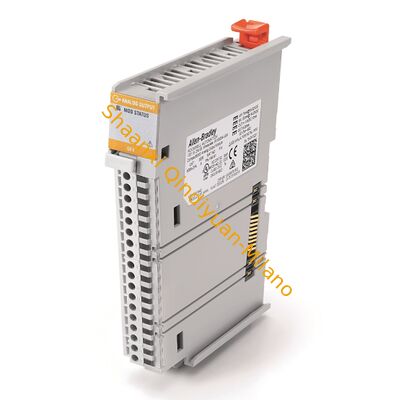

AB 5069-OF4
Compact 5000 4-Channel Analog Output Module
1. Basic Product Information
  • Part Number: 5069-OF4
  • Brand: AB
  • Series: Compact 5000 / Compact I/O
  • Product Type: 4-Channel Analog Output Module (Voltage / Current)
  • Condition: Brand New & Original
  • Application: Industrial process control, actuator drive, analog signal regulation, CompactLogix automation system
2. Core Features
  1. 4 independent analog output channels, support both voltage and current signal output, flexible configuration for different field devices.
  2. 16-bit high resolution with R-Ladder DAC technology, ensuring high precision and monotonic output without missing codes.
  3. Fast response: 25 μs conversion time per channel, system scan time 1 ms, suitable for high-speed motion and process control.
  4. Multiple standard signal ranges to match global industrial standards.
  5. Built-in short circuit (voltage mode) and open circuit (current mode) detection, with LED status indicators for easy diagnosis and maintenance.
  6. Non-isolated output design, compact size, easy cabinet installation and wiring.
  7. Support CIP Sync and Pattern Matching, seamless integration with EtherNet/IP industrial network.
3. Technical Specifications
3.1 Output Signal Ranges
  • Voltage Output: ±10 V DC, 0~10 V DC, 0~5 V DC
  • Current Output: 0~20 mA, 4~20 mA (industry standard)
3.2 Electrical Parameters
  • Power Supply: 18 ~ 32 V DC (SA power)
  • Power Consumption: Max 3.3 W (11.3 BTU/hr)
  • Channel Isolation: Non-isolated
  • Surge Immunity: ±1 kV line-line, ±2 kV line-earth
3.3 Mechanical Data
  • Dimensions (H×W×D): 144.57 × 22 × 105.42 mm (5.69 × 0.87 × 4.15 in)
  • Weight: Approx 175 g (0.39 lb)
  • Mounting: DIN rail mounting (Compact 5000 standard)
3.4 Environmental Ratings
  • Operating Temperature: -20°C ~ +60°C
  • Storage Temperature: -40°C ~ +85°C
  • Relative Humidity: 5% ~ 95% (non-condensing)
  • Protection Grade: IP20 (front panel)
  • RF Immunity: 10 V/m (80 MHz ~ 2.7 GHz)
3.5 Compatibility
  • Compatible Controller: CompactLogix 5380, 5480, GuardLogix 5380 series
  • Configuration Software: Studio 5000 Logix Designer
  • Communication: EtherNet/IP, Producer/Consumer communication mode
4. Typical Applications
  • Industrial automation production lines
  • Flow, pressure, temperature analog control loops
  • Variable frequency drives, proportional valves, electric actuators
  • Packaging, material handling, water treatment, HVAC systems
  • Small & medium-scale motion control and distributed I/O systems
5. Package & Warranty
  • Package: Original factory sealed package
  • Warranty: 12 months official manufacturer warranty
  • Included: 5069-OF4 module, user manual, terminal block
