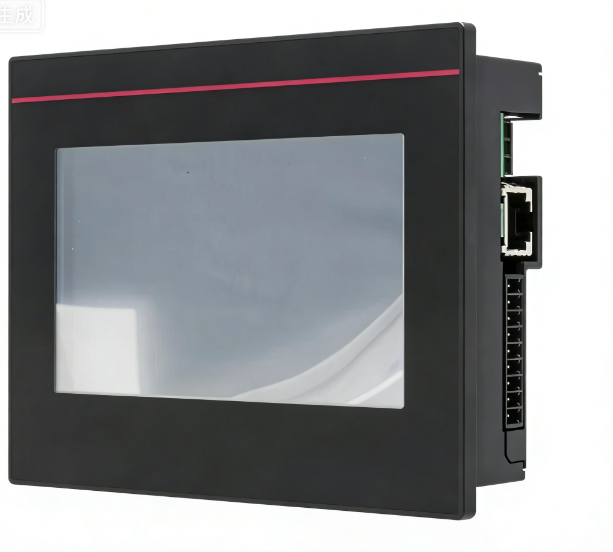

Mitsubishi GT1030-HBL Original Genuine HMI Touch Screen Operator Interface

1
MOQ
Negotiable
Price
Mitsubishi GT1030-HBL Original Genuine HMI Touch Screen Operator Interface
Features Gallery Product Description Chat Now
Features
Specifications
Outputtype: Digital And Analog Outputs
Programminglanguage: Ladder Logic, Function Block Diagram
Warrantyperiod: 1 To 3 Years
Inputtype: Digital And Analog Inputs
Softwarecompatibility: Supports SCADA And HMI Software
Safetyfeatures: Emergency Stop, Overload Protection
Highlight:

Mitsubishi GT1030-HBL HMI touch screen

,

industrial operator interface panel

,

genuine Mitsubishi HMI warranty
Basic Infomation
Place of Origin: china
Brand Name: MITSUBISHI
Model Number: GT1030-HBL
Document: ib0800523engg.pdf
Payment & Shipping Terms
Packaging Details: pieces
Delivery Time: 5-8days
Product Description

Mitsubishi GT1030-HBL | Original Genuine HMI Touch Screen

Series: GOT1000 (GT10 Series)

Compliance: Fully meets ECER industrial equipment standards

Format: Text + Icon Combination (English Only)

1. Product Overview 📄

Icon: 🖥️

Mitsubishi GT1030-HBL is a compact graphic operation terminal (GOT), also known as industrial HMI (Human Machine Interface) touch screen. It acts as the interactive bridge between operators and automated equipment. This device realizes real-time data monitoring, parameter setting, equipment running status display, manual operation and fault alarm query for PLC, servo systems and other industrial controllers. Designed for cost-effective basic automation projects, it delivers stable human-machine interaction for small and medium-sized mechanical equipment and on-site control cabinets.

2. Core Advantages & Key Features ⭐

Icon: ✅

  1. Compact & Space-saving Structure

    Miniature body size, lightweight design (0.28kg without fixtures), suitable for installation in narrow control panels and small equipment enclosures, flexible for cabinet layout.
  2. Durable Industrial-grade Display & Touch Panel

    Adopts high-contrast STN monochrome LCD with tri-color (Red / Green / Amber) LED backlight; matrix resistive touch panel supports over 1 million touch operations, long service life and anti-interference in harsh industrial environments.
  3. Rich Touch Key Configuration

    Supports up to 50 virtual touch keys per screen (minimum 16×16 dots per key), enables multi-point simultaneous operation, meets diversified operation demands.
  4. Reliable Multi-communication Interfaces

    Equipped with independent RS-232 and RS-422 serial ports, high baud rate up to 115,200 bps, stable connection with Mitsubishi FX/Q series PLC and most mainstream brand controllers, strong compatibility.
  5. High Protection Performance

    Front panel reaches IP67 protection grade, dustproof and waterproof; rear side IP20, adapts to workshop dust, splash and other complex working conditions.
  6. Stable Storage & Easy Programming

    Built-in 1.5 MB flash memory for storing project files; supports GT Designer3 professional configuration software, simple screen editing and program downloading.
  7. Wide Environmental Adaptability

    Works stably in wide temperature and humidity range, no condensation operation allowed, suitable for factory continuous running scenarios.

3. Detailed Technical Parameters 📊

Icon: 📋

表格



Item Specification
Product Model GT1030-HBL (GOT1000 Series HMI)
Display Type 4.5-inch STN Monochrome LCD
Screen Resolution 288 × 96 dots (Horizontal)
Backlight Tri-color LED (Red / Green / Amber)
Touch Type Matrix Resistive Touch Panel
Max. Touch Keys 50 keys / screen
Communication Ports RS-232 (PC connection), RS-422 (PLC connection)
Max. Baud Rate 115,200 bps
Internal Memory 1.5 MB Flash Memory (Project storage)
Rated Power Supply DC 24 V
Overall Dimension (W×H×D) 145 mm × 76 mm × 29.5 mm
Panel Cut-out Size 137 mm × 66 mm
Weight 0.28 kg (Excluding mounting parts)
Protection Grade Front: IP67; Rear: IP20
Operating Temperature 0 °C ~ +50 °C
Storage Temperature -20 °C ~ +60 °C
Operating Humidity 10% ~ 90% RH (Non-condensing)
Touch Service Life ≥ 1,000,000 times
Display Service Life ≥ 50,000 hours
Programming Software GT Designer3 (V1.19V or higher version)
Compliance Standard ECER Industrial Equipment Regulation

4. Application Industries & Scenarios 🏭

Icon: 🏭

Main Applicable Industries

General machinery manufacturing, packaging machinery, food & beverage equipment, textile machinery, printing machinery, hydraulic & pneumatic equipment, small assembly lines, water treatment equipment and on-site distributed control systems.

Typical Application Scenarios

  1. Standalone Mechanical Control Cabinets

    Installed on small automated machines to realize manual operation, speed adjustment and running status monitoring.
  2. On-site Operator Stations

    Used for on-site parameter modification, production data viewing and fault prompt checking.
  3. Small Production Lines

    Matched with PLC to complete linkage control and centralized data display of multi-station equipment.
