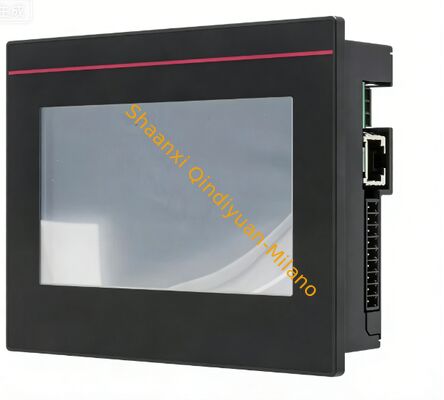

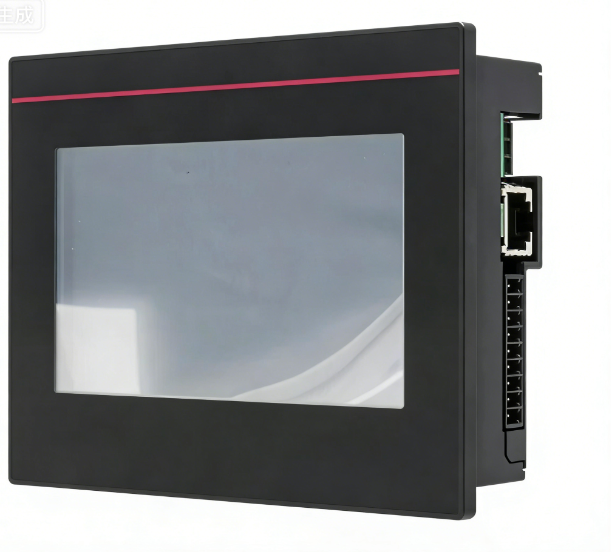

Mitsubishi GT1020-LBL Original Genuine HMI Touch Screen Operator Interface

Core Display & Touch

• Screen: 4.5-inch monochrome STN LCD, 288×96 pixels, high contrast for clear data visualization.
• Backlight: Tri-color (red/orange/green) LED backlight, long lifespan for 24/7 industrial use.
• Touch Panel: Matrix resistive type, responsive operation, supports up to 50 touch keys per screen; minimum key size 16×16 dots.
• Adjustability: 16-level contrast & 8-level display intensity settings for diverse lighting conditions.

Communication & Connectivity

• Ports: 9-pin D‑Sub male (RS‑232)+9‑pin D‑Sub female (RS‑422/RS‑485) for multi‑device linking.
• PLC Compatibility: Seamless communication with Mitsubishi PLCs (FX, Q, L series) for real‑time data exchange.
• PC Link: RS‑232/RS‑422/RS‑485 support for programming, data logging, and remote monitoring.

Memory & Performance

• Storage: 1.5 MB Flash memory for project files, data logs, and user programs.
• Processing: Efficient data handling for parameter setting, status monitoring, and alarm management.
• Stability: Robust anti‑interference design to maintain operation amid industrial electrical noise.

Physical & Environmental

• Dimensions: 145 mm (W) × 76 mm (H) × 29.5 mm (D), weight ~0.3 kg, easy to mount in space‑constrained panels.
• Protection: IP67 front (dust/water jet resistant), IP20 rear; suitable for factory floors and machine cabinets.
• Power: 24 VDC supply, low power consumption for energy efficiency in industrial setups.

Installation & Application

• Mounting: Flush panel installation, quick setup with standard cutouts.
• Use Cases: Automated production lines, packaging machines, material handling systems, and process control stations.
• Reliability: Engineered for long service life (MTBF compliant), vibration/shock resistant per industrial standards.
