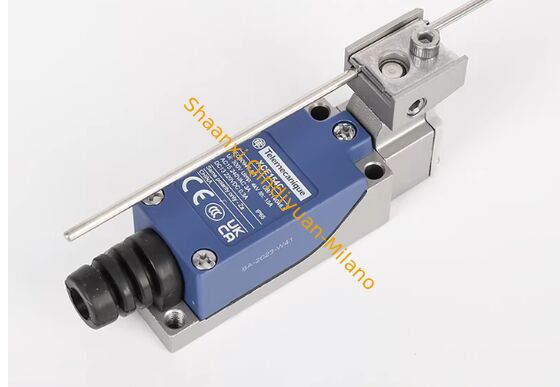

Schneider XCE103C Vertical Limit Switch 1NO 1NC IP65 Spring Return Industrial Travel Switch

1 pcs
MOQ
Negotiation
Price
Schneider XCE103C Vertical Limit Switch 1NO 1NC IP65 Spring Return Industrial Travel Switch
Features Gallery Product Description Chat Now
Features
Specifications
Weight: Approx.92g
Insulation Resistance: ＞100MΩ（＜500VDC）
Type: Mechanical/Electrical
Enclosurerating: IP65
Contactmaterial: Silver Alloy
Switching Current: 5A
Operating Ambient: -5℃~+65℃; ＜95%RH
Highlight:

Schneider vertical limit switch

,

Steel roller plunger limit switch

,

IP65 industrial travel switch
Basic Infomation
Brand Name: Schneider
Model Number: XCE103C
Payment & Shipping Terms
Delivery Time: 5-7 days
Payment Terms: T/T
Supply Ability: 10000 pcs
Product Description

Schneider XCE103C Vertical Limit Switch

Product Gallery

1. Product Overview

Model: XCE103C

Brand: Schneider Electric (Telemecanique Sensors)

Type: Vertical Spring Return Travel / Limit Switch
Belonging to Schneider OsiSense XC series, the XCE103C is a heavy-duty vertical limit switch designed for position detection, travel limitation and safety interlock in industrial automation. It features 1NO + 1NC contact configuration, IP65 ingress protection and stainless steel roller plunger with spring return (automatic reset) design. This switch delivers stable and precise performance for machine tools, conveyor systems and automated production lines under various working conditions.

2. Key Features

✅ 1NO + 1NC Dual Contacts

Equipped with one Normally Open and one Normally Closed independent contacts, supporting flexible circuit control and signal feedback for PLC and relay systems.
✅ Vertical Actuation & Spring Return

Vertical roller plunger design for straight-line actuation; the switch automatically resets to original position once external force is removed, ideal for repetitive motion scenarios.
✅ IP65 Protection Rating

Dust-tight and resistant to low-pressure water jets, perfectly adapted to harsh industrial environments with dust, moisture and splashing water.
✅ Durable Mechanical Structure

Industrial thermoplastic housing combined with metal actuator, anti-vibration and impact-resistant, with long mechanical service life up to 15 million operations.
✅ Snap Action & Fast Response

Precise snap action mechanism ensures quick and reliable switching, guaranteeing accurate position sensing.
✅ Compact & Easy Installation

Standard mounting structure with small footprint, easy to install and wire even in limited spaces. Supports cable diameter 6~9 mm.

3. Technical Specifications

Item Parameter
Model XCE103C
Contact Form 1NO + 1NC (1 Normally Open + 1 Normally Closed)
Actuator Type Stainless steel roller plunger, vertical actuation
Reset Mode Spring Return (Automatic Reset)
Protection Grade IP65
Rated Voltage AC/DC 12V ~ 240V
Rated Current 10A (Max)
Operating Temperature -25°C ~ +70°C
Mechanical Life 15 million cycles
Max Tripping Force 9 N
Connection Screw clamp terminals, cable gland for Ø6~9 mm cable
Housing Material Industrial thermoplastic + metal parts
Mounting Standard surface mounting

4. Main Applications

  • CNC machine tools and machining equipment
  • Conveyor belts, logistics and material handling systems
  • Packaging machinery, lifting and hoisting equipment
  • Automated assembly lines and robotic systems
  • Door/gate position limiting and safety protection systems

5. Packaging & After-sales Service

  • Package: Original Schneider individual box + outer carton
  • Warranty: 12 months warranty against manufacturing defects
  • Stock & Delivery: Large quantity in stock, support fast shipment and bulk orders
