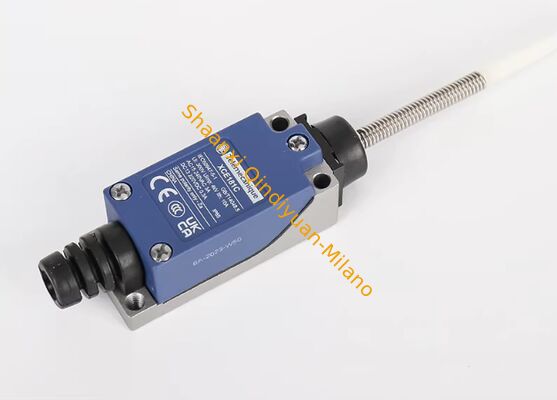

Schneider XCE154C Steel Round Rod Lever Bi-Directional Return Medium Duty Industrial Travel Switch

1 pcs
MOQ
Negotiation
Price
Schneider XCE154C Steel Round Rod Lever Bi-Directional Return Medium Duty Industrial Travel Switch
Features Gallery Product Description Chat Now
Features
Specifications
Protectionrating: IP65
Mountingtype: Panel/Surface Mount
Body Material: Die-cast Aluminum/Plastic
Weigth: Approx.22g
Installation: Flush / Non-flush
Operating Force: 0.5N To 5N
Certifications: CE, UL, RoHS
Application: Position Detection, Safety Interlock
Highlight:

Steel round rod limit switch

,

Bi-directional travel switch IP65

,

Medium duty lever limit switch
Basic Infomation
Brand Name: Schneider
Model Number: XCE154C
Payment & Shipping Terms
Delivery Time: 5-7 days
Payment Terms: T/T
Supply Ability: 10000 pcs
Product Description
Schneider XCE154C Steel Round Rod Lever Limit Switch
Product Gallery
1. Product Overview
Model: XCE154C
Brand: Schneider Electric (Telemecanique Sensors)
Type: Medium-duty Bi-Directional Return Industrial Travel / Limit Switch

Belonging to Schneider OsiSense XC series, the XCE154C is a robust industrial limit switch designed for medium-load applications. It is equipped with a Φ3mm steel round rod lever and features bi-directional spring return, enabling actuation and automatic reset from two lateral directions. With standard 1NO + 1NC contact configuration and IP65 ingress protection, this switch delivers stable and reliable position detection, travel limitation and safety interlock performance for various industrial machinery and automated systems.

2. Key Features
✅ Steel Round Rod Lever (Φ3mm)

High-strength cold-rolled steel round rod lever ensures excellent rigidity, wear resistance and long service life, suitable for frequent mechanical collision and actuation.

✅ Bi-Directional Spring Return

Supports two-way lateral actuation and automatic reset by built-in spring after force removal, ideal for reciprocating and multi-directional motion equipment.

✅ 1NO + 1NC Dual Contacts

Integrated one Normally Open and one Normally Closed independent contacts, flexible for circuit control and signal feedback with PLC, relay and other control units.

✅ IP65 Protection Rating

Dust-tight and resistant to low-pressure water jets, perfectly works in harsh environments with dust, moisture and water splashing.

✅ Snap Action & Stable Performance

Precise snap action mechanism guarantees fast and consistent switching action; maximum operating rate reaches 120 cycles per minute.

✅ Durable Structure & Long Lifespan

Combination of industrial thermoplastic housing and metal parts, anti-vibration and impact-resistant. Mechanical life up to 15 million cycles.

✅ Easy Installation & Wiring

Standard surface mounting structure with compact size. Screw-clamp terminals fit 1*1.5mm² wires; flexible rubber cable gland supports cable diameter 6~9mm.

3. Technical Specifications
ItemParameter
ModelXCE154C
Contact Form1NO + 1NC (1 Normally Open + 1 Normally Closed)
Actuator TypeΦ3mm steel round rod lever, rotary head
Operation ModeBi-directional lateral actuation
Reset TypeSpring Return (Automatic Reset)
Protection GradeIP65
Rated VoltageAC 12V~240V; DC 12V~220V
Rated CurrentIth=10A; AC Ie=3A; DC Ie=0.3A
Max Tripping Force7.5 N
Operating Rate120 cycles per minute
Operating Temperature-25°C ~ +70°C
Mechanical Life15 million cycles
Terminal TypeScrew clamp (1*1.5mm²)
Cable EntryRubber gland for Ø6~9mm cable
Housing MaterialIndustrial thermoplastic + metal components
Dimension68.5 * 28 * 25 mm
WeightApprox. 181g
4. Main Applications
  • CNC machine tools and general industrial machinery
  • Conveyor systems, logistics and material handling equipment
  • Packaging machines, lifting and hoisting devices
  • Automated assembly lines and robotic equipment
  • Door, gate and safety protection interlock systems
  • Medium-duty industrial equipment with bi-directional reciprocating motion
5. Packaging & After-sales Service
  • Package: Original Schneider individual box + outer export carton
  • Warranty: 12 months warranty against manufacturing defects
  • Stock & Delivery: Large quantity in stock, support fast shipment and bulk OEM orders
