Product Datasheet: MITSUBISHI GT2103-PMBLS Industrial Touch Screen HMI

Compliance Declaration

1. Product Overview ⚙️

MITSUBISHI GT2103-PMBLS GOT2000 GT21 Series Compact Industrial Human Machine Interface

2. Core Advantages & Key Features ✅

1. Ultra-Compact 3.8-inch Monochrome TFT Display


   3.8-inch horizontal TFT monochrome screen with 320 × 128 resolution, supporting 32 grayscale levels; multi-color switchable LED backlight (white/green/red/orange/pink) to distinguish equipment running, standby and fault status visually.
2. Super High Front Protection Grade IP67F


   Front panel IP67F dust & splash waterproof rating, no extra protective cover required for cabinet door installation, suitable for harsh workshop environment with frequent equipment cleaning.
3. Low Power DC5V Bus Power Supply


   Supplied by DC 5V power, max power consumption ≤1.1W; can draw power directly from Mitsubishi Q/L/FX series PLC backplane without separate 24V power supply unit, saving cabinet layout space.
4. Multiple Built-in Communication Interfaces


   Integrated RS422, Mini-B USB Device port and SD card slot; native communication with all Mitsubishi PLCs via MC Protocol, supports offline program upload/download and recipe storage via SD card (max 32GB).
5. Durable Analog Resistive Touch Panel


   Single-point resistive touch with service life over 1 million taps, stable operation under dusty, humid workshop conditions, supports small-size touch buttons for compact screen layout.
6. Lightweight & Thin Body Flush Mount Design


   Ultra-thin 27mm depth housing, small cabinet cut-out size, perfect for small machinery such as packaging auxiliary devices, lab test equipment and miniature processing machines.
7. Basic Industrial HMI Functional Library Embedded


   Built-in alarm log, counter, timer, multi-level password authority lock and simple script functions, meets all basic monitoring and operation demands of small automation lines.
8. Full Compatibility with Mitsubishi Automation Ecosystem


   Seamless connection with Q03UDVCPU, QH42P, Q64DAH Q-series PLC modules and Danfoss FC series frequency converters, unified programming via GT Works3 software.

3. Complete Technical Specifications

4. Applicable Industries & Typical Scenarios 📊

Core Applicable Industries

1. Mini Food & Beverage Auxiliary Packaging Machinery
2. Small Plastic Injection Molding Auxiliary Equipment
3. Laboratory Testing & Mixing Equipment
4. Light Industry Textile Winding Small Machines
5. Compact Logistics Conveying Sorting Devices
6. Small Water Treatment Pump Control Panels
7. Precision Electronic Assembly Station Equipment
8. General OEM Compact Processing Machine Tools

Typical Application Scenario Descriptions

1. Auxiliary packaging machine operation terminal: Display material counting, conveyor running status, trigger red backlight alarm for material shortage or equipment jam.
2. Lab mixing & test equipment control panel: Set mixing speed and timing parameters, record operation cycle data stored on SD card.
3. Small injection molding auxiliary chiller pump monitor: Real-time display water temperature, switch green standby / red fault backlight automatically.
4. Mini electronic assembly station: Simple manual operation switch, production yield counter and equipment fault reminder with password authority management.

Layout Matching Image & Icon Tags

1. Application Scenario Graphic 1: Compact Small Packaging Machine Control Cabinet


   Icon Mark: 📦 Mini OEM Packaging Equipment
2. Application Scenario Graphic 2: Laboratory Test Automation Equipment Terminal


   Icon Mark: 🔬 Precision Lab Processing Machinery
3. Warehouse Stock Photo: Original Mitsubishi GOT GT21 Series HMI Storage Rack


   Icon Mark: 📦 Industrial HMI Components Warehouse

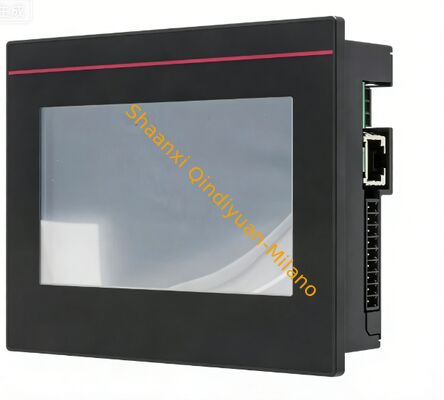

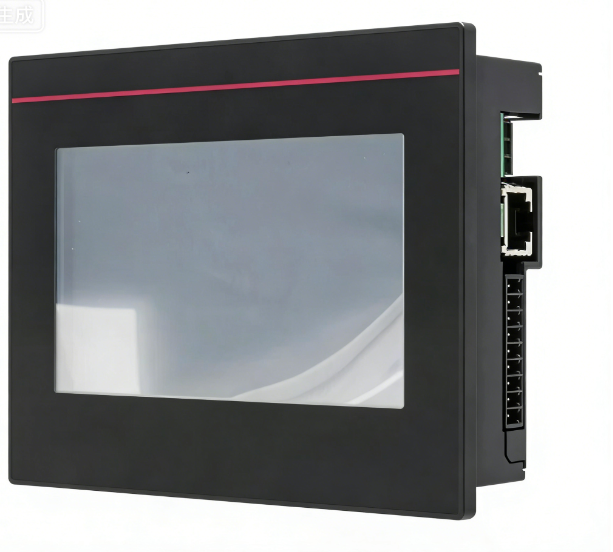

4. Product Outline Graphic: GT2103-PMBLS Touch Screen Physical Diagram
