Product Datasheet: MITSUBISHI GS2107-WTBD Industrial Touch Screen HMI

Compliance Statement

1. Product Overview ⚙️

MITSUBISHI GS2107-WTBD GOT SIMPLE Series 7-inch Industrial Human Machine Interface

2. Core Advantages & Key Features ✅

1. High-Definition 7-inch WVGA Color Display


   7-inch wide TFT LCD screen with 800 × 480 resolution, supporting 65536 display colors; analog resistive touch panel delivers stable sensitive operation, clear visualization of complex flow charts, alarm logs and production data.
2. Multi-Channel Built-In Communication Interfaces


   Integrated Ethernet, RS422/485, RS232, USB Host and SD card slot, supporting one-stop connection with PLC, frequency converters, printers and upper PCs; compatible with MC Protocol, Modbus RTU/TCP, CC-Link IE Basic.
3. IP65F Front Panel Industrial Protection


   Front face complies with IP65F dust and splash water resistance standard, resisting cutting fluid, dust and cleaning water splashes on production lines, no extra protective cover required for cabinet door installation.
4. Large Local Storage & Convenient Data Export


   15MB built-in flash memory for storing project programs, alarm records and production recipes; SD card slot supports offline program upload/download, batch recipe import/export without PC connection.
5. Powerful On-Board Functional Library


   Built-in alarm logging, trend curve, user authority password lock, timer/counter and recipe management functions; embedded simple script logic to reduce PLC programming workload.
6. Full Compatibility with Mitsubishi Automation Ecosystem


   Plug-and-play linkage with Q03UDVCPU, QH42P, Q64DAH Q-series PLC modules and Danfoss FC series inverters, seamless data reading and parameter adjustment across the whole control system.
7. Stable Low-Power DC Operation


   24VDC wide-range power supply design, low power consumption ≤7.6W; supports 5ms instantaneous power failure tolerance to avoid abnormal shutdown during voltage fluctuation.
8. Easy Program Commissioning


   Supports GT Works3 configuration software, one-click project simulation and online monitoring; USB port realizes fast program download without separate communication cables.

3. Complete Technical Specifications

4. Applicable Industries & Typical Scenarios 📊

Core Applicable Industries

1. Food & Beverage Automated Packaging Machinery
2. Plastic Injection & Extrusion Auxiliary Equipment
3. Automotive Component Assembly Lines
4. Logistics Conveying & Sorting Automation
5. Water Treatment & HVAC Pump/Fan Control Systems
6. Precision Electronic Assembly Equipment
7. Textile Winding & Printing Production Lines
8. General OEM Small Processing Machine Tools

Typical Application Scenario Descriptions

1. Packaging machine central operation panel: Real-time monitoring of conveyor speed, clamping cylinder status and material counting; one-touch switch between manual and automatic running modes.
2. Water treatment pump & fan control terminal: Displays real-time flow, pressure trend curves, records equipment operation hours and triggers visual/audible alarms for abnormal values.
3. Injection molding auxiliary equipment monitoring: Adjust temperature, pressure and inverter speed parameters locally, store multi-set mold production recipes via SD card.
4. Electronic assembly station HMI: Real-time display production yield, fault alarm records and equipment maintenance reminders, with multi-level operator authority management.

Layout Matching Image & Icon Tags

1. Application Scenario Graphic 1: Automated Packaging Machine Control Cabinet


   Icon Mark: 📦 Packaging Industrial Equipment Operation Panel
2. Application Scenario Graphic 2: Water Treatment Pump Process Monitoring Terminal


   Icon Mark: 🏭 Fluid & HVAC Automation System
3. Warehouse Stock Photo: Original Mitsubishi GOT Series HMI Finished Goods Storage Rack


   Icon Mark: 📦 Industrial Automation HMI Warehouse Storage

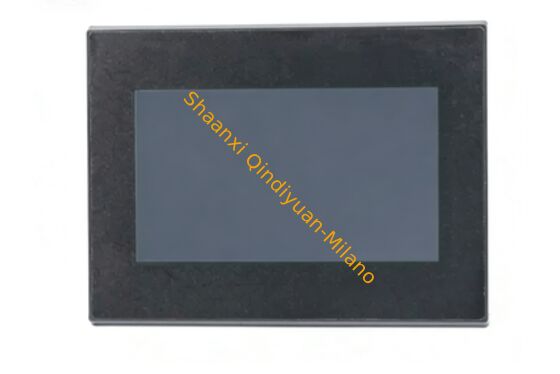

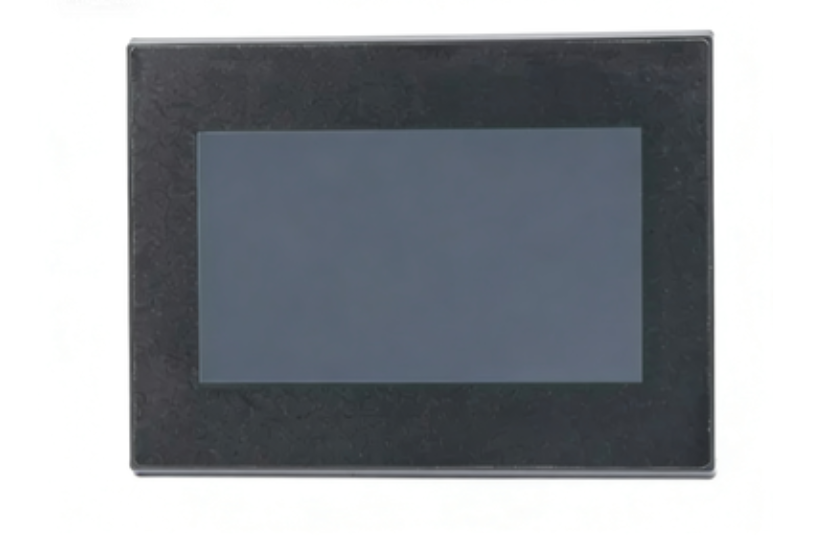

4. Product Physical Graphic: GS2107-WTBD Touch Screen Outline Drawing


   Icon Mark: ⚙️ MITSUBISHI GS2107-WTBD HMI Appearance
