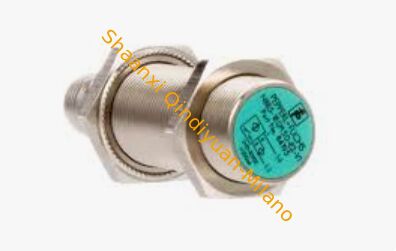

PEPPERL+FUCHS NBB5-18GM50-E2 Inductive Proximity Sensor with IP67 IP68 Protection 5 mm Detection Distance and 1950 Hz Switching Frequency

1 pcs
MOQ
Negotiable
Price
PEPPERL+FUCHS NBB5-18GM50-E2 Inductive Proximity Sensor with IP67 IP68 Protection 5 mm Detection Distance and 1950 Hz Switching Frequency
Features Gallery Product Description Chat Now
Features
Specifications
Control Type: Programmable Logic Controller (PLC)
Softwarecompatibility: Supports SCADA And HMI Software
Applicationindustry: Manufacturing, Process Control, Robotics
Power Supply: 24V DC / 110V AC / 220V AC
Actual Value: Negotiabled Price
Scalability: Modular Expansion Supported
Productname: Industrial Control Automation
Powersupply: 24V DC / 110V AC / 220V AC
Safetystandardscompliance: IEC 61508, ISO 13849
Warranty: 1 To 3 Years
Output Type: Digital And Analog Outputs
Safetystandards: IEC 61508, ISO 13849
Mounting Type: DIN Rail / Panel Mount
Point: 14 (8DI+6DO)
Part No: 200-595-072-122 VM600 CPUM
Weight: 500 Grams
Output Points: 16DO
Programminglanguage: Ladder Logic, Function Block Diagram
Output Typt: Relay
Industry: Manufacturing
Outputvoltage: 24V DC
Controltype: Programmable Logic Controller (PLC)
Application: Manufacturing And Process Control
Inputvoltage: 24V DC / 110V AC / 220V AC
Power Supply Voltage: 100 – 240VAC.
Mountingtype: DIN Rail / Panel Mount
Managementinterface: Web GUI, SNMP, CLI
Operatingtemperature: -20°C To 60°C
Compatibility: SCADA Systems, HMI Panels
Mounting: DIN Rail / Panel Mount
Powerconsumption: Varies By Model, Typically 10W To 100W
Warrantyperiod: 1 To 3 Years
Communicationprotocols: Modbus, Profibus, Ethernet/IP, OPC UA
Type: Automation System
Highlight:

PEPPERL+FUCHS inductive proximity sensor

,

NBB5-18GM50-E2 industrial sensor

,

18mm inductive proximity sensor
Basic Infomation
Brand Name: PEPPERL+FUCHS
Model Number: NBB5-18GM50-E2
Payment & Shipping Terms
Delivery Time: 5-7 days
Payment Terms: T/T
Supply Ability: 1000 pcs
Product Description
I. Basic Information
1. Brand/Series: Pepperl+Fuchs, Basic Type
2. Type: 3-wire DC PNP Normally Open (NO) Inductive Proximity Sensor
3. Mounting Method: Flush, M18*1 Thread
4. Connection Method: 2m PVC cable (3 cores, 0.34 mm²); V1 suffix model with M12 connector also available
5. Dimensions: Diameter 18 mm, Length 56 mm
6. Weight: 112 g
7. Protection Rating: IP67, IP68, IP65/IP66
II. Electrical Parameters
Parameters Specifications
Operating Voltage 6～36 V DC (standard 10～30 V DC)
Output Current 0～200 mA
Voltage Drop ≤1 V
No-load Current ≤10 mA
Leakage Current max 20 μA
Switching Frequency Up to 1950 Hz
Protection Functions Reverse polarity protection, pulse short circuit protection
Status Indicator Yellow LED
III. Detection and Environmental Parameters
1. Rated Detection Distance: 5 mm; Reliable Detection Distance: 0～4.05 mm
2. Material Attenuation Coefficient: rAl=0.35, rCu=0.29, r304 Stainless Steel = 0.73, r Brass = 0.44 (based on mild steel)
3. Ambient Temperature: -40℃～+85℃ (same for storage)
4. Housing Material: Brass plated with white bronze; Sensing Surface PBT (green)
5. Certifications: Compliant with IEC/EN 60947-5-2, UL/cULus, DNV GL Classification Society Certification
IV. Application Scenarios and Selection Tips
1. Applicable Scenarios: Metal workpiece positioning/limiting in machine tools, conveyor lines, packaging equipment, and automotive production lines; resistant to oil, dust, and humid environments.
2. Selection Criteria
  • Suffix -V1: M12 plug connection (no cable)
  • Suffix -5M: 5m long cable
  • E0/E1/E2: E2 corresponds to PNP output; E0/E1 is usually NPN
3. Wiring: 3-wire system (brown +, blue -, black signal output); reverse polarity is strictly prohibited; shielding and grounding are recommended for long cables.
