Home /Products/Industrial Control Automation/PEPPERL+FUCHS NBB15-30GM40-Z0 Industrial Control Automation Proximity Sensor

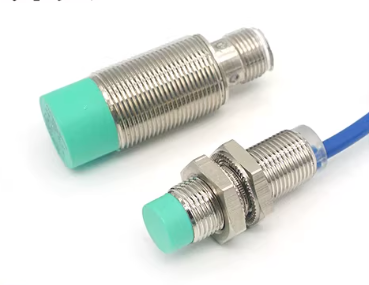

PEPPERL+FUCHS NBB15-30GM40-Z0 Industrial Control Automation Proximity Sensor

1 pcs
MOQ
Negotiable
Price
PEPPERL+FUCHS NBB15-30GM40-Z0 Industrial Control Automation Proximity Sensor
Features Gallery Product Description Chat Now
Features
Specifications
Control Type: Programmable Logic Controller (PLC)
Softwarecompatibility: Supports SCADA And HMI Software
Applicationindustry: Manufacturing, Process Control, Robotics
Power Supply: 24V DC / 110V AC / 220V AC
Actual Value: Negotiabled Price
Scalability: Modular Expansion Supported
Productname: Industrial Control Automation
Powersupply: 24V DC / 110V AC / 220V AC
Safetystandardscompliance: IEC 61508, ISO 13849
Warranty: 1 To 3 Years
Output Type: Digital And Analog Outputs
Safetystandards: IEC 61508, ISO 13849
Mounting Type: DIN Rail / Panel Mount
Point: 14 (8DI+6DO)
Part No: 200-595-072-122 VM600 CPUM
Highlight:

PEPPERL+FUCHS proximity sensor

,

industrial automation proximity sensor

,

NBB15-30GM40-Z0 sensor with warranty
Basic Infomation
Brand Name: PEPPERL+FUCHS
Model Number: NBB15-30GM40-Z0
Payment & Shipping Terms
Delivery Time: 5-7 days
Payment Terms: T/T
Supply Ability: 1000 pcs
Product Description
Basic Information
Type:
Cylindrical thread inductive proximity sensor, DC two-wire normally open (NO)
Thread/Size:
M30*1.5, Length 40 mm, non-flush mounting (cannot be fully embedded in metal)
Cable Type:
2 m gray PVC cable (wire diameter 4.8±0.2 mm, core cross-sectional area 0.34 mm²)
Housing:
Nickel-plated brass; Sensing surface: PBT; Protection rating: IP67
Operating Temperature:
-25°C to +70°C; Status Indicator: Yellow omnidirectional LED
Distinguishing Features:
Same series model as NBN15-30GM40-Z0-V1 (connector version), with the same detection distance but different cable routing.
Electrical Parameters
Operating Voltage:
5～60 V DC
Rated Detection Distance sn:
15 mm; Reliable Operating Range sa: 0～12.2 mm; Typical Actual Distance: 13.5～16.5 mm
Output:
Two-wire DC, normally open (NO); Operating Current 2～100 mA; Leakage current ≤0.5 mA; Voltage drop ≤5 V
Switching frequency:
0～150 Hz; Hysteresis approx. 5%
Protection:
Reverse polarity protection, pulse short circuit protection
Metal attenuation coefficient:
Aluminum 0.4; Copper 0.35; 304 Stainless Steel 0.7
Certifications and Compliance
Complies with:
IEC/EN 60947-5-2, with cULus, cCSAus, and CCC certifications; RoHS compliant; complete CE marking.
Ordering and Logistics Information
Order number:
088214;
EAN:
4050143006434
Gross weight (including packaging):
approx. 0.16 kg
Customs code:
8536508090
Applicable scenarios:
  • Conveyor line positioning
  • Machine tool chuck detection
  • Metal parts counting
  • Equipment limit
