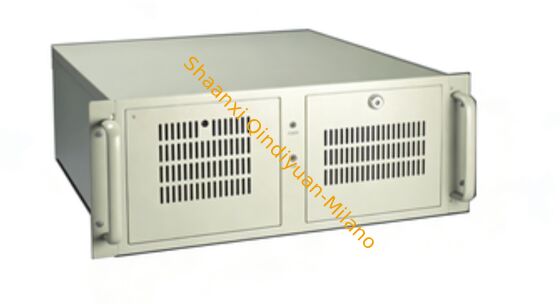

Advantech 610/706VG/i5-8500/16G/512G/1T Industrial computer module

1
MOQ
Negotiable
Price
Advantech 610/706VG/i5-8500/16G/512G/1T Industrial computer module
Features Gallery Product Description Chat Now
Features
Specifications
Operating Temperature: -40°C To 75°C
Total Points: 60 Points.
Port Speed: 10/100/1000 Mbps
Application: Oil And Gas Factory
Enclosure Material: Aluminum Alloy With IP40/IP67 Protection
Actual Price: Based On Offer
Datatransferrate: 10/100/1000 Mbps
Highlight:

Advantech industrial computer module

,

610/706VG industrial computer

,

i5-8500 industrial PC
Basic Infomation
Place of Origin: china
Brand Name: Advantech
Model Number: 610/706VG/i5-8500/16G/512G/1T
Document: ipc-610mb-l_ds.pdf
Payment & Shipping Terms
Packaging Details: pieces
Delivery Time: 5-8days
Payment Terms: T/T
Product Description

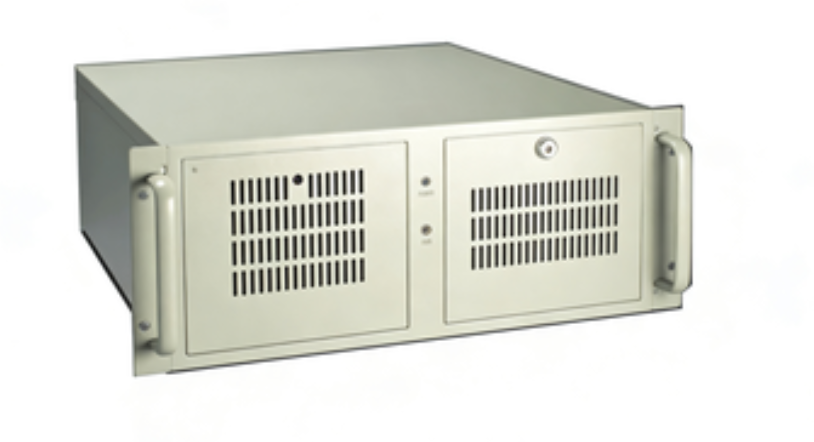

Advantech IPC-610 Industrial Computer (Configuration: 706VG/i5-8500/16G/512G SSD/1T HDD)

Standard Model: IPC-610MB-706VG | Brand: Advantech (Taiwan, China) | Warranty: 2 Years Global Manufacturer Warranty

Product Overview

The Advantech IPC-610/706VG/i5-8500 is a classic 4U rack-mountable industrial computer designed for 24/7 uninterrupted operation in harsh industrial environments. It combines the industry-proven IPC-610 chassis with the AIMB-706VG industrial motherboard powered by 8th Generation Intel Core i5 processor. This configuration delivers balanced computing performance, excellent expandability and exceptional reliability, making it the ideal choice for industrial automation, machine vision, data acquisition and control systems.

Key Advantages & Core Features

  • Industrial-Grade Reliability: Designed for continuous operation in 0-50°C temperature range, with anti-vibration and anti-shock construction
  • Rich Expansion Capability: 7 expansion slots (5 PCI + 1 PCIe x16 + 1 PCIe x4) to support various industrial add-on cards
  • Dual Storage Solution: 512GB SSD for fast system boot and application loading + 1TB HDD for large data storage
  • Stable Power System: Industrial-grade 250W ATX power supply with over-voltage, over-current and short-circuit protection
  • Easy Maintenance: Front-accessible drive bays and modular design for quick component replacement
  • Comprehensive I/O Interfaces: Multiple USB, serial and Ethernet ports to connect all industrial peripherals
  • Global Compliance: CE, FCC, RoHS, UL certified, meets international industrial standards

Technical Specifications

System Configuration

表格



Parameter Value
Chassis IPC-610MB-L 4U 19" Rack-mount Chassis
Motherboard AIMB-706VG (Intel H310 Chipset)
Processor Intel Core i5-8500 (6 Cores / 6 Threads, 3.0GHz Base, 4.1GHz Turbo, 9MB Cache)
Memory 16GB DDR4 2666MHz (2 x 8GB, Dual Channel, Max. 64GB)
Storage 512GB SATA III SSD + 1TB 3.5" SATA HDD (4 Drive Bays Total)
Graphics Intel UHD Graphics 630, VGA Output (Max. 1920x1200 @ 60Hz)
Network 1 x Intel I219-V Gigabit Ethernet Port

I/O Interfaces

表格



Interface Type Quantity
USB 3.1 Gen 1 4 (2 Front, 2 Rear)
USB 2.0 5 (2 Front, 3 Rear)
Serial Port (RS-232) 2 (Rear)
VGA 1 (Rear)
Audio Line-out, Mic-in (Rear)
PS/2 Keyboard + Mouse (Rear)

Expansion Slots

表格



Slot Type Quantity
PCI 5
PCIe x16 (Gen 3) 1
PCIe x4 (Gen 2) 1

Environmental & Physical

表格



Parameter Value
Power Supply 250W Industrial ATX Power Supply (100-240V AC)
Operating Temperature 0°C to +50°C
Storage Temperature -20°C to +60°C
Relative Humidity 10% to 90% (Non-condensing)
Dimensions 482mm (W) x 177mm (H) x 480mm (D)
Net Weight Approximately 20kg
Mounting 19" Standard Rack Mount

Application Industries & Scenarios

The IPC-610 series is the most widely used industrial computer in the world, suitable for:

Industrial Automation

  • PLC control systems
  • Data acquisition and monitoring (SCADA)
  • Production line control
  • Factory automation

Machine Vision

  • Product defect inspection
  • Precision positioning and guidance
  • Optical character recognition (OCR)
  • Barcode and QR code scanning

Intelligent Transportation

  • Traffic signal control
  • Highway toll collection systems
  • Video surveillance and recording
  • Vehicle detection systems

Energy & Utilities

  • Power substation monitoring
  • Water treatment control systems
  • Oil and gas pipeline monitoring
  • Renewable energy management

Other Applications

  • Medical equipment control
  • Building automation
  • Telecommunications
  • Aerospace and defense

Procurement Information

  • 2026 June Price: Approximately ¥6,800-7,500 (13% VAT included, delivered to Xianyang)
  • Lead Time: 1-3 days (domestic stock available)
  • Customization: Memory, storage, power supply and expansion cards can be customized according to requirements
  • Accessories: Optional keyboard, mouse, monitor and operating system (Windows 10 IoT Enterprise)
